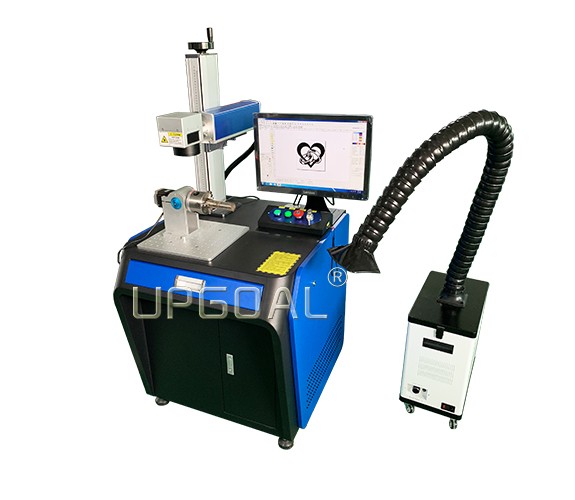

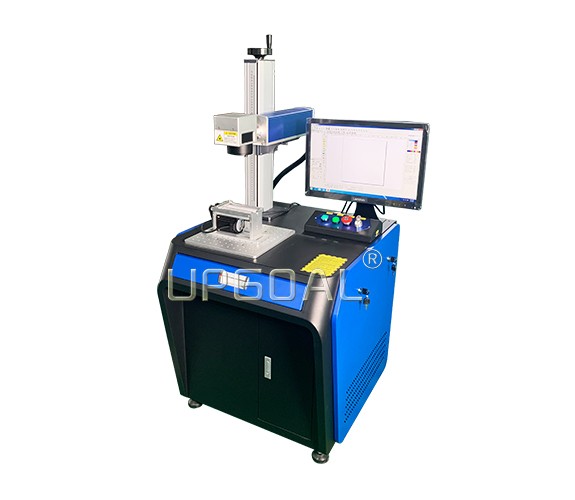

Hot Sale 50W Fiber Laser Marking Machine with Rotary Axis/3D Platform

Brief Introduction:

Model: UG-50FM
50W Racus fiber laser
200*200mm marking area
Original EzCad software
Both roller & chuck type rotary axis
3D platform

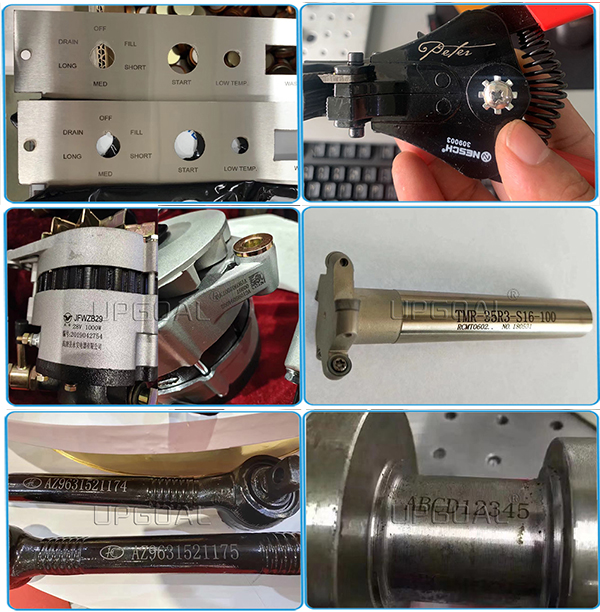

Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component,  hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.


1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of Raycus 50W fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.

2. With Famous SINO-GALVO 2206 serious galvanometer  &  Wavelength brand, F-THETA scanning lengthFiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.

3. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.

4. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.

5. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.

6. One piece design of control cabinet and marking table, small cover area.

7. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.

8. Double red dot positioning , no need meausre the material with focus rulter, conveineint for operation.

9. Marked graph and characters is permanent , will not regression  due to friction.

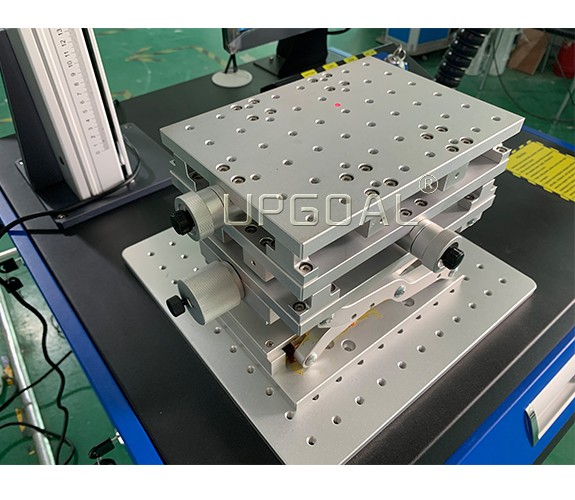

10. 3D platform, XYZ three direction moving, no need move the material by manual, improving marking precision.

11. With Lenovo English windows 7/10 desktop computer, stable working.

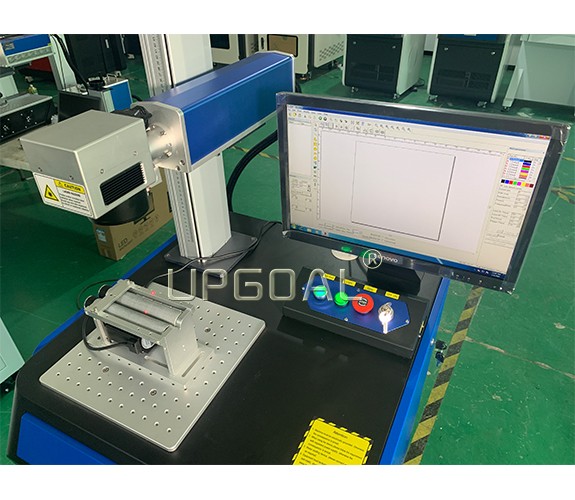

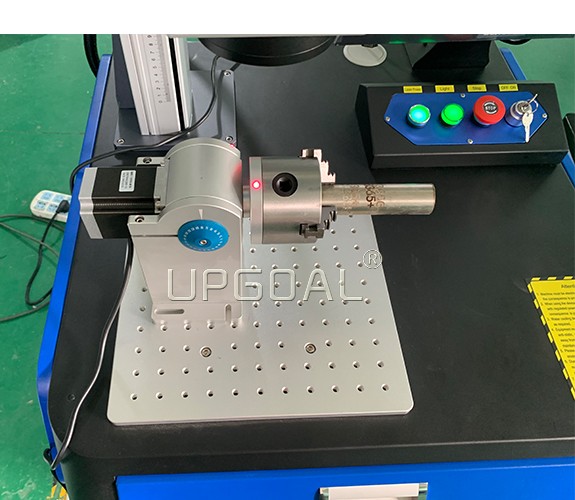

12. With both chuck and roller type rotary axis for all kinds of cylinder marking.

13.Equipped with smoke purifier( Conyson brand, 100W), with 3 layers purification, net filtration: 0.3um99.99%, the universal slub tube can be bent and adjusted at 360 degrees at will, with good supporting effect, high temperature resistance, good airtightness, and resistance to aging. High temperature resistant silicone cover, air volume regulating valve, large smoking area, good effect. Smart chip, block alarm.

Laser type

Fiber laser

Maximum output laser power

50WRaycus, China, QB series

Wave length of laser


Marking scope


Laser sources

Fiber module

Laser Head

High speed scanning head

The minimum focus facula diameter


Minimal character



Double red dot

Vertical shaft lifting height


Control system

Original EzCad controller with USB port( 3 axis)

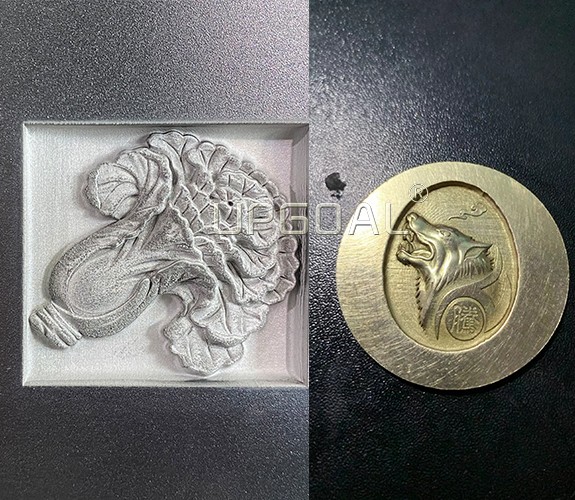

Marking depth

0.01-5mm( depends on different materials)

Marking line width


Marking speed


Laser repetition frequency



High speed digital galvanometer SINO-GALVO, SG2206)

Filed lens

Scanning lens( Wavelength brand, F-THETA)

Smoke purifier

Conyson brand, 100W, with 3 layers purification, net filtration: 0.3um99.99%

Rotary axis

Both chuck and roller type


Desktop, Lenovo, English

Cooling method

Air Cooling

Power supply

AC 220V/110V, 50/60Hz, single phase

Support format


Process Material

All kinds of metal and part of non-metal materials( opque acrylic/plastic)
