Brief Introduction:
Model: UG-50FM
50W Raycus fiber laser
200*200mm marking area
Auto focusing galvanometer
Rotary ais
3D platform
Smoke purifier
Applications

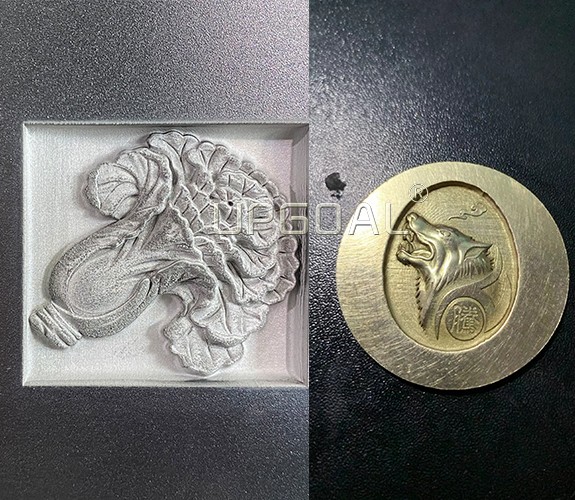

Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.
Features
1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of Raycus 50W fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.
2. With Famous SINO-GALVO AF2206-600 serious galvanometer & Wavelength brand, F-THETA scanning lengthFiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area. The galvanometer is automatic focusing type, just press button, then can realize auto focusing, no need measure material thickness and control by software, convenient and easy to operate.
3. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.
4. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.
5. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.
6. One piece design of control cabinet and marking table, small cover area.
7. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.
8. Double red dot positioning , no need meausre the material with focus rulter, conveineint for operation.
9. Marked graph and characters is permanent , will not regression due to friction.
10. 3D platform, XYZ three direction moving, no need move the material by manual, improving marking precision
11. With chuck type rotary axis for all kinds of cylinder marking.
12.Equipped with smoke purifier( Conyson brand, 100W), with 3 layers purification, net filtration: 0.3um99.99%, the universal slub tube can be bent and adjusted at 360 degrees at will, with good supporting effect, high temperature resistance, good airtightness, and resistance to aging. High temperature resistant silicone cover, air volume regulating valve, large smoking area, good effect. Smart chip, block alarm.
Laser type | Fiber laser |
Maximum output laser power | 50WRaycus, China, QB series |
Wave length of laser | 1064nm |
Marking scope | 200*200mm |
Laser sources | Fiber module |
Laser Head | High speed scanning head |
The minimum focus facula diameter | 20μm |
Minimal character | 0.01mm |
Positioning | Double red dot |
Vertical shaft lifting height | 700mm |
Control system | Original EzCad controller with USB port( 3 axis) |
Marking depth | 0.01-5mm( depends on different materials) |
Marking line width | 0.01-0.1mm |
Marking speed | ≤7000mm/s |
Laser repetition frequency | 20kHz~80kHz |
Galvanometer | High speed digital galvanometer (SINO-GALVO, AF2206-600), auto focusing type |
Filed lens | Scanning lens( F-THETA, F=290mm) |
Smoke purifier | Conyson brand, 100W, with 3 layers purification, net filtration: 0.3um99.99% |
Rotary axis | Chuck type, diameter 80mm |
Computer | Optional |
Cooling method | Air Cooling |
Power supply | AC 220V/110V, 50/60Hz, single phase |
Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
Process Material | All kinds of metal and part of non-metal materials( opque acrylic/plastic) |
Certificate | CE/FDA |
