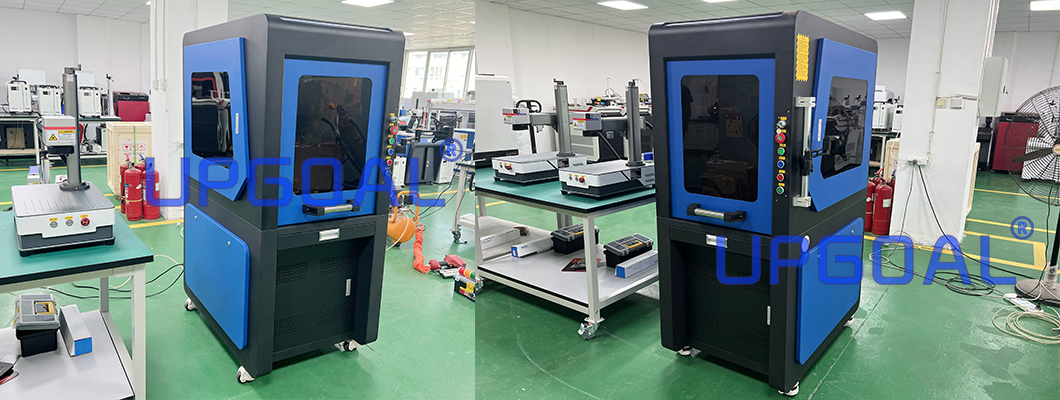

50W Automatic Focusing Full Enclosed Fiber Laser Marking Machine

Brief Introduction:

Model: UG-50FM
RayCus 50W fiber laser source
Auto focusing, automatic Z up and down
Original EzCad software
700mm lifting height

INQUIRY NOW

Applications

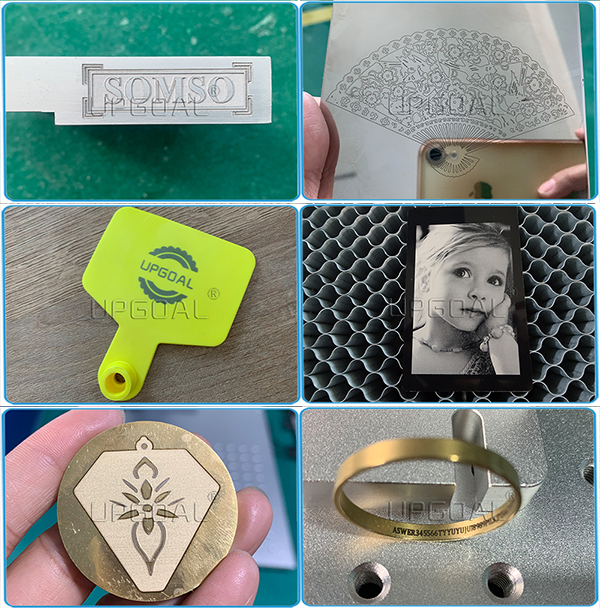

Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component,  hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.


Features

1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of Raycus 50W fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.

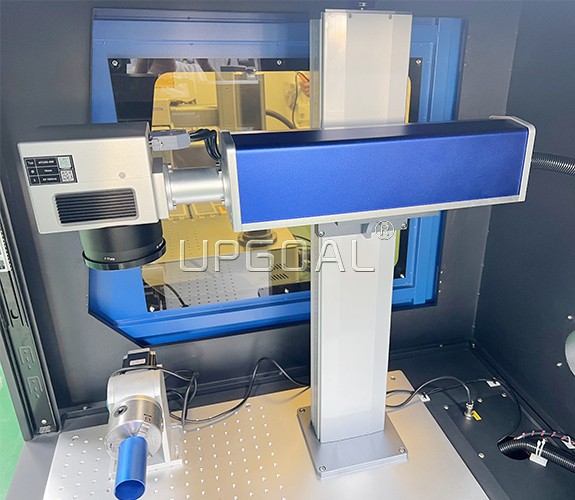

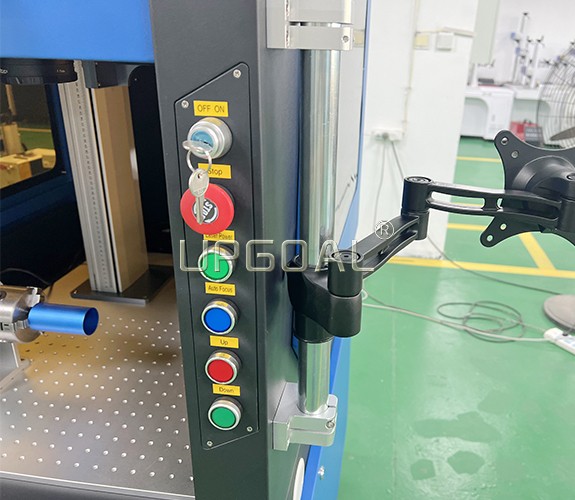

2. With Famous SINO-GALVO AF2206-600 serious galvanometer  &  Wavelength brand, F-THETA scanning lens. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area. The galvanometer is automatic focusing type, just press button, then can realize auto focusing, no need measure material thickness and control by software, convenient and easy to operate.

3. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.

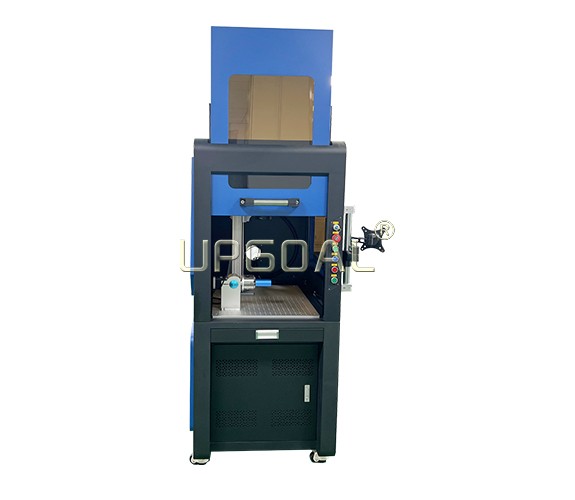

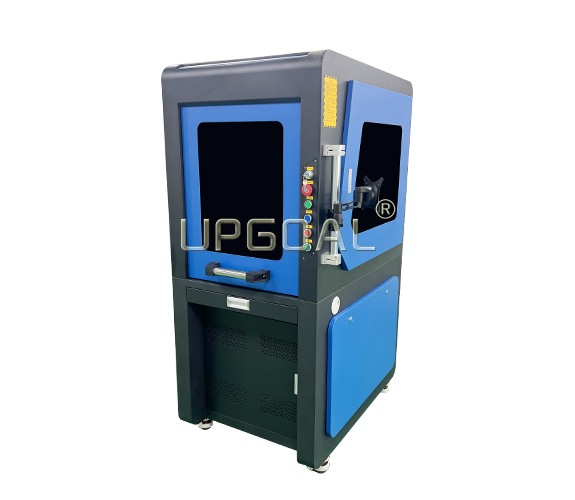

4.Full enclosed protection case, keep safty marking and machine cleaning

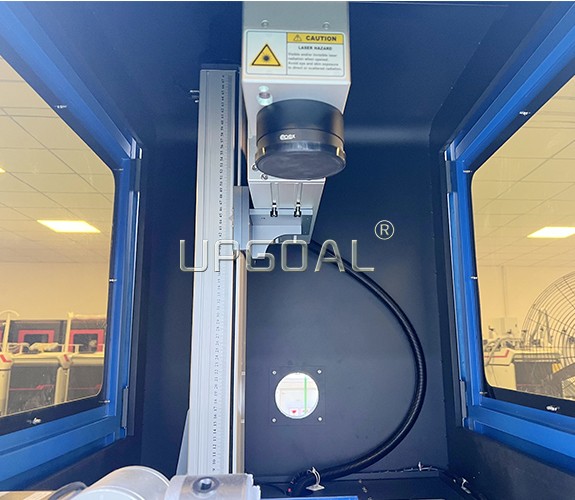

5. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.

6. Double red dot positioning , no need meausre the material with focus rulter, conveineint for operation.

7. Marked graph and characters is permanent , will not regression  due to friction.

8. With rotary axis for all kinds of cylinder marking.

9. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.

10. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.



Laser type

Fiber laser

Maximum output laser power

50W, Raycus, China, QB series

Wave length of laser

1064nm

Marking scope

200*200mm

Laser sources

Fiber module

Laser Head

High speed scanning head

The minimum focus facula diameter

20μm

Minimal character

0.01mm

Positioning

Double red dot

Vertical shaft lifting height

700mm

Control system

Original EzCad controller with USB port( 3 axis)

Marking depth

0.01-5mm( depends on different materials)

Marking line width

0.01-0.1mm

Marking speed

≤7000mm/s

Laser repetition frequency

20kHz~80kHz

Galvanometer

High speed digital galvanometer (SINO-GALVO, AF2206-600), auto focusing type

Filed lens

Scanning lens( F-THETA, F=290mm)

Rotary axis

Chuck type, diameter 80mm

Computer

Optional

Cooling method

Air Cooling

Power supply

AC 220V/110V, 50/60Hz, single phase

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Process Material

All kinds of metal and part of non-metal materials( opque acrylic/plastic)

Certificate

CE/FDA
