Fiber Laser Marking Machine
Fiber Laser Marking Machine

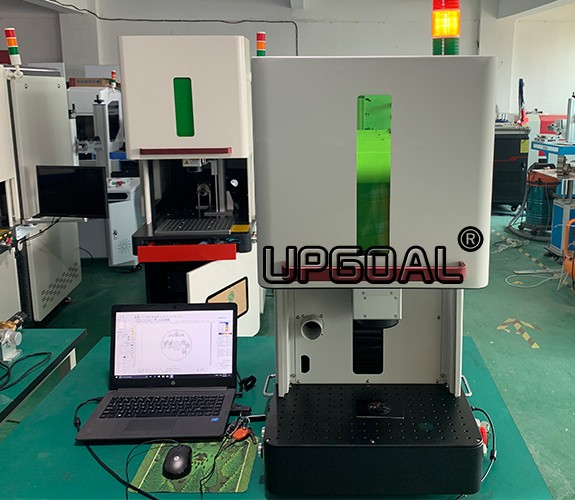

20W/30W/50W Mini Full closed fiber laser marking machine with Auto Focusing

Brief Introduction:

Model: UG-30FM

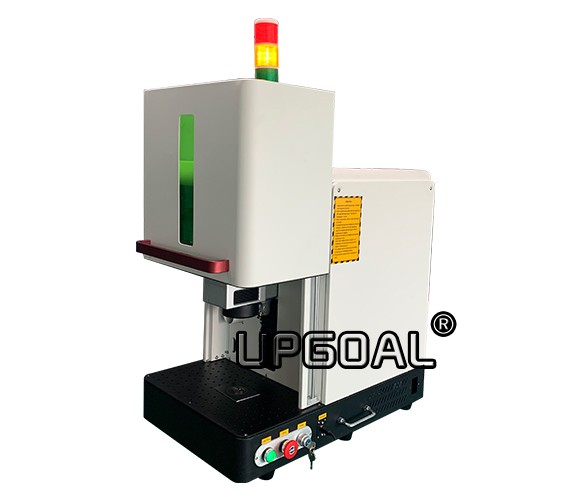

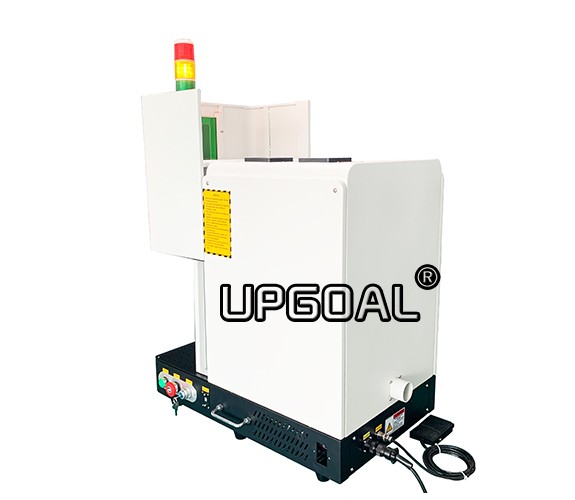

Mini full closed type
20W/30W/50W Raycus fiber laser
110*110/150*150mm marking area
Auto focusing lifting Z-axis

INQUIRY NOW

Applications

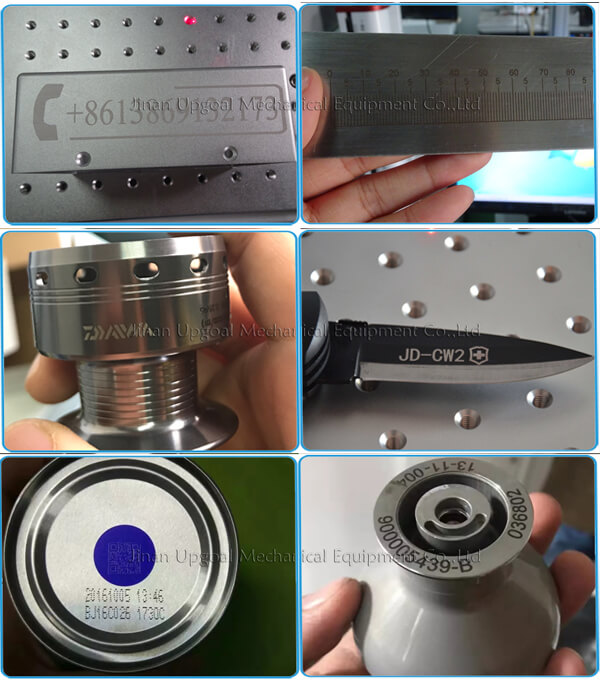

Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component,  hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.


Features

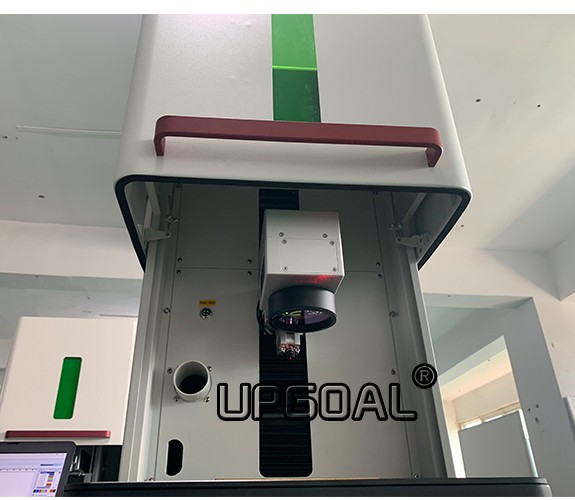

1. Mini enclosded type protection cover, can do close marking, ensuring the safe marking,  and easy to collect the marking smoke.
2. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of Raycus 20W/30w/50w fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.

3. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.

Famous SINO-GALVO 2206 serious galvanometer  &  Wavelength brand, F-THETA scanning length

4. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.

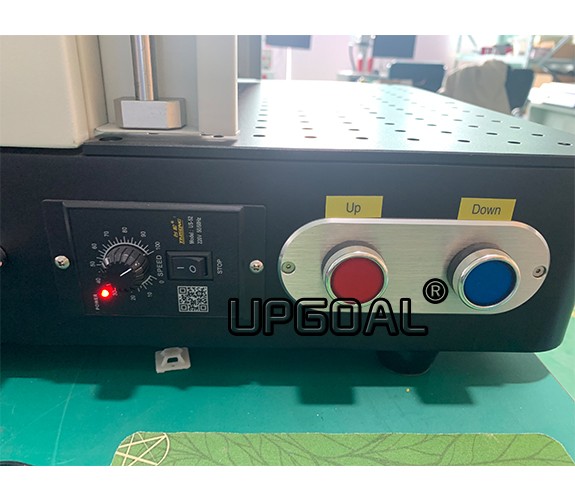

5. With auto focusing lifting Z-axis with double red positioning, with high precision focusing and convenient operation.

6. Optional smoke purifier( Conyson brand, 100W), with 3 layers purification, net filtration: 0.3um99.99%, the universal slub tube can be bent and adjusted at 360 degrees at will, with good supporting effect, high temperature resistance, good airtightness, and resistance to aging. High temperature resistant silicone cover, air volume regulating valve, large smoking area, good effect. Smart chip, block alarm.

7. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.

8. Marked graph and characters is permanent ,M will not regression  due to friction.

9. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.

10. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.

11. One piece design of control cabinet and marking table, small cover area.

12. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.

13.Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.
14. Optional rotary axis for cylinder marking.


Maximum output laser power

20W/30W/50W( Raycus fiber laser)

Wave length of laser

1064nm

Marking scope

110*110/150*150mm

Laser sources

Fiber module

Laser Head

High speed scanning head

The minimum focus facula diameter

20μm

Minimal character

0.01mm

Control system

Original Ez cad controller with USB port

Marking depth

0.01-5mm( depends on different materials)

Marking line width

0.01-0.1mm

Marking speed

≤7000mm/s

Laser repetition frequency

20kHz~80kHz

Cooling method

Force-air Cooling

Focusing

Auto lifting Z-axis focusing

Power supply

AC 220V/110V, 50/60Hz, single phase

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Process Material

All kinds of metal and part of Non-metal Materials

Certificate

CE
