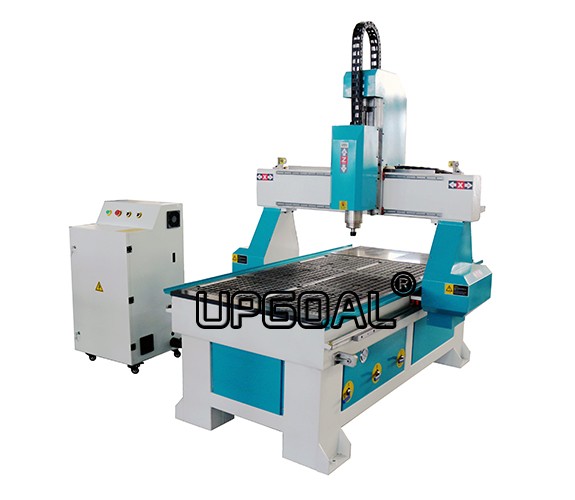

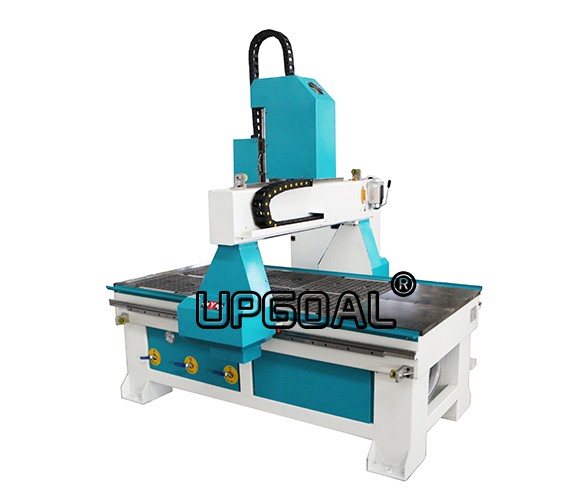

Small 3axis 4 Axis Wood Relief CNC Engraving Machine with Vacuum Table 900*1500mm

Brief Introduction:

Model: UG-9015
900*1500mm working area
4th axis diameter 200mm, length 1200mm
Vacuum table with 5.5kw air cooling vacuum pump
Mach3 4 axis controller
Wireless auto tools calibration



Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.


1. Strong welded steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. Vacuum adsorption system with 5.5kw air cooling vacuum pump, vacuum table with aluminum alloy T slot,  which is divided into 3 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time

3. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.
5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

6. China famous 86BYGH450B stepper motor and driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

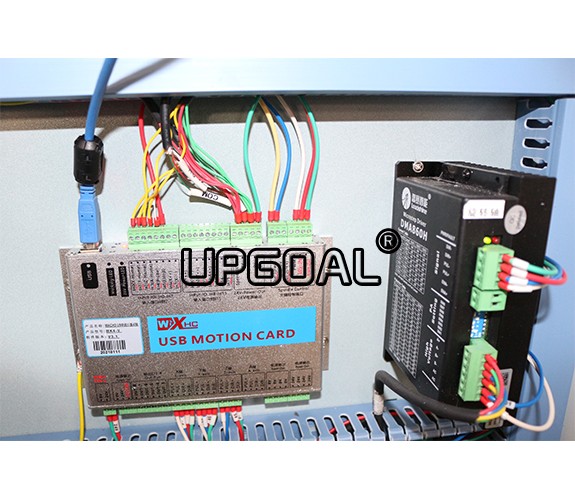

7.  Mach3 4 axis control system, with USB port for desktop or laptop computer, supporting XYZA-axis moving together, showing the processing path , more convenient.

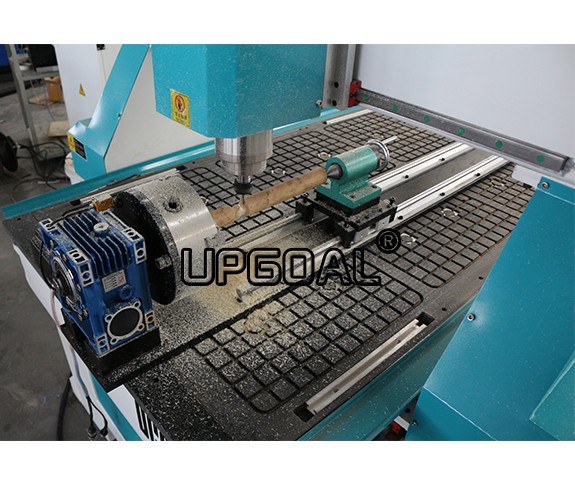

8.4th axis rotary axis, diameter 200mm, working length 1200mm, reduction gear transmission, ensure the cylinder processing precision.

9. Semi-auto lubrication system more convenient for maintenance.

10. Wireless Auto tool calibration, more convenient for each time Z-axis 0 point setting.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.

Effective working area

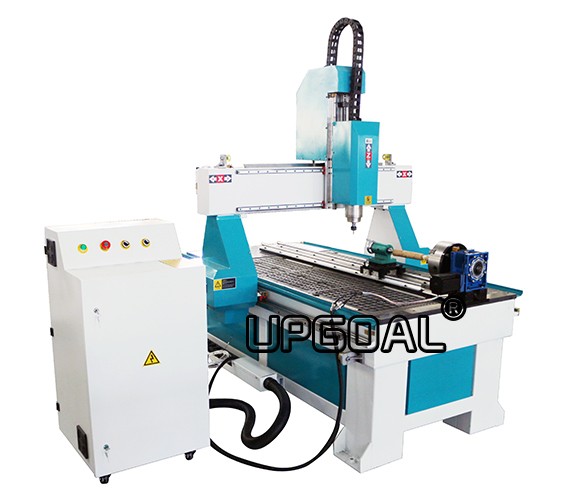

4th axis rotary axisDiameter 200mm, working length 1200mm, reduction gear transmission


Strong welded square steel tube structure for whole machine

Working table

Vacuum adsorption table with aluminum alloy T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan, diameter 20mm)


XINYUE Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Stepper motor (86BYGH450B) and driver( DMA860H, Leadshine for XYZA-axis

Spindle motor

3.2kw, water cooling,Qiancheng brand

Spindle speed


Collets type





AC 220V± 10%, 50/60Hz, single phase or

AC 380V±10%, 50/60Hz, three phases

Traveling speed


Engraving speed


Machine accuracy


Control system

Mach3, 4 axis, WXHC brand

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ºC

Relative humidity


Lubrication system


Tool calibration

Auto, wireless
