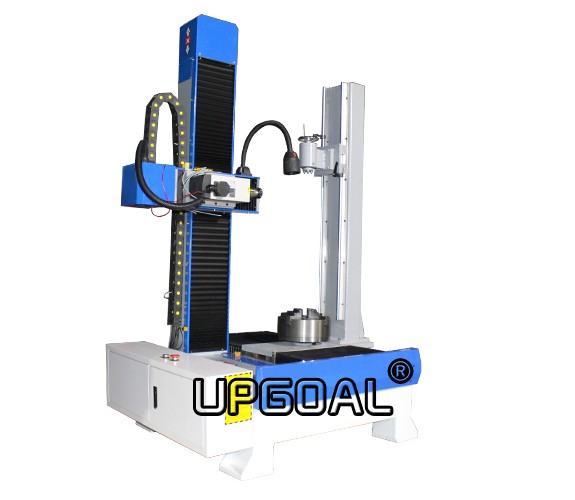

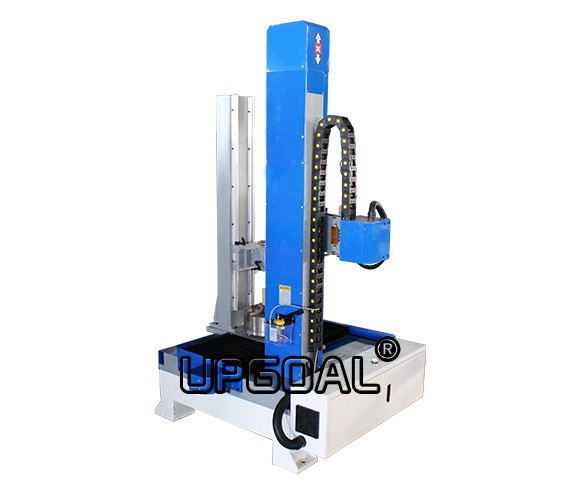

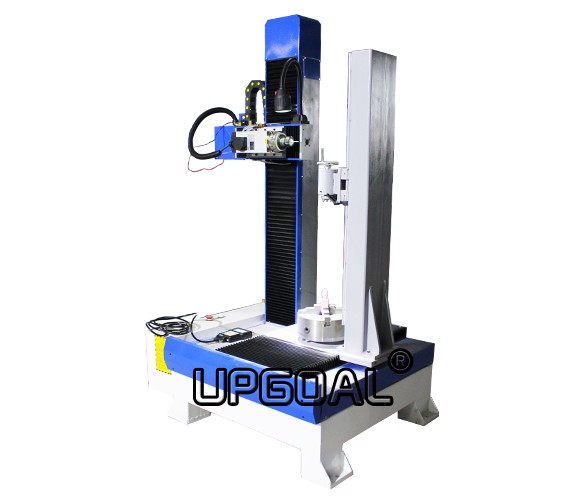

Vertical CNC Cylinder Engraving Machine 4 Axis UG-2590

Brief Introduction:

Model: UG-2590
4 Axis CNC XYZA
Cylinder clamping diameter 250mm, length 900mm
Optional Mach3 4 axis or DSP A18E offline 4 axis controller
HQD 4.5kw air cooling spindle

INQUIRY NOW

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

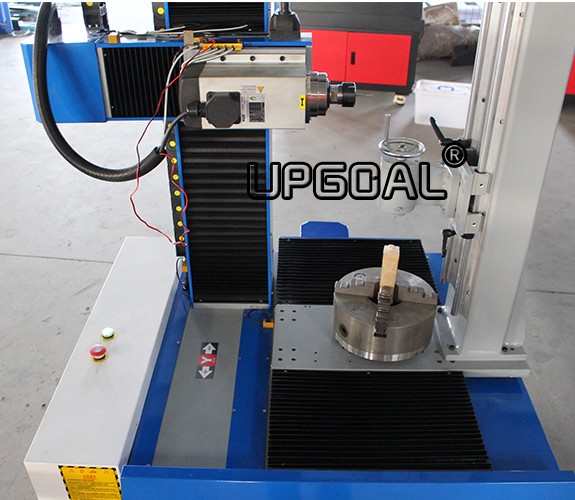

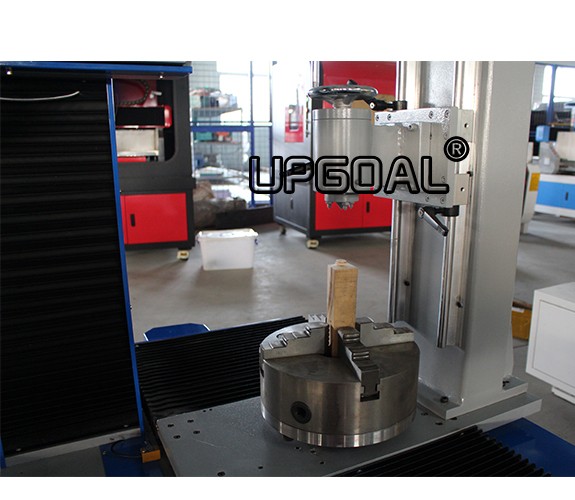

1. Vertically installed rotary axis, claming diameter 250m, working length 900mm,  rotate smoothly and stably, saving space.

2. China HQD 4.5kw Air cooling spindle, high torque output, low tools broken rate.

3. Real 4 axis (XYZA-axis) working, four axis coordinated CNC system(Optional Mach3 4 axis or DSP A18 4 axis offline controller) which is suitable for a wide variety of 3D/4D models.

4. Leadshine hybrid servo motor and hybrid servo driver H2-2206 for XYZA-axis, compared with the stepper motor, ensuring high speed and precision working.

5.Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running.

6. Lead balls screw transmission for X /Y/Z -axis, ensured working precision.

7.Cast Iron structure with vibration Temper aging treatment ensures no deformation for long time.

8. Side fixing control cabinet, save working space.

9.Semi-auto lubrication system more convenient for maintenance.

10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

11. With the function of break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.



Effective working area

900*390*230mm( X/Y/Z)

4th axis A-axis

Clamping diameter 250*250mm,processing length 900mm.

Chuck type

Materials

Cast iron structure

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Lead ball screw for XYZ-axis

Driving mode

Leadshine hybrid servo motor and driver

Spindle motor

4.5KW air cooling (HQD, China)

Spindle speed

0-18000rpm

Voltage

AC 220V±10%, 50/60Hz, single phase or

AC 380V±10%, 50/60Hz, three phases

Traveling speed

8000mm/min

Engraving speed

6000mm/min

Machine accuracy

0.02mm

Control system

Mach3 4 axis controller or

DSP A18E 4 axisoffline controller

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment

temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Semi-auto

Tool calibration

Auto

Certificate

CE
