4 Axis CNC Router
4 Axis CNC Router

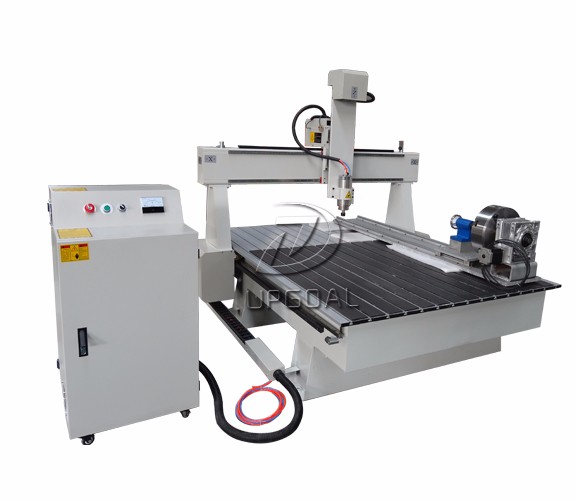

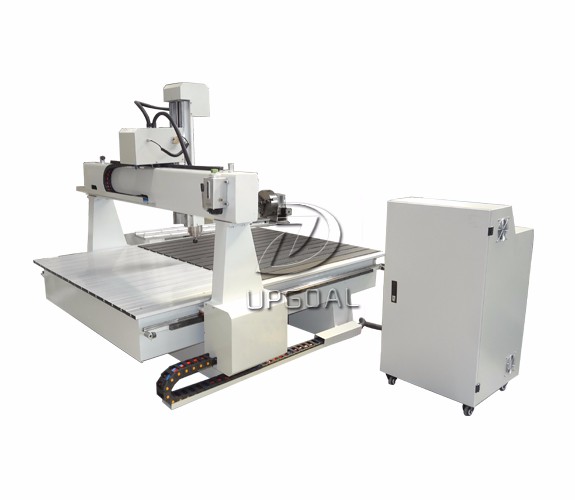

High 450mm Z-axis Wood CNC Carving Machine with Diamemter 300mm Rotary Axis

Brief Introduction:

Model: UG-1325T
450mm high Z-axis
4th axis, rotary axis, diameter 300mm, working length 1200mm
DSP offline control

INQUIRY NOW

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.


Features

1. Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. High Z-axis structure on cast iron gantry & vertical shaft, strong structure and long time using.

3. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

4. Large power 5.5kw water cooling spindle which is with stable performance and high torque, matched with high-performance Frequency inverter.

5. Big power China famous brand stepper motor and driver for XYZA-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

6. Helical gears pinion with Racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

7.DSP offline control system with USB interface which is completely off from Computer. More Humanized desgin with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.

8. 4th Axis rotary axis, diameter 300mm, working length 1200mmfor cylinder processing.

9. Auto tool calibration, more convenient for each time Z-axis 0 point setting.

10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

11. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.


    Effective working area

    1300(X)mm*2500(Y)mm*450(Z)mm

    4th axis rotary axis

    Diameter 300mm, working length 1200mm, reduction gear transmission

    Materials

    More thickness steel pipe welded machine holder bed, cast iron gantry

    Working table

    Aluminum T slot working table

    Moving type

    Gantry moving

    Guide rail

    Linear square guide rail ( Hiwin, Taiwan)

    Transmission

    Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

    Driving mode

    Stepper motor and driver

    Spindle motor

    3.2kw water cooling

    Spindle speed

    0-24000rpm

    Inverter

    Sunfar, 3.7KW

    Voltage

    AC 380V+ 10%, 50/60Hz, three phases or

    AC 220V+ 10%, 50/60Hz, single phase or

    Traveling speed

    >25000mm/min

    Engraving speed

    >12000mm/min

    Machine accuracy

    0.03mm

    Control system

    DSP offline

    Suitable software

    Artcam, Type3, Ucancam V9,etc

    Carving Instructions

    G code *Uoo *mmg *plt HPGL

    Running environment temperature

    0-45 ℃

    Relative humidity

    30%-75%

    Lubrication system

    Semi-auto

    Tool calibration

    Auto

    Certificate

    CE
