Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc.

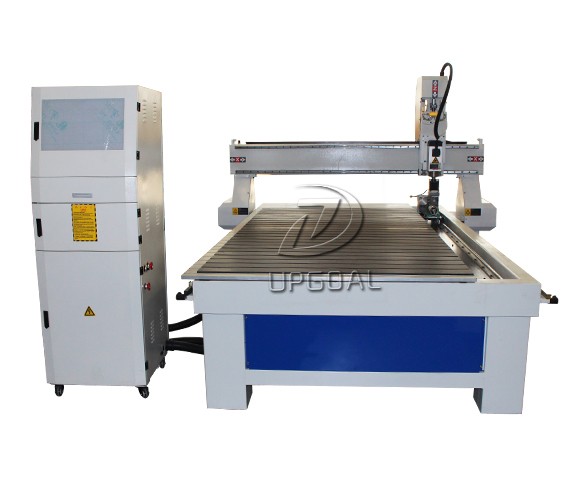

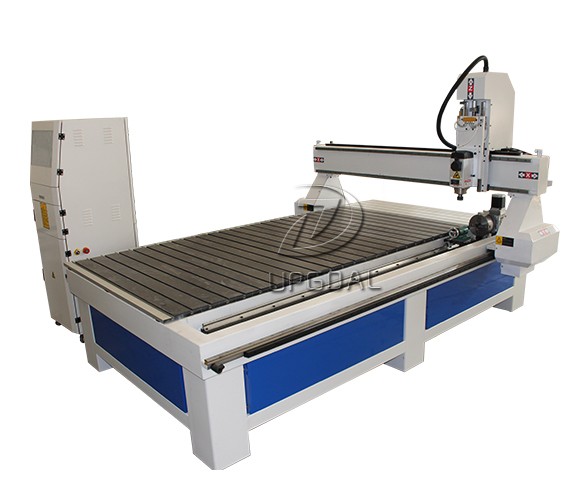

1. Strong welded steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.
2. Transverse aluminum alloy T slot working table, better for materials fixing.

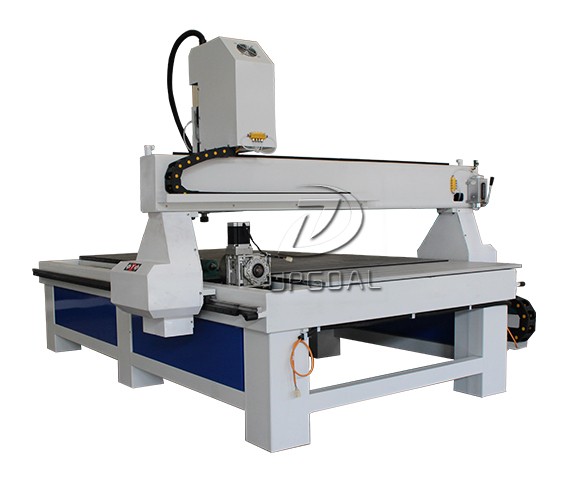

3. 4th axis rotary axis, fixed on the Y-axis direction with sunken structure, no need increase Z-axis height, ensuring the gantry stability, and diameter 150mm, length 2500mm, reduction gear transmission, ensure the cylinder processing precision.
4. Large power China 4.5kw air cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.
5. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.
6. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.
7. China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.
8.PCI NcStudio control system, enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.

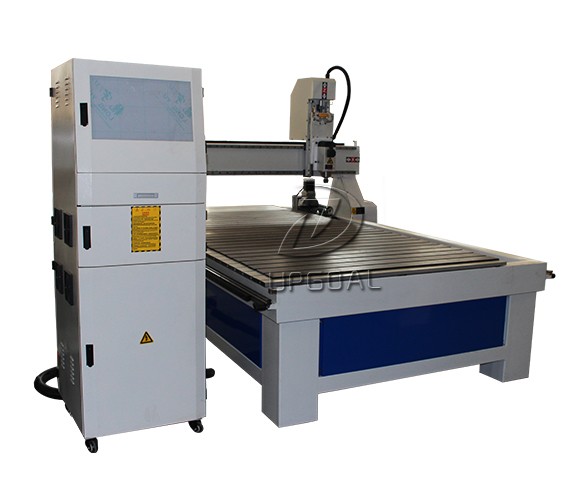

9. Indepedent computer cabinet, keeps computer cleaning during working.
10.Semi-auto lubrication system more convenient for maintenance.
11.Auto tool calibration, more convenient for each time Z-axis 0 point setting.
12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
13.ith the function of Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.
