4 Axis CNC Router
4 Axis CNC Router

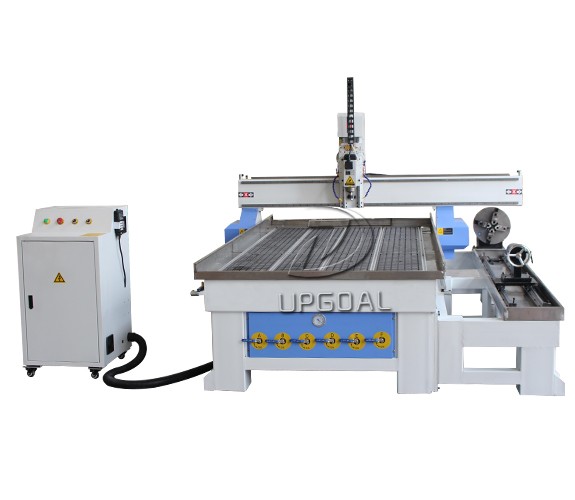

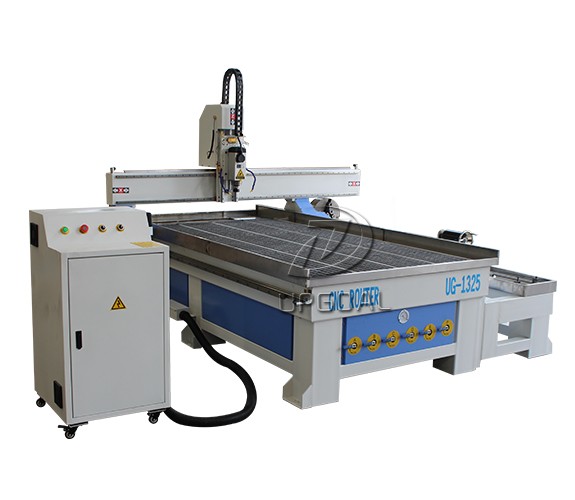

6.0KW 4 Axis Metal Wood CNC Engraving Cutting Machine with Hybrid Servo Motor

Brief Introduction:

Model: UG-1325R
Independent removable 4th axis diameter 300mm length 2500mm
Flat working area 1300*2500mm
6.0KW air cooling spindle
DSP A18 4 axis controller
Leadshine hybrid servo motor driver
Vacuum table with stainless steel water slotr

INQUIRY NOW

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.


Features

1.Strong welded T type steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

2. Large power 6.0kw China HQD air cooling spindle which is with stable performance, powerful and high torque, matched with high-performance frequency inverter, long life time.

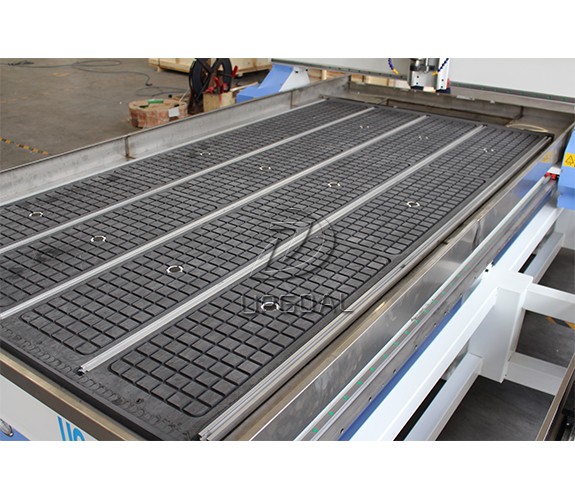

3.Vacuum adsorption system with 5.5kw air cooling vacuum pump, vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time

4.Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficieny, saving cost. Z- axis with precision lead ball screw, high precision and more durable.

5. China Leadshine hybrid servo motor 863HSM80H-E1 and driver H2-2206 for XYZA-axis,  high precision, fast speed and more stable.

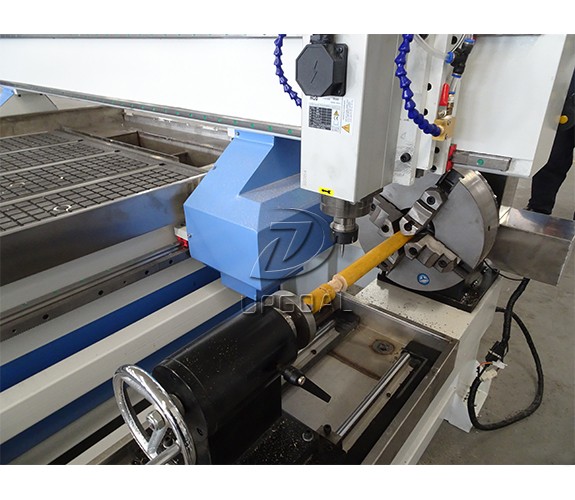

6. Extended gantry & independent removable rotary axis holder, with diameter 300mm, working length 2500mm, cylinder processing is in a special zone, each time, no need put the heavy rotary axis on the working table, saving labor and improving working efficiency.

7. With stainless steel water slot cooing system for metal/stone hard materials processing, cooling the tools & materials, getting the better engraving effect.

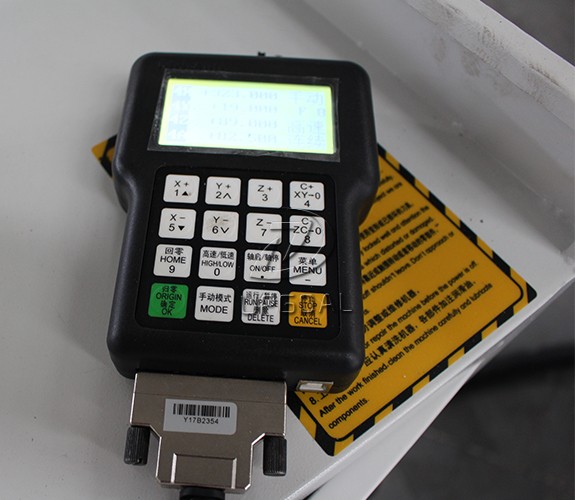

8. RichAuto DSP A18E 4 axis offline control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.

9. With dust collector, 3.0kw, double bags, sucking dust, milling dust, saw dust, keeping machine cleaning.

10. Semi-auto lubrication system,more convenient for maintenance.

11. Auto tool calibration, more convenient for each time Z-axis 0 point setting.

12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

13. With the function of break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.


Effective working area

1300(X)mm*2500(Y)mm*300(Z)mm

4th axis

Rotary axis, diameter 300mm,

working length 2500mm, reduction gear transmission

Materials

Strong welded square steel tube structure

Working table

6 zones vacuum adsorption table with aluminum T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Leadshine hybrid servo motor 863HSM80H-E1 and driver H2-2206 for XYZA-axis

Spindle motor

6.0kw, air cooling, HQD, China

Spindle speed

0-18000rpm

Collets type

ER32

Inverter

Sunfar

Voltage

AC 380V±10%, 50/60Hz, three phases

Traveling speed

>25000mm/min

Engraving speed

>12000mm/min

Machine accuracy

0.02mm

Repositioning accuracy

0.02mm

Diagonal error

0.2mm

Control system

DSP A18E 4 axis offline controller, RichAuto

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Semi-automatic

Tool calibration

Automatic

Certificate

CE
