4 Axis CNC Router
4 Axis CNC Router

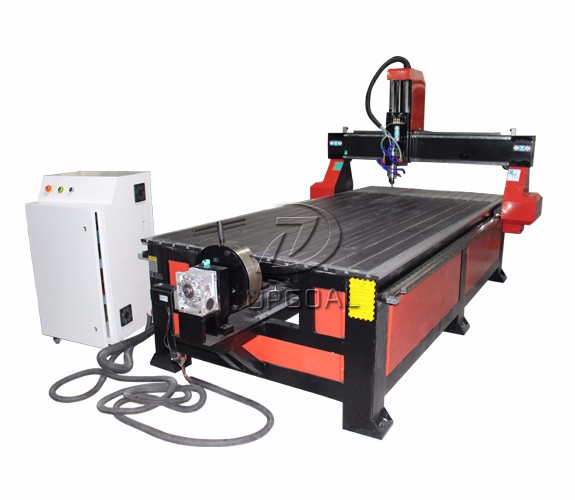

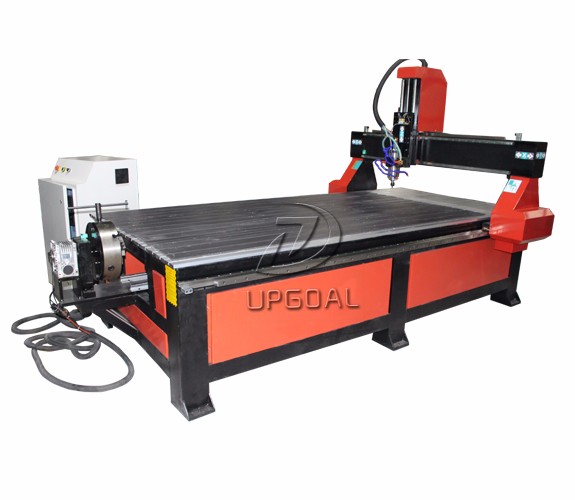

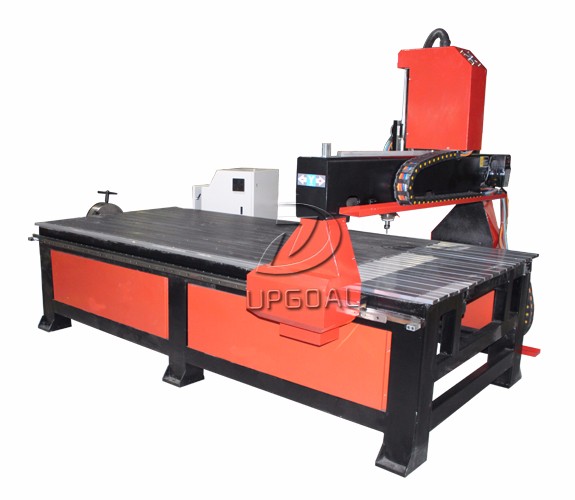

1300*2500mm 4*8 Feet 4 Axis Woodworking CNC Router with Underneath Rotary Axis

Brief Introduction:

Model: UG-1325
Underneath rotary axis diameter 300mm
Part of removable T slot working table
Mach3 4 axis offline control system
Leadshine hybrid servo motor and driver

INQUIRY NOW

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.


Features

1.Welded T type steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. Aluminum T slot working table, part which on the top of rotary axis is removable,more convenient and easy to take off.

3. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

4. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

5. China Leadshine hybrid servo motor 863HSM80H-E1 and driver H2-2206 for XYZA-axis,  high precision, fast speed and more stable.

6. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

7. Mach3 4 axis control system, with USB port for desktop or laptop computer, supporting XYZA-axis moving together, showing the processing path , more convenient.

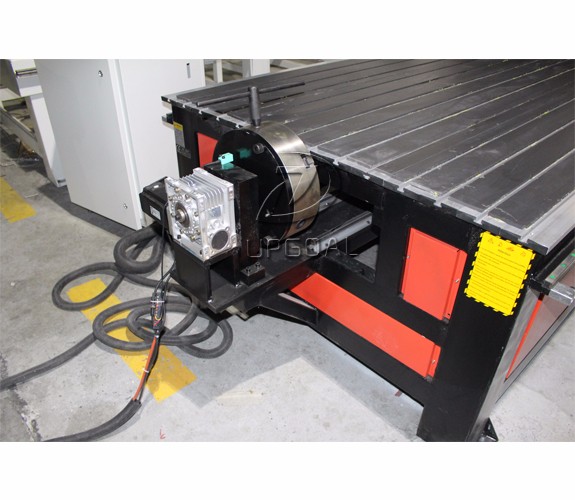

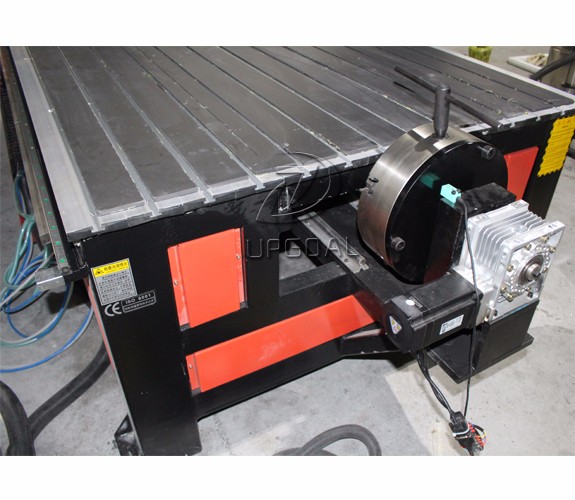

8. Underneath 4th axis rotary axis diameter 300mm, working length 1200mm, reduction gear transmission, compared with fix the rotary axis on the working table, no need increase the Z-axis height, keep the machine stability.

9. Auto lubrication system,more convenient for maintenance.

10. Auto tool calibration, more convenient for each time Z-axis 0 point setting.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.


Effective working area

1300(X)mm*2500(Y)mm*300(Z)mm

4th axis

Rotary axis, diameter 300mm, working length 1200mm, reduction gear transmission

Materials

More thickness T type steel pipe welded machine holder bed, cast iron gantry

Working table

Aluminum T slot working table, part is removable

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Leadshine hybrid servo motor 863HSM80H-E1 and driver H2-2206 for XYZA-axis

Spindle motor

3.2kw, water cooling

Spindle speed

0-24000rpm

Collets type

ER20

Inverter

Sunfar

Voltage

AC 220V+ 10%, 50/60Hz, single phase or

AC 380V+ 10%, 50/60Hz, three phases

Traveling speed

>25000mm/min

Engraving speed

>12000mm/min

Machine accuracy

0.02mm

Repositioning accuracy

0.02mm

Diagonal error

0.2mm

Control system

Mach3, 4 axis, with USB port

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Auto

Tool calibration

Auto

Certificate

CE
