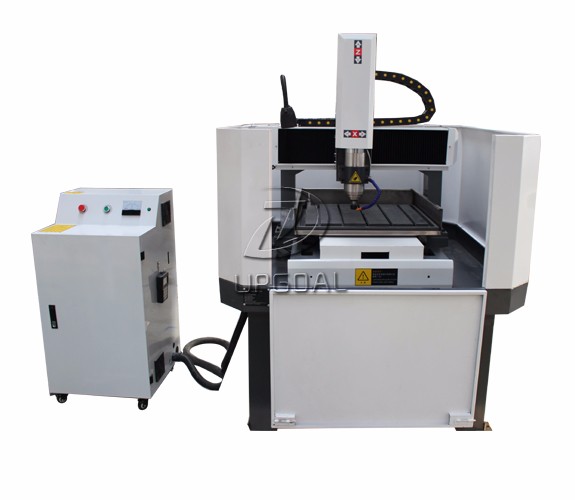

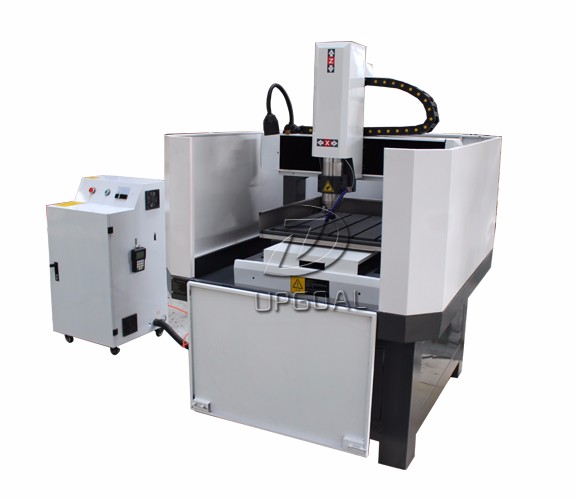

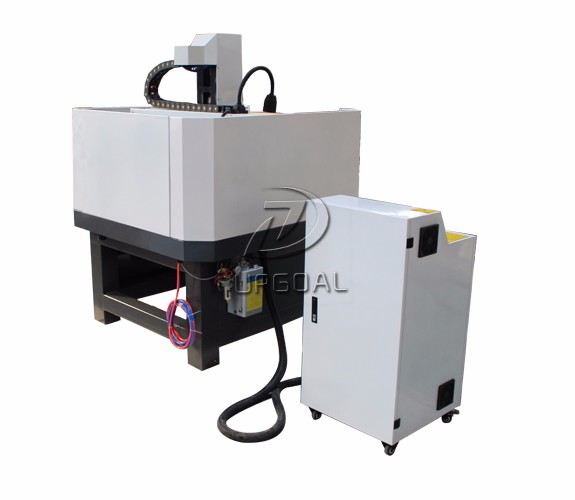

Shoe Mold CNC Engraving Machine with Yaskawa Servo Motor/Oil Mist Cooling

Brief Introduction:

Model: UG-6060
Cast iron structure, heavy duty
Yaskawa Japan 400W servo motor
Oil mist cooling system
DSP offline control

INQUIRY NOW

Applications

Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.


Features

1. Cast Iron as a whole with vibration Temper aging treatment ensures no deformation for long time.

2. Cast iron Working table with platform moving type. Durable without deformation enable positioning more preciously .

3. Equipped with  Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.

4. Three axis with precision ball screw transmission ensure the engraving speed and accuracy.

5. High variable speed 3.2KW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.

5. Japana Yaskawa 400W servo motor and driver for XYZA-axis, Z-axis with braking system, ensuring high speed and precision working

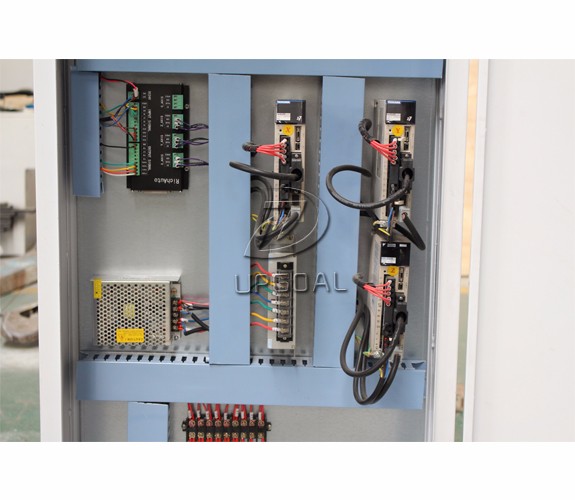

6. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.

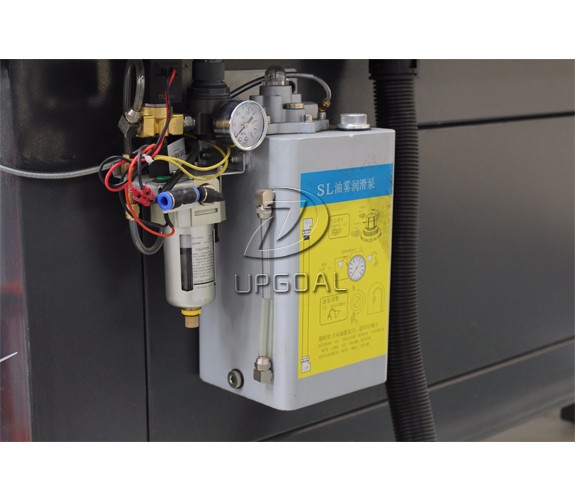

7. Oil mist cooling system, ensuring the cooling for the metal & hard materials, improving the processing precision.

8. Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.

9. DSP offline control system, when working no need computer, save the files into USB disk, more convenient and easy to operate.

10. High precision fixed auto tool calibration, more convenient for operation.

11. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.

12. Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.


    Effective working area

    600(X)mm*600Y)mm*200(Z)mm

    Materials

    Cast iron machine bed & working table & gantry & Z-axis

    Protection cover

    Half cover

    Working table

    Cast iron with T slot

    Moving type

    Platform moving

    Guide rail

    Linear square guide rail ( Hiwin, Taiwan)

    Transmission

    Lead ball screw for XYZ-axis

    Driving mode

    Japan Yaskawa 400W servo motor and driver for XYZ-axis, Z-axis with braking system

    Spindle motor

    3.2kw water cooling

    Spindle speed

    0-24000rpm

    Inverter

    Sunfar

    Voltage

    AC 380V+ 10%, 50/60Hz, three phases or

    AC 220V+ 10%, 50/60Hz, sinle phase

    Traveling speed

    >8000mm/min

    Engraving speed

    >6000mm/min

    Machine accuracy

    0.01mm

    Control system

    DSP offline control system, RichAuto A11E

    Suitable software

    Artcam, Type3, Ucancam V9,etc

    Carving Instructions

    G code *Uoo *mmg *plt HPGL

    Running environment temperature

    0-45 ℃

    Relative humidity

    30%-75%

    Cooling system

    Oil mist cooling system

    Tool calibration

    Auto, fixed type

    Certificate

    CE
