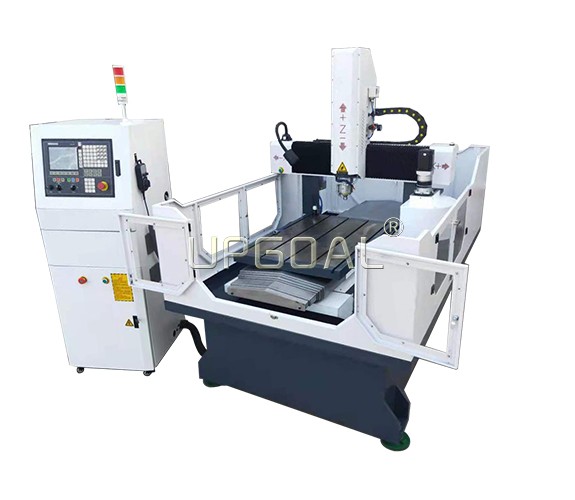

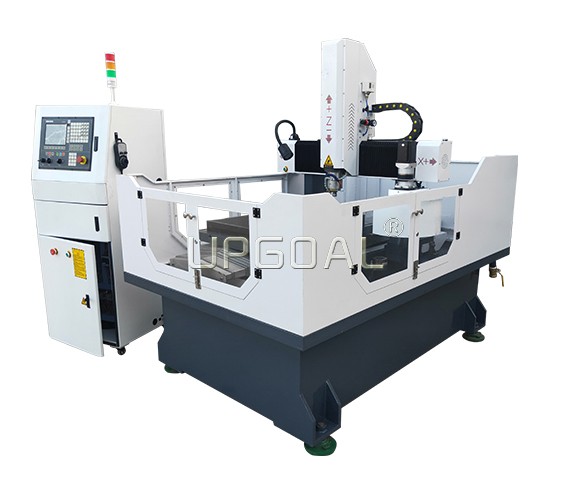

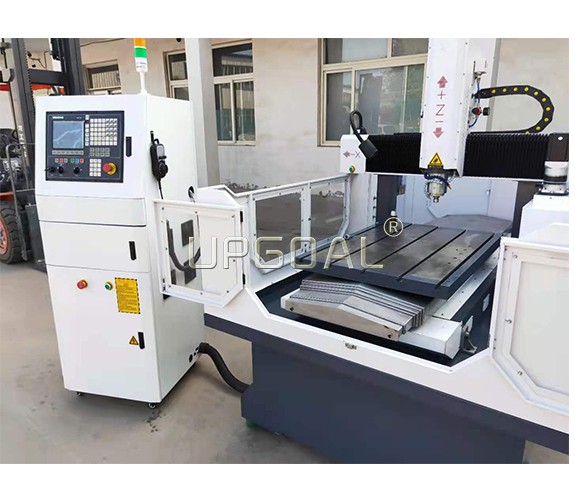

Auto tools Changing Metal ATC CNC Router Machine with High Precision

Brief Introduction:

Model: UG-6060ATC
600*600*300mm working area
Half disc type auto tools changing 6pcs
Weihong NK280 controller
Yaskawa 750W servo motor driver
Super heavy duty structure
iron working table 50mm thickness



Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.

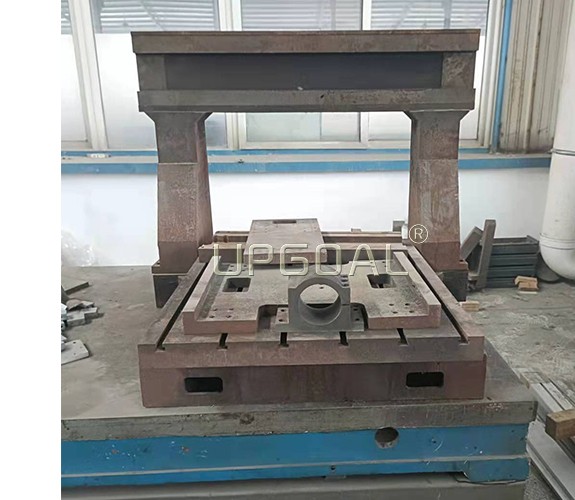

1. Super heavy duty cast iron structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

2.Cast iron T slot Working table, table thhickness 50mm,  with platform moving type, durable without deformation.

enable positioning more preciously.

3.Equipped with  Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.

4.Three axis with precision grinding TBI lead ball screw transmission ensure the engraving speed and accuracy.

5.High variable speed China 5.5KW water cooling ATC spindle with BT30 tapered bore, big torque, longer life, strong cutting

ability and continuous work for long time.

6. Yaskawa Japan 750W servo motor driver for XYZ-axis, Z-axis with braking system, ensuring high speed and precision working

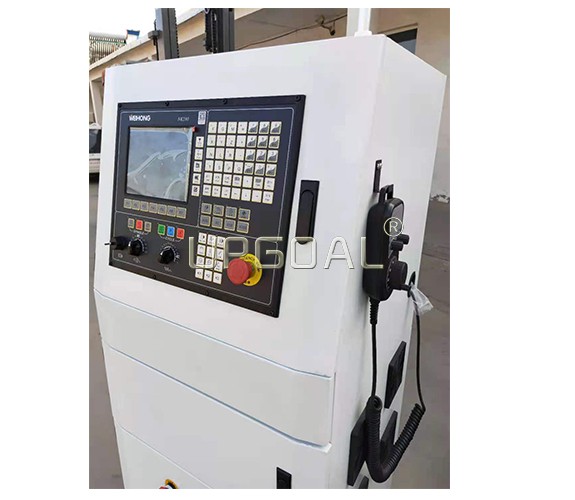

7.Weihong NK280control system, supports auto toosl changing, its high real-time embedded system, strong and more stable performance, its S control algorithm, ensure the uniform force of the machine bed and prevent effective jitter.

8. With half Disc type auto tool changer system, total 6 pcs(or more) bits in the tool magazine, only 8 seconds to change bits, can change the needed bits intelligently, saving bits changing time, improving efficiency.

9. Stainless steel water slot cooling system with cutting fluid tank, ensure long time metal matrials processing.

10. High precision RBK intergrated motor base and diaphragm coupling, esnuring the machine precision.

11. Folding stainless steel dust proof for Y-axis and half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.

12.Auto lubrication system, more  convenient for machine lubricating.

13. Auto tools calibration, conveineint for working.

14. Independent computer cabient , rationalized placement of the electronic parts. optimized heat dissipation effect. Adpot high quality electornic parts, minimizig fault rate.

15.With the function of break-point memory, power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.

16.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

17.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design

Effective working area



Super heavy cast iron structure as whole

Protection cover

Half cover

Working table

Super heavy cast iron with T slot, table thickness 50mm

Moving type

Platform moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)


Precision grinding TB Lead ball screw for XYZ-axis

Driving mode

Yaskawa Japan 750W servo motor driver, Z-axis with braking system

Spindle motor

5.5KW water cooling ATC spindle, BT30 tapered bore

Spindle speed





AC 380V+ 10%, 50/60Hz, three phases

Traveling speed


Engraving speed


Machine accuracy


Control system

Weihong NK280 control system with handwheel

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity


Cooling system

Stainless steel water slot cooling system with cutting fluid tank

Tool calibration
