Application

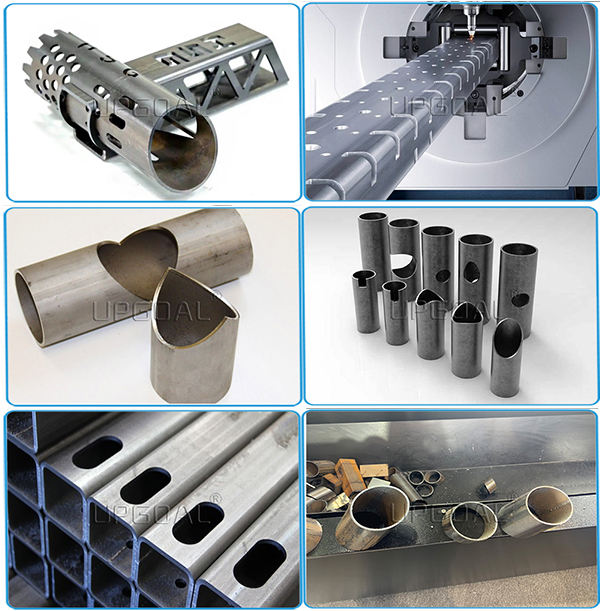

It is suitable for various special-shaped pipes such as round pipes, square pipes, rectangular pipes, oval pipes, etc.Professional for cutting carbon steel tube, stainless steel tube, galvanized tube, electrolytic tube, silicon steel a variety of thin metal metarials.

Application Industry

Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

Applicable materials:

Used for cutting various metal materials such as carbon steel, low carbon steel, galvanized steel, stainless steel, brass, aluminum, gold, silver, titanium, spring steel and copper can be flexibly processed round pipes, square pipes, rectangular pipes, elliptical pipes and special-shaped pipes, etc.

Features

UPGOAL tube fiber laser cutting machine is specially designed for metal tubes with superior performance and simple operation. The tube fiber laser cutting machine has good cutting quality and cutting efficiency. It uses the strong heat generated by the high-density laser beam to irradiate the surface of the material to realize the cutting of metal pipes. Its standard diameters are 220mm, 160mm, 320mm, and the standard length is 6m. Other sizes can be customized.

(1) Strong compatibility, can be flexibly applied to cutting metal round pipes, square pipes, rectangular pipes, special-shaped pipes, etc., and can process any graphics and patterns.

(2) High precision, fast speed, narrow cutting seam, small heat-affected zone, smooth cutting surface without burrs.

(3) Non-contact cutting, with auto focusing RayTools BM110 laser cutting head will not touch the surface of the material and scratch the workpiece.

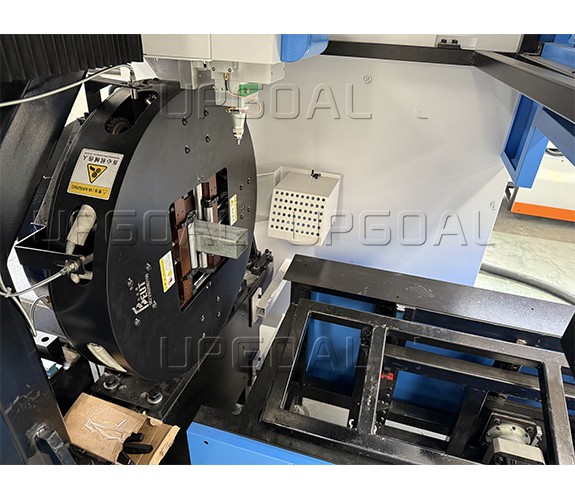

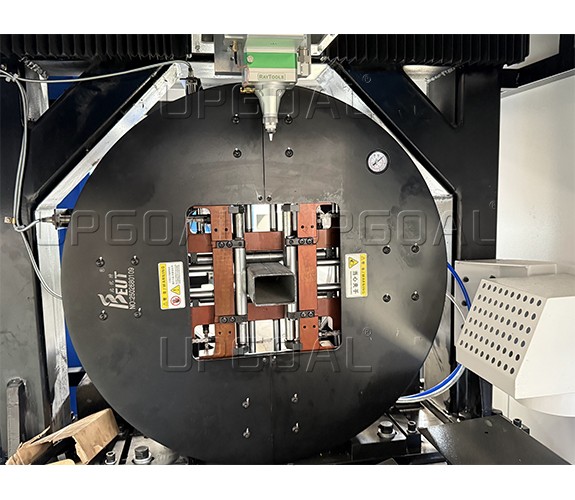

(4) Fully automatic chuck adopts dual pneumatic mode to automatically fix the pipe to avoid possible displacement during the cutting process and ensure cutting accuracy. Clamping diameter 245mm, cutting length 6000mm.

(5) Equipped with follow up unloading holder, by utilizing servo drives to track the cutting position and orientation of the tubing in real time, the support height and angle are dynamically adjusted to achieve flexible and smooth unloading.

(6) Adopted stable MAX MFSC-3000W fiber laser source, photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.

(7)The FSCUT 3000DE control system  is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination, automatic identification of exterior and interior modes and so on, compatible, with laser source brands such as IPG, SPI, JK, Raycus, etc.

(8). Adopted FUJI Japan 1300W 750W servo motor and driver for XY axis, rotary axis with 1.8KW/2.9KW  the servo motor with SHIMPO reducer,  more accurate, It realizes closed-loop control of position, rotating speed is more faster, general rated speed can reach 2000~3000 rpm; With high strong anti-overload capability, and smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.

(9) Teyu S&A Industrial chiller , ensuring fiber laser and laser head can be cooled quickly to ensure that the laser machine has stable power even working at high temperature, high efficient and fast operation.

(10) Adopted SMC Japan proportional valve , improve cutting accuracy & save gas.

(11) Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the production efficiency.

(12) High-rigidity heavy chassis,reducing the vibration generatedduring high-speed cutting greatly. High-performance  vaiation aluminium crossbeam,after finite element analysis,realizes highly accelerated circular arc cutting speed.
