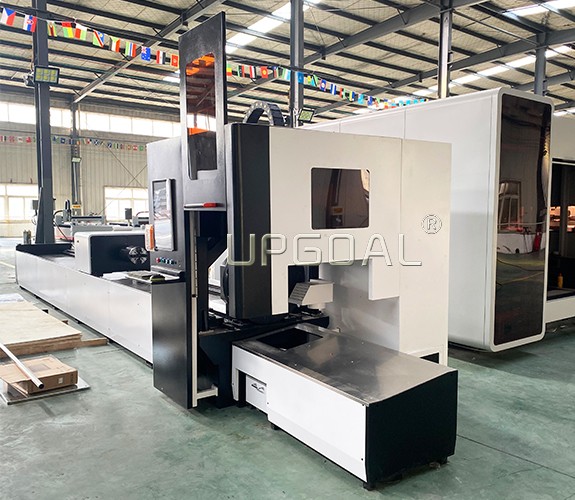

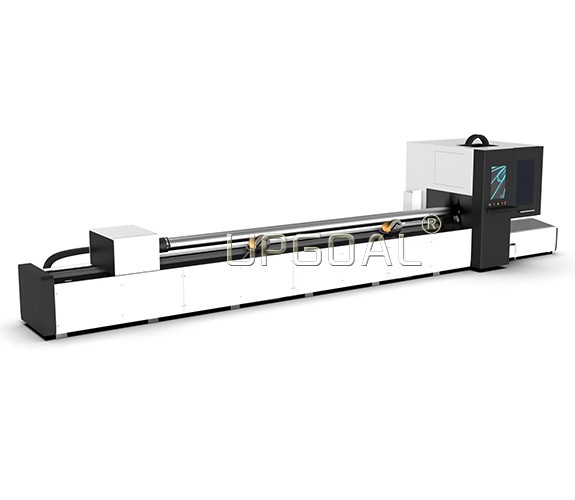

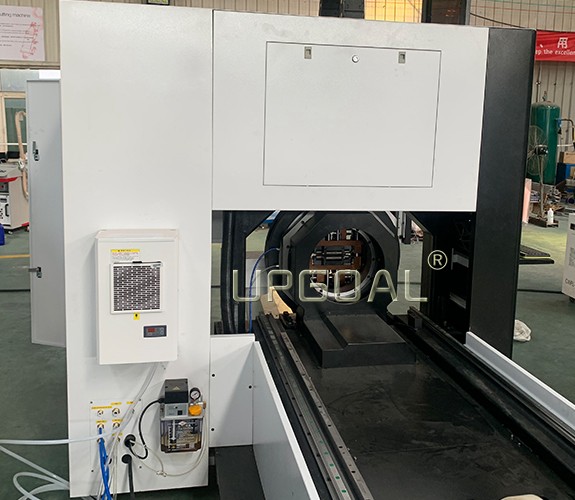

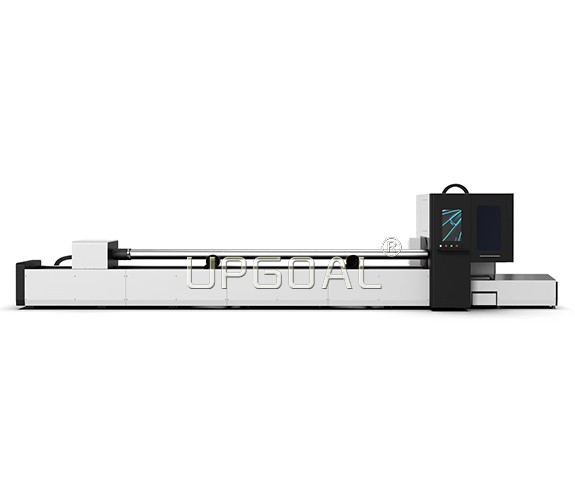

Tube Fiber Laser Cutting Machine
Tube Fiber Laser Cutting Machine
Carbon Steel Profile Square Stainless Steel Tube Fiber Laser Cutting Machine

Brief Introduction:

Model: UG-2260FL
Cutting diameter 220mm
Cutting length 6000mm
Fiber laser power 1000W/1500W/2000W/3000W/4000KW/6000KW
FSCUT3000S controller
RayTools BMH110 auto focusing cutting head

INQUIRY NOW

Application

It is suitable for various special-shaped pipes such as round pipes, square pipes, rectangular pipes, oval pipes, etc.Professional for cutting carbon steel tube, stainless steel tube, galvanized tube, electrolytic tube, silicon steel a variety of thin metal metarials.

Application Industry

Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

Applicable materials:

Used for cutting various metal materials such as carbon steel, low carbon steel, galvanized steel, stainless steel, brass, aluminum, gold, silver, titanium, spring steel and copper can be flexibly processed round pipes, square pipes, rectangular pipes, elliptical pipes and special-shaped pipes, etc.

Features

UPGOAL tube fiber laser cutting machine is specially designed for metal tubes with superior performance and simple operation. The tube fiber laser cutting machine has good cutting quality and cutting efficiency. It uses the strong heat generated by the high-density laser beam to irradiate the surface of the material to realize the cutting of metal pipes. Its standard diameters are 220mm, 160mm, 320mm, and the standard length is 6m. Other sizes can be customized.


(1) Strong compatibility, can be flexibly applied to cutting metal round pipes, square pipes, rectangular pipes, special-shaped pipes, etc., and can process any graphics and patterns.

(2) High precision, fast speed, narrow cutting seam, small heat-affected zone, smooth cutting surface without burrs.

(3) Non-contact cutting, with auto focusing RayCus BMH110 laser cutting head will not touch the surface of the material and scratch the workpiece.

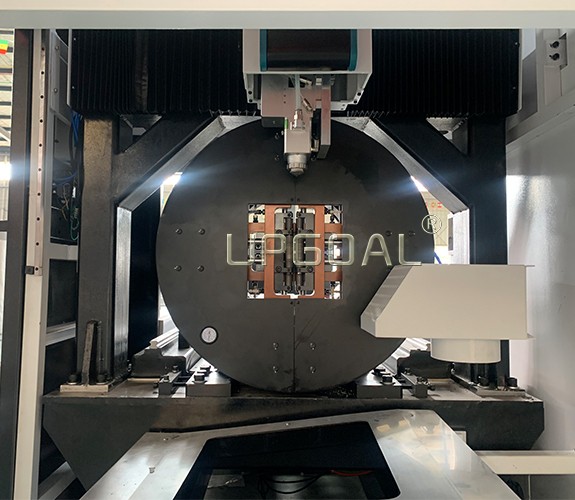

(4) Fully automatic chuck adopts dual pneumatic mode to automatically fix the pipe to avoid possible displacement during the cutting process and ensure cutting accuracy.

(5) Adopted stable RAYCUS/MAX brand 1000W-6000W fiber laser source, photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.

(6). The CypCut 3000S & TubePro & Tubes T-Lite  control system  is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination, automatic identification of exterior and interior modes and so on, compatible, with laser source brands such as IPG, SPI, JK, Raycus, etc.

(7). Adopted Fuji Japan 1300W 850W servo motor and driver for XY axis, rotary axis with 1.8KW/1.3KW  the servo motor with SHIMPO reducer,  more accurate, It realizes closed-loop control of position, rotating speed is more faster, general rated speed can reach 2000~3000 rpm; With high strong anti-overload capability, and smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.

(8) Teyu S&A Industrial chiller , ensuring fiber laser and laser head can be cooled quickly to ensure that the laser machine has stable power even working at high temperature, high efficient and fast operation.

(9) Adopted SMC Japan proportional valve, improve cutting accuracy.

(10) The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the workpiece is small, and there is no mechanical deformation.

(11)Suitable for a variety of materials, and can cut steel plates, stainless steel, aluminum alloy plates, hard alloys and other materials of any hardness without deformation.

(12) High-quality automatic cutting heads, stable laser generators, reliable transmission systems, servo motors and drives imported from Japan, and Schneider electrical components imported from Germany all play a very important role in the operation of the machine.


Model

UG-2260FL

Cutting diameter

220mmcan be customized

Cutting length

6000mm

Laser type

Fiber laser generator

Laser working medium

Fiber

Laser wavelength

1064nm

Cutting head

RAYTools BMH110 auto focusing laser cutting head

Rated output power

1000W/1500W/2000W/3000W/4000W/6000WMAX/RAYCUS brand

Laser cutting system

FCUT3000S

Driving system

Fuji/Yaskawa Japan servo motor 1300W/850W

Reduction gear

SHIMPO, Japan

Guide rail

Linear square guide rail, Hiwin, Taiwandiameter25mm

Tranmission system

Helical rack and pinion transmission, YYC, Taiwan

Proportional valve

SMC, Japan

PositionaI accuracy

±0.03mm/m

Repeated positioning accuracy

±0.02mm/m

Cutting precision can be reach

±0.2mm

Maximum travelling speed

100m/min

Maximum acceleration

1.5G-1.8G

Power supply

AC380V, 50/60Hz, three phases  or

AC220V, 50/60Hz, single phase

Graphic format supported

CAD,DXF, etc

Lubrication system

Automatic

Working environment

Temp:0-40℃,humidity:≤80%,No condensation

Machine size

9250*2100*2150mm

Weight

3000kg

Certificate

CE/FDA
