Multi Head and Cylinder CNC Router
Multi Head and Cylinder CNC Router

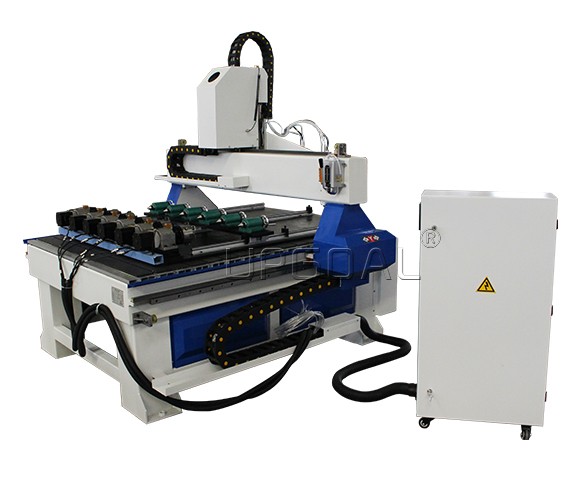

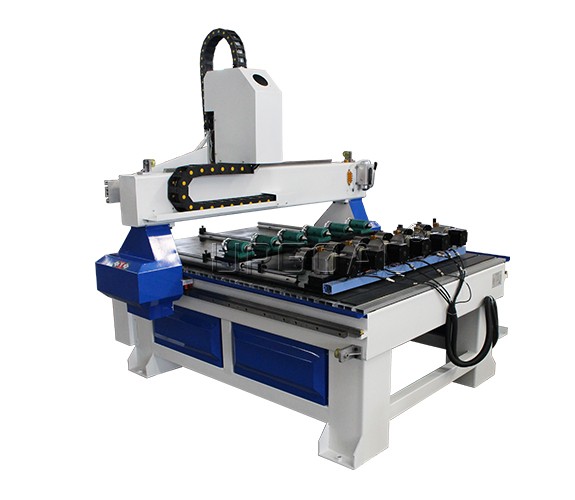

6 Spindles 6 Rotary Axis CNC Wood Cylinder Engraving Machine

Brief Introduction:

Model: UG-1313-6
6 Spindle Head 6 Rotary Axis
Each rotary axis diameter 100mm, length 1300mm
Mach3 4 axis controller
Total working area 1300*1300mm

INQUIRY NOW

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

1. Strong welded square steel steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

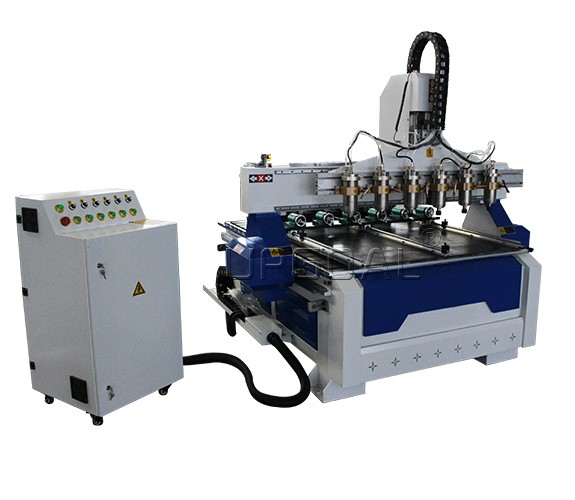

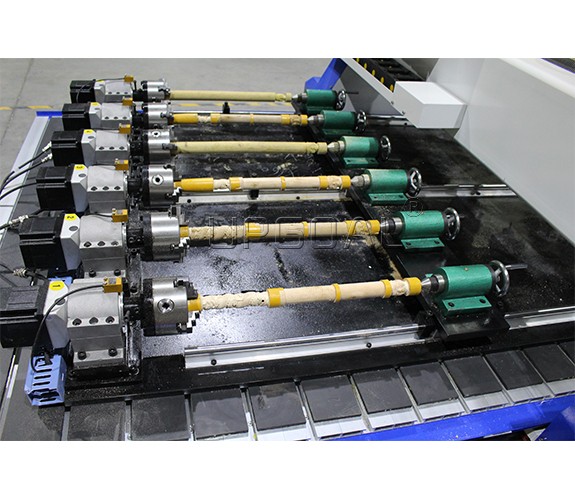

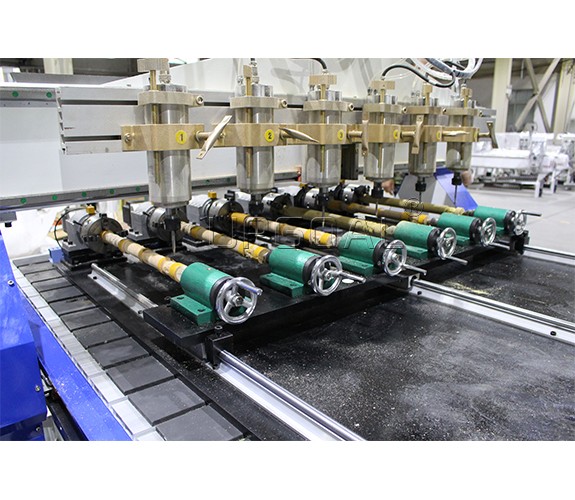

2. One Z-axis with 6 pcs spindle heads, and 6 pcs rotary axis, diameter 100mm, length 1300mm,  can for 6pcs cylinder engraving at one time, much improving the working efficiency. And, each rotary axis with independent reduction gear type stepper motor, during working, the other ones can do continus working if one failure.


3. Each spindle is 2.2KW water  cooling ( China famous Hanqi brand), each one has auto calibration fixture, easy and convenient for calibration , which is with stable performance,low noise and high torque, matched with high-performance frequency Inverter.


4. Rotary axis table can be removed, so you can also use the aluminum alloy T slot working table for flat engraving cutting.


5. Mach3 4 axis control system, with USB port for desktop or laptop computer, supporting XYZA-axis moving together, showing the processing path , more convenient.


5.Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.


6. XINYUE brand helical rack and pinion transmission for X /Y axis, higher running speed and efficiency, saving cost. Z- axis with precision lead ball screw, high precision and more durable.


7. China famous Chuangwei brand stepper motor and Leadshine stepper driver for XYZA-axisand Z-axis with braking system, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.


9.Semi-auto lubrication system more convenient for maintenance.


10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.


11. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.


Each head flat

working area

150*(X)mm*1300(Y)mm*250(Z)mm

4th axis rotary axis number

6pcs

Each rotary axis working area

100mm*1300mm

Rotary axis table

Removable

Spindle number & power

6pcs, 2.2kw water cooling( ER20)

Spindle speed

0-24000rpm

Inverter

Sunfar

Materials

Strong welded square steel pipe structure

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan,diameter 20mm)

Transmission

XINYUE Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Stepper motor (86BYGH450B & 86BYGH450C, CW motor, Z-axis with braking system)

and driver( DMA860H, leadshine) for XYZA-axis

Voltage

AC 220V, 50/60Hz, single phase

Traveling speed

>25000mm/min

Engraving speed

>12000mm/min

Machine accuracy

0.03mm

Control system

Mach3 4 axis controller

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running

environment temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Semi-auto

Tool calibration

Auto

Certificate

CE
