Applications

Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.

Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.

Features

1. Cast iron working table & cast aluminum gantry structure. Stable Running with less Vibration.

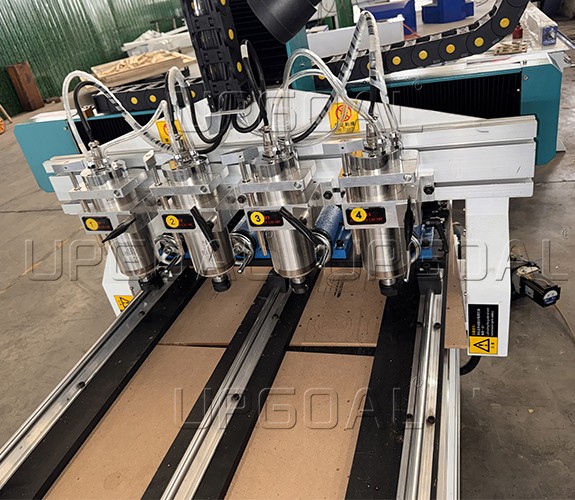

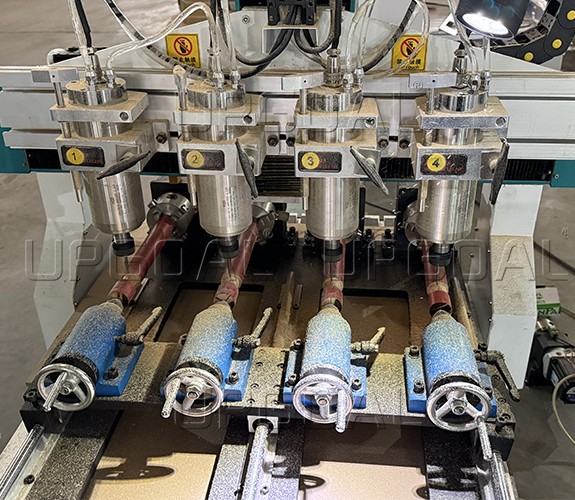

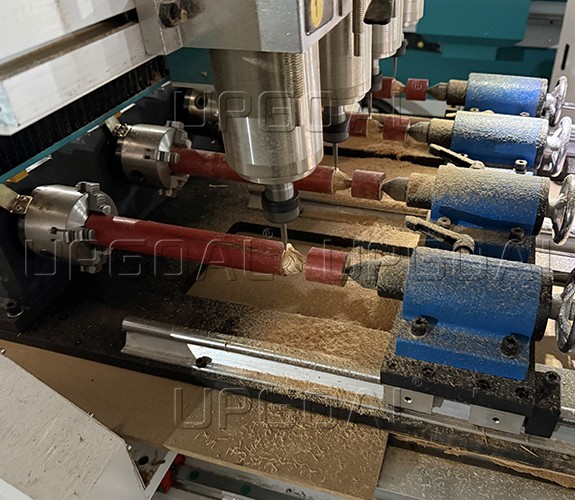

2. One Z-axis with 4 pcs spindle heads, and 4 pcs rotary axis, diameter 80mm, length 600mm,  can for 4pcs cylinder engraving at one time, much improving the working efficiency. And, each rotary axis with independent reduction gear type stepper motor, during working, the other ones can do continus working if one failure.

3. Each head with 1.5 kw water cooling spindle, ensuring the fine engraving is more smoothly and clear.

4. XYZ three axis are with Hiwin Taiwan linear square guide rail and block. Lead ball screws transmission for all axis, durable running with high accuracy.

5. Mach3 4 axis control system, with USB port for desktop or laptop computer, supporting XYZA-axis moving together, showing the processing path , more convenient.

6. China famous Chuangwei brand stepper motor and Leadshine stepper driver for XYZA-axis,  and Z-axis with braking system, high precision, fast speed and more stable.

7. Dust-Proof design for XZ-axis, protect the guide rail and gears pinon racks from the Dust&Dirt, help to ensure machine working performance.

8. With independent control cabinet and rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate, Adopt high flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

9. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

10. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.
