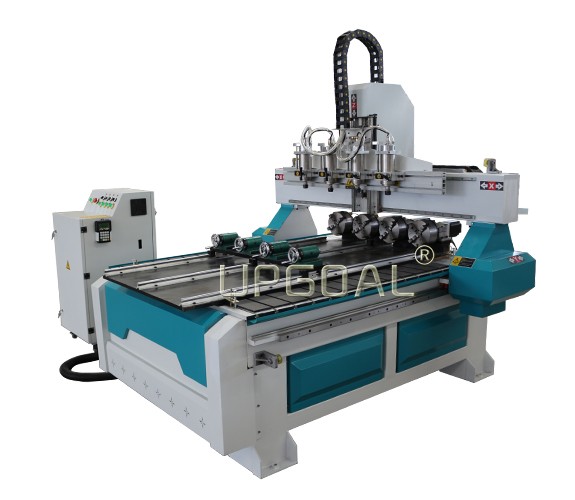

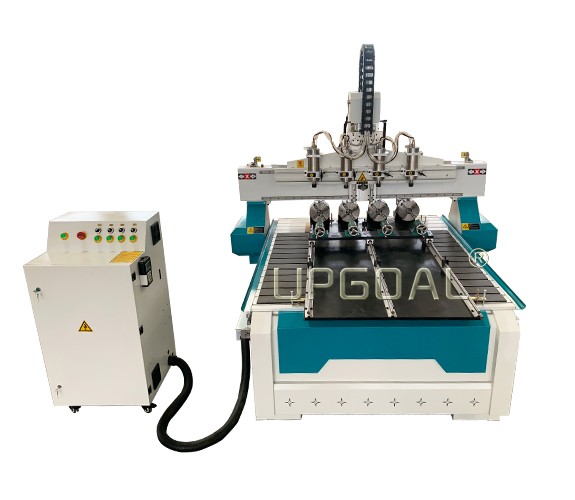

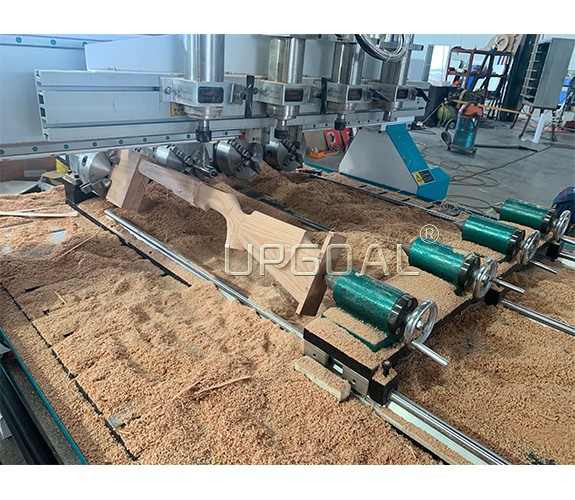

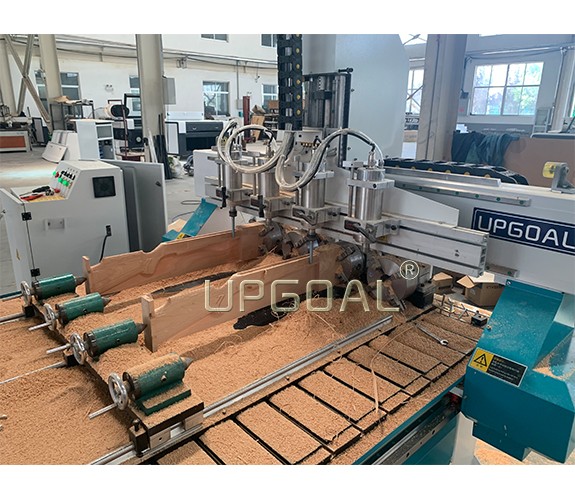

Wood Gunstock Making by Four Spindles Four Rotary Axis CNC Router 130*1300mm

Brief Introduction:

Model: UG-1313-4
Four spindle four rotary axis
Each spindle power 2.2kw, water cooling
Each rotary axis chuck diameter 160mm, length 1300mm
DSP A18E 4 axis offline controller
Leadshine hybrid servo motor driver H2-2206



Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.


1. Strong welded square steel steel tube structure as a whole with vibration temper aging treatment ensures no deformation for long time.

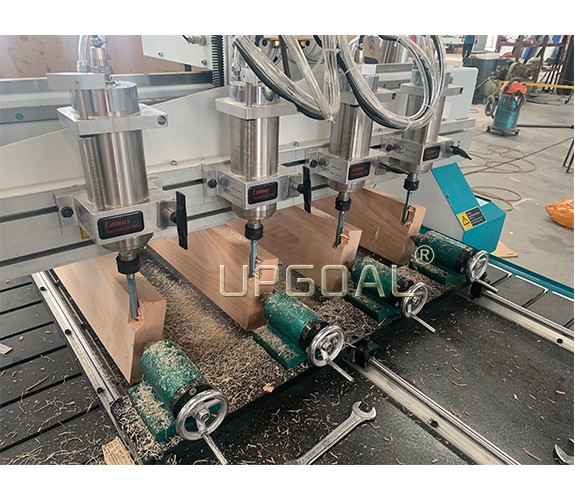

2. One Z-axis with 4 pcs spindle heads, and 4 pcs rotary axis( diameter 160mm, length 1300mm),  can for 4pcs cylinder engraving at one time, much improving the working efficiency. And, each rotary axis with independent reduction gear type hybrid servo motor, during working, the other ones can do continus working if one failure.

3. Each spindle is 2.2KW water  cooling ( China famous Hanqi brand), each one has auto calibration fixture, easy and convenient for calibration , which is with stable performance,low noise and high torque, matched with high-performance frequency Inverter.

4. Rotary axis table can be removed, so you can also use the aluminum alloy T slot working table for flat engraving cutting.

5. Richauto DSP A18E axis control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.

5.Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.

6. XINYUE brand helical rack and pinion transmission for X /Y axis, higher running speed and efficiency, saving cost. Z- axis with precision lead ball screw, high precision and more durable.

7. China Leadshine hybrid servo motor and hybrid servo driver H2-2206 for XYZA-axis, compared with the stepper motor, ensuring high speed and precision working.

9.Semi-auto lubrication system more convenient for maintenance.

10. Auto tools calibration, precision for Z-axis 0 point setting.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.

Working area


4th axis rotary axis

4pcs, diameter 160mm, length 1300mm, reduction gear transmission type

Rotary axis table


Spindle number & power

4pcs, 2.2kw water cooling( ER20)

Spindle speed





Strong welded square steel pipe structure

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan,diameter 20mm)


XINYUE Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

 China Leadshine hybrid servo motor and hybrid servo driver H2-2206 for XYZA-axis


AC 220V, 50/60Hz, single phase

Traveling speed


Engraving speed


Machine accuracy


Control system

Richauto DSP A18E axis control system

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL


environment temperature

0-45 ℃

Relative humidity


Lubrication system


Tool calibration
