Combined Laser Welding Cleaning
Combined Laser Welding Cleaning

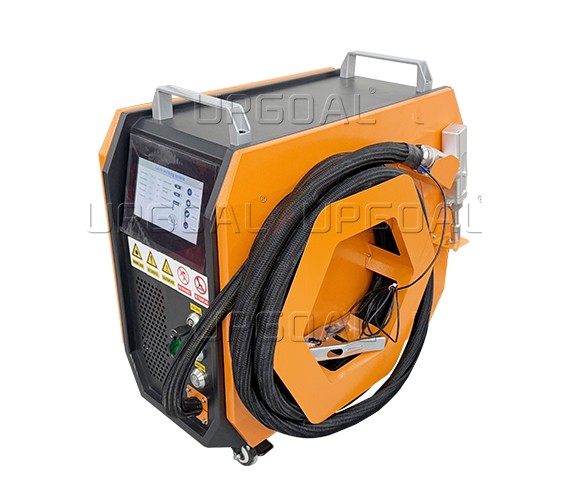

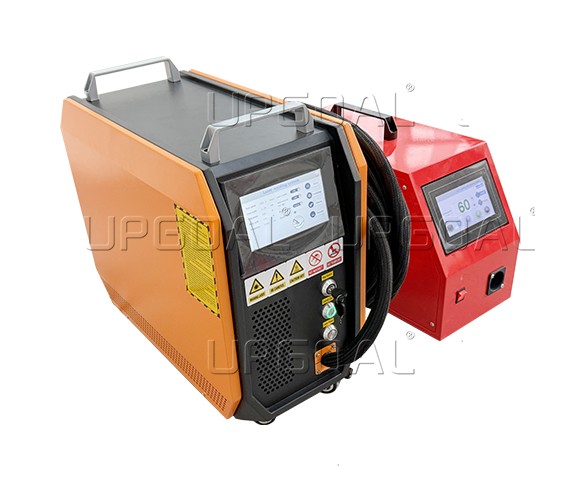

Portable Air Cooling Handheld Laser Welding Cleaning Machine 1500W

Brief Introduction:

Model: UG-1500LW
Raycus RFL-C1500 1500W fiber laser
Wobble laser welding head
Special laser welding system
Industrial water chiller
With wire feeder

INQUIRY NOW

Applications

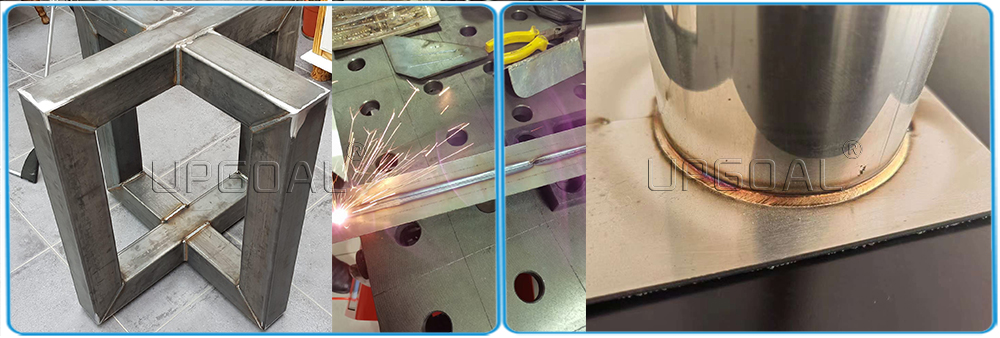

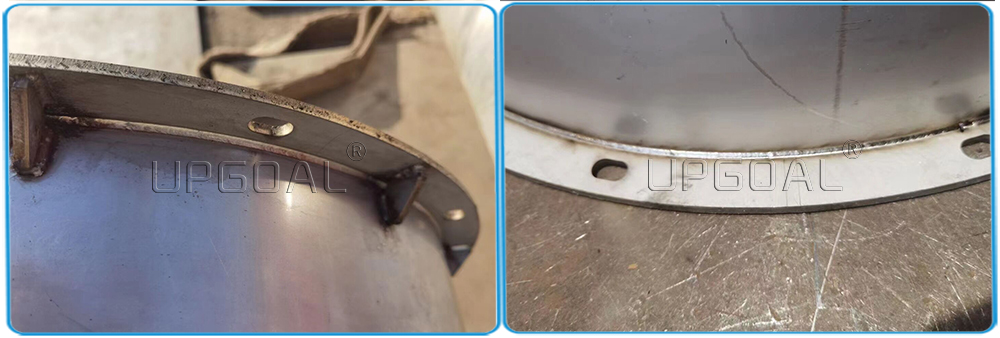

Handheld fiber laser welding machine, uses latest continuous fiber laser generator. It's equipped with China famous brand wobble weld head. The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam and fast welding speed. Welding in thin aluminum,stainless-steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes.Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.

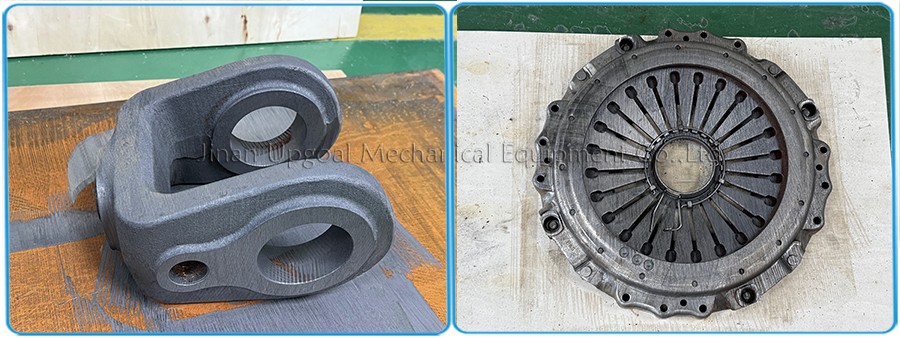

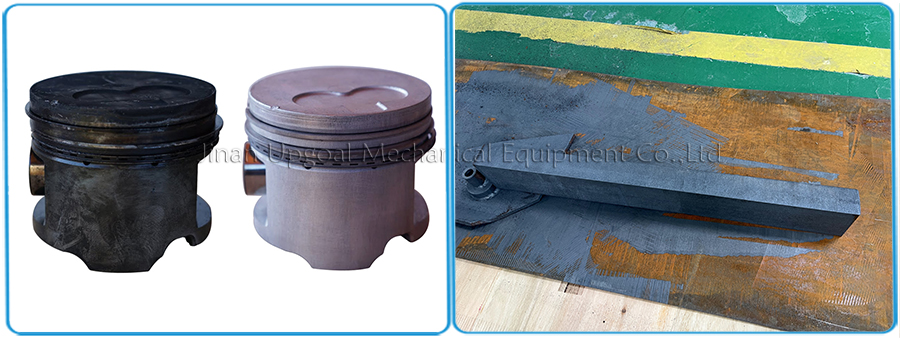

Handheld fiber laser cleaning machine is using surface decontamination capability of laser, using optical fiber transmission guide, so that cleaning can be in different position, the cleaning of different parts of an efficient, green, advanced cleaning technology, compared with chemical cleaning, without any chemicals and cleaning liquid; compared with mechanical cleaning, no grinding no stress, no supplies, minimum of matrix damage (artifacts and paintings, for a wide range of cleaning) (nuclear pipeline cleaning); the applicable object of the industrial laser cleaning machine is also more widely, to remove rust and paint, in addition to dirt, wafer surface treatment; And the cleaning degree of the handheld laser rust remover is high (to remove nano particles, the following pollution) technology has been applied in various fields (mold cleaning, cleaning and coating fighter). Widely applied in flat,curved and three-dimensional surface for work piece of elastic material and plastic with very small and deep holes.


Features

1 Intelligent welding head with temperature monitoring to monitor the protective lens for damage warning.

2 Galvanometer monitoring alarm

Protective lens for double protection

Focusing mirrors are drawer type for easy replacement

5. Welding head & cleaning head can be easy to changed.

6. Support Simplified, Traditional, Russian, English, Japanese, Korean, German, Portuguese, Spanish, Arabic

The gun head is light and easy to hold

10 Support process library preservation

11. Can provide customers with process parameter table of various silk and various plates

12. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

13.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful. Fast welding speed, 2~10 times faster than traditional welding.

14.Accurate laser cleaning for exact position and precise size. No maintenance and no consumables,dust-free,no chemicals,no pollution. Non-contact cleaning and no damage for substrate Extremely. Flexible operation for work pieces with complicated geometric construction can be realized by mechanized or hand-held laser cleaning head.

15.Easy operating need no training.

16. Safer, more environmentally friendly.

17. No consumables, small size, flexible processing, low operating and maintenance costs. Reducing daily maintenance costs and greatly increasing work efficiency.


Main Parts

Fiber Laser source: Adopting famous MAX brand continuous 2000W fiber laser source( optional 1000W/1500W or RayCUS brand ),  the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.

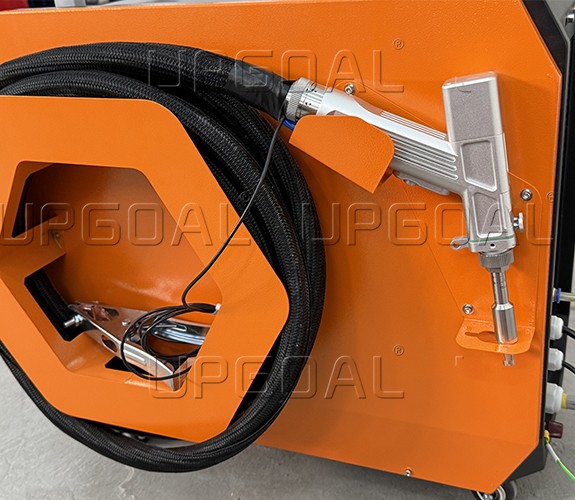

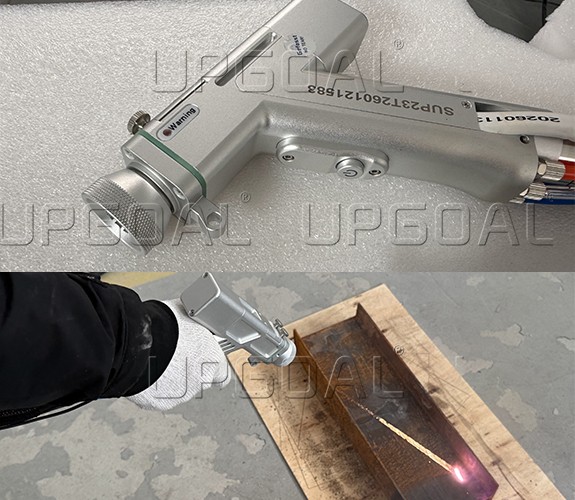

Portable single wobble handheld welding cleaning cutting head (RelFar brand FWH20) Light shape, economic deign, instead of fixed weling cleaning head.

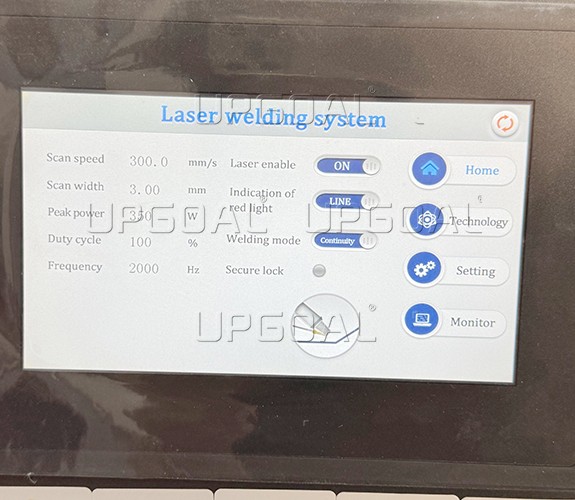

Special four function in one laser welding cleaning weld bead cleaning cutting system(RelFar): The software is easily operated as the mode of human-computer interface. Strong software function can be realized by simple touch screen.It has editable and memory functions.

Industrial Water chiller( Hanli brand): It is constant temperature industrial typeBuilt-in design, saves a lot of the machine's dimension.

With Dual wire feede: supports wire diameter 0.8/1.0/1.2/1.6mm, in order to make the welding joint full and level and to meet the required mechanical strength requirements.

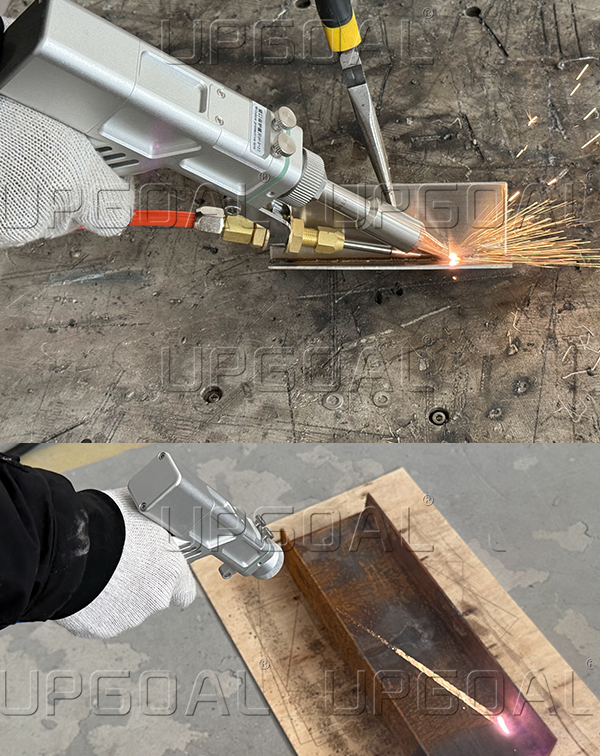

600 900 透明水印-描边蓝色2.jpg

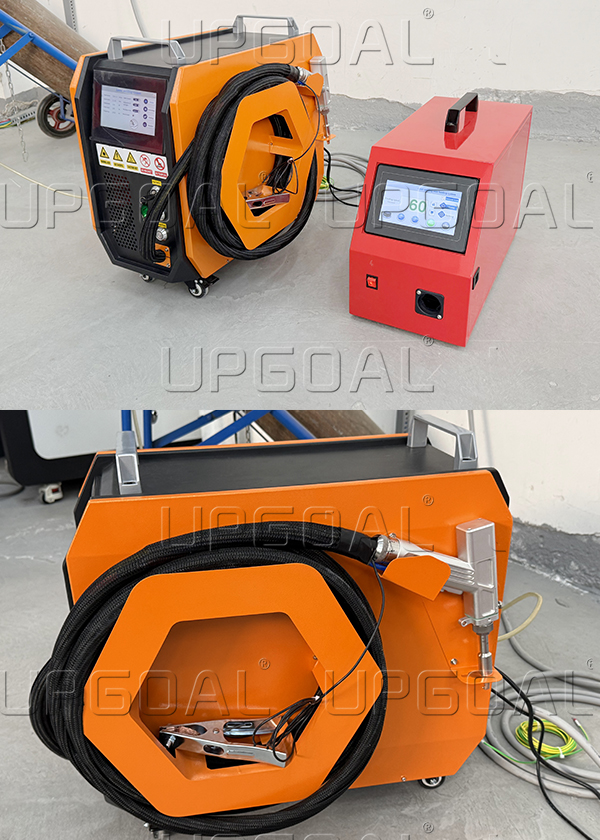

600 900 透明水印-描边蓝色21.jpg

Laser Power

1500W ( Raycus brand, RFL-C1500model)

Laser Wave Length

1070 NM±20

Fiber Length

standard10M Maximum 15M

Laser Pulse Frequency

1-20HZ

Pulse Width

0.1-20ms

Adjusted spot range

0.1-3mm

Minimum Welding pool

0.1mm

Gas source

Argon or Nitrogen

Working mode

Continuous or modulate

Welding head

Portable wobble handheld welding head(Qilin brand)

Welding system

Touch screen control panel(Qilin brand)

Beam quality

M21.2

Line width

5nm

Straight modulate

0-5KHZ

Welding speed range

0~120 mm/s

Cooling system

Water cooling, industrial water chiller( Teyu S& A RMFL-1000)

Welding thickness recommendations

0.5-4mm

Welding gap requirements

≤0.5mm

Working environment temperature

15~35 ℃

Humidity range of working environment

< 70%No condensation

Working Voltage

AC220V, 50/60Hz,single phase or AC380V, 50/60Hz, three phases

CertificateCE
