UV Laser Marking Machine
UV Laser Marking Machine

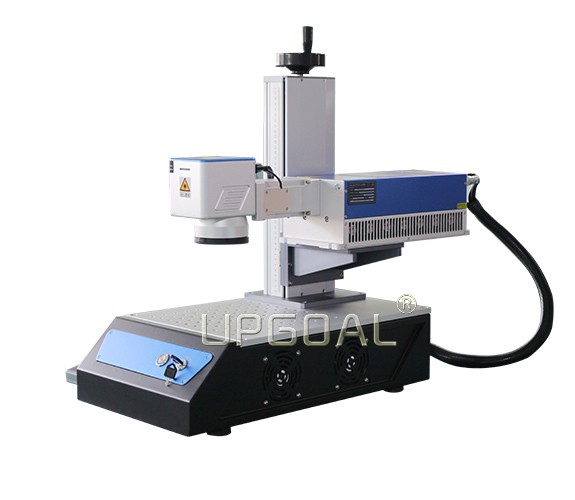

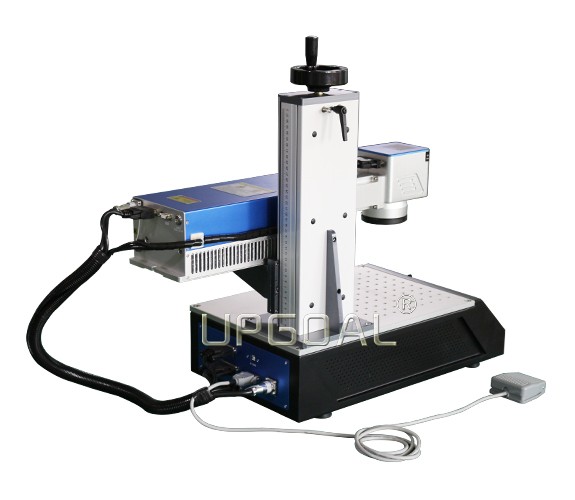

Mini desktop 3W/5W UV Laser Marking Machine for Glass/Wood/Metal

Brief Introduction:

Model: UG-UV3W
Air cooling UV laser 3W/5W Gainlaser
110*110mm marking area
Original EzCad controller

INQUIRY NOW

Applications

(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.

(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.

(3) Pharmaceutical, food, beverage and cosmetics industry.

(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.

(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..

Features

UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can acachieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power

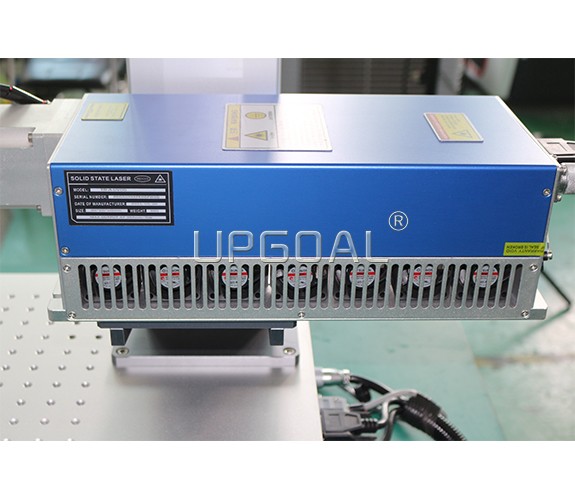

UV Laser output power

3W/5W( Brand: Gainlaser, China, air cooling)

Life of the UV laser source

100,000 hours~150000 hours

Laser type/wave length

355nm

Effective marking area

110×110mm

Beam quality

<1.1

Marking speed

400 characters per second

Repeated accuracy

±0.001mm

Minimum character

0.1mm

Minimum line width

0.015mm

Galvanometer

High speed digital galvanometer

Control system

Original EzCad controller

Control interface

Standard USB port

Focusing

Auto

Laser repetition frequency

20kHz~80kHz

Machine power

800W

Voltage

AC220V/110V, 50/60Hz, single phase

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Certificate

CE
