Applications

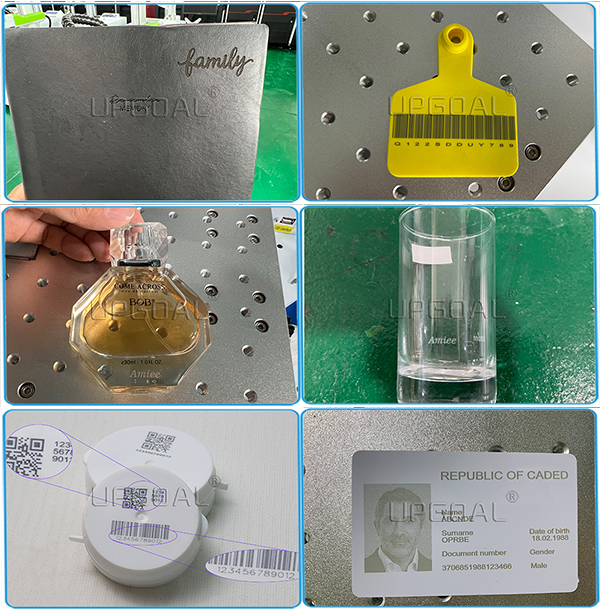

Metal nameplates, water pipe fittings, lock zippers, hardware tools, auto parts, daily products, electrical parts, digital products, building materials, craft gifts, ceramic products, food packaging, glass products, mold jewelry, mobile phone parts, consumer electronics Products, IT industry, communication industry, machine manufacturing, food and drug, medical equipment, clocks and glasses, leather clothing, electrical appliances, instruments, etc.

Technical features

Support disorderly placement processing, which greatly reduces the dependence on fixtures, expands the processing range of equipment, and improves production efficiency

The overall structure is compact, mature and stable

Rich functions to deal with different solution environments

Convenient operation, lower learning threshold, easy to use

It can be equipped with automatic conveying device and automatic assembly device to realize unmanned management and intelligence in the marking process

Features

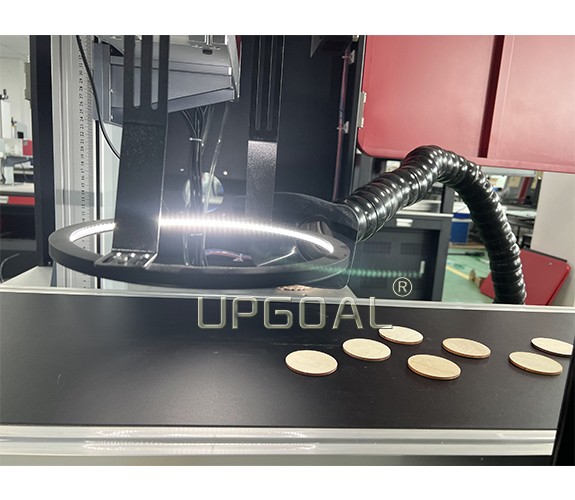

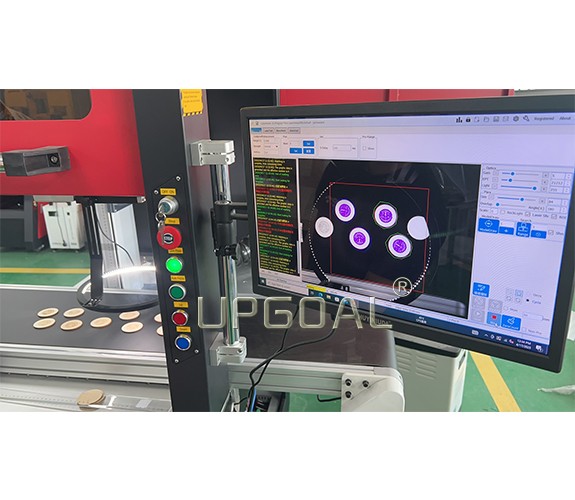

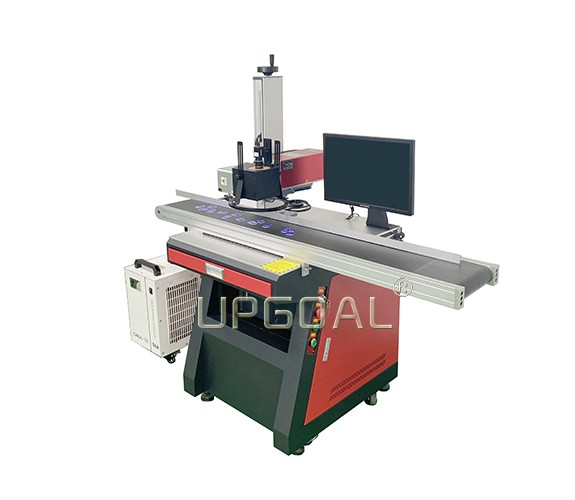

1. UV assembly line visual laser marking, combining CCD aser marking, motion control and other technologies to realize flexible automatic marking processing.

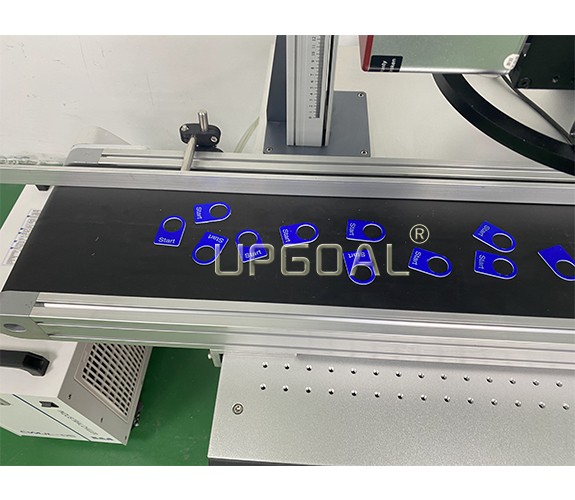

2. With conveyor belt 1.5m*0.2m, color optional, support conveyor belt customization

3. Adopted famous Gainlaser brand 5W water cooling UV laser source, with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can acachieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power.

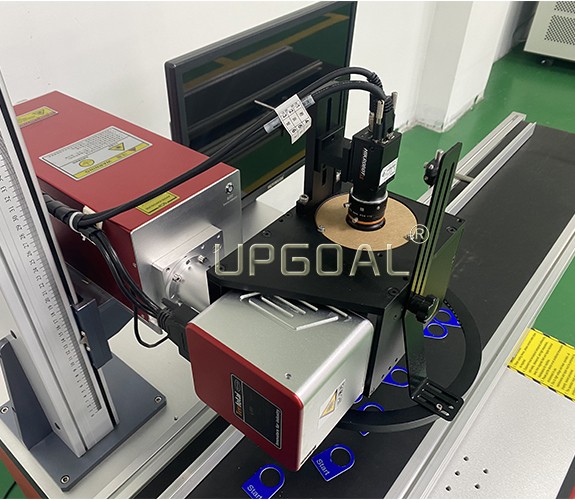

4. With high quality galvanometer  (355nm) & F-THETA scanning lens, has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area..

5. Industrial chiller CWUL-05 cooling the UV laser, ensuring long time continious working.

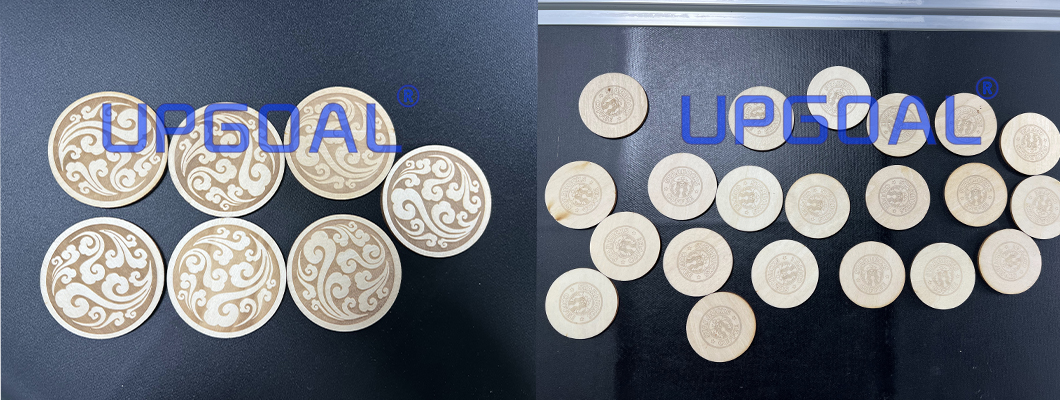

6. Marked graph and characters is permanent , will not regression  due to friction
