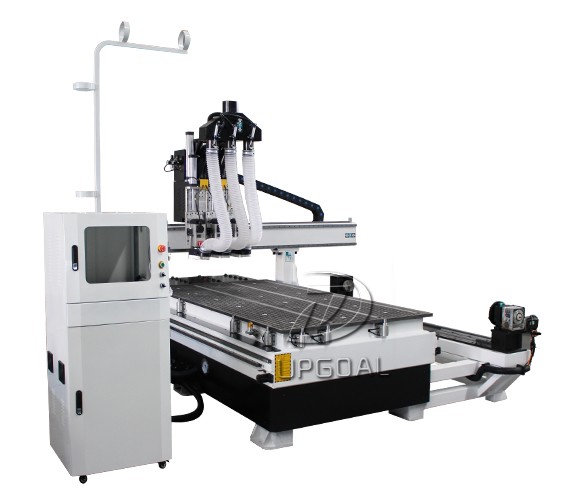

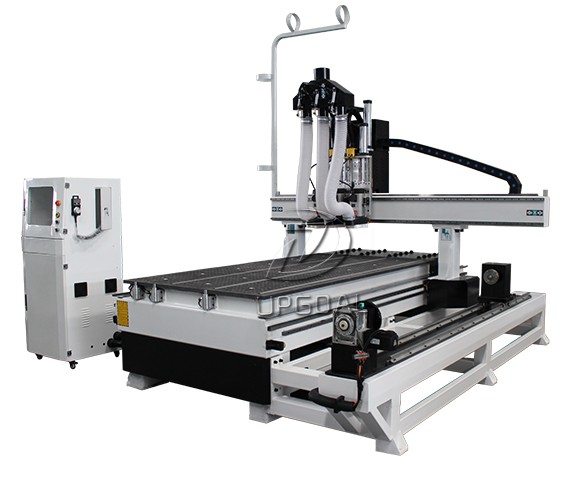

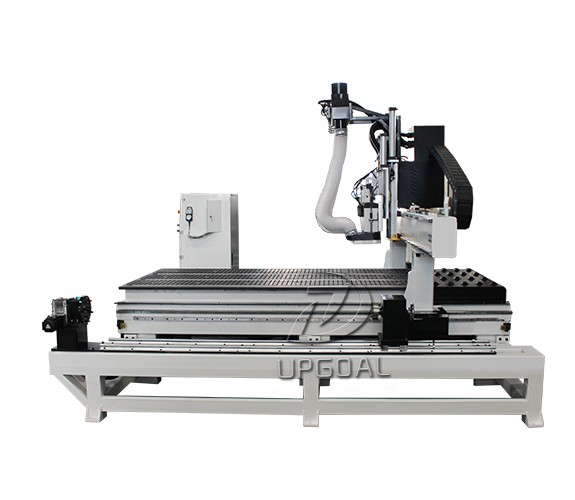

4 Axis Air Cylinder Pneumatic ATC CNC Router for 3 Spindles/Tools Changing

Brief Introduction:

Model: UG-1325ATC
Air cylinder pneumatic ATC
Each spindle power 4.5kw
Independent removable 4th axis diameter 500mm
Weihong NcStudio V10 4 axis controller



Woodworking industry: three-dimensional waved plate, cabinet door, craft door, overlaid wood composite door, screen, solid wood door, craft casement window, etc, such furniture product milling and engraving, also for shoe-cleaning machine, game machine cabinet and panel, mahjong table, computer table and auxiliary processing of panel furniture,mainly used for cabinet door, solid wood furniture, also can for MDF cutting & processing.


1. Strong welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

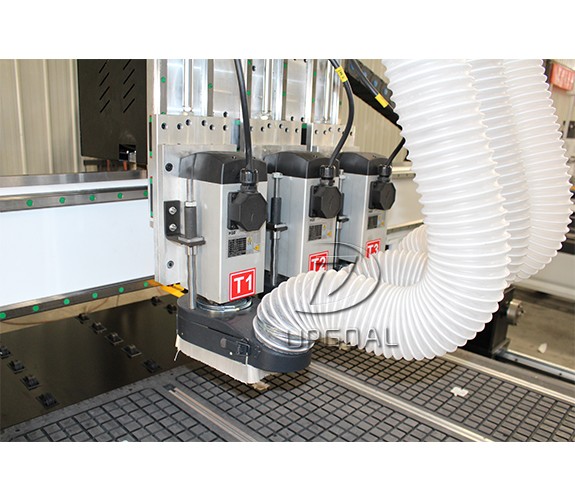

2. Three spindles air cylinder ATC cnc router is multi-spindles asynchronous operating cnc router, with 3 spindles  alternatively working, can realize the tools changing quickly, saving the time of manual changing tools, improving the processing efficiency and precision. Three spindles can be used arbitrarily, 3 spindle tools for 3 kinds of pattern engraving by turns, has the function of 3 pcs tools auto changing function, Compare the linear or disc ATC cnc router, which cost is much cheaper.

3. Large power China HQD 4.5KW air cooling spindle of three, which is with stable performance and high torque, matched with high-performance frequency inverter.

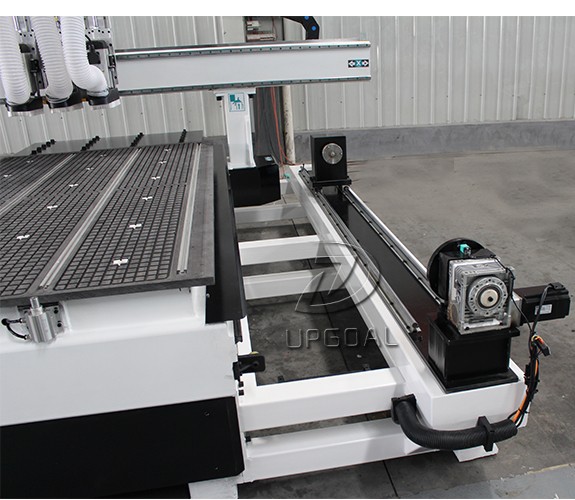

4. Extended gantry & independent removable rotary axis holder, with diameter 500mm, working length 2500mm, cylinder processing is in a special zone, each time, no need put the heavy rotary axis on the working table, saving labor and improving working efficiency.

5. Imported Hiwin, Taiwan Linear square guide rail (diameter 25mm) with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.Precision XINYUE helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency. Z- axis with precision ball screw, high precision and more durable.

6. Adopted Leadshine hybrid servo motor(86HSM) and driver(H2-2206) for XYZA-axis,  high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 25000mm/min.

7. Weihong Original NcStudio V8 control system supports air cylinder automatic tools changer, with high precision, low noise, showing the processing path, memory function after break point and power failure.

8. Vacuum adsorption system with 5.5kw air cooling vacuum pump,  vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time.

9. Dust collector (3.0kw double bags)helps to suck the dust, milling dust, saw dust during processing, keeping the working table cleaning and ensuring the machine long time using.

10. With feeding wheels on the back of machine, convenient for heavy materials loading.

11. Precisioin auto tool calibrationmore convenient for each time Z-axis 0 point setting

12. Auto lubrication system more convenient for maintenance.

13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

14. With the function of break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.

Effective working area


4th axis rotary axis

Independent removable diameter 500mm, length 2500mm, reduction gear transmission


Strong welded steel pipe welded structure

Working table

Vacuum table with aluminum alloy T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan, dia 25mm)


XINYUE Helical rack &pinion for X Y -axis,

Lead ball screw for Z-axis

Driving mode

China Leadshine hybrid servo motor(86HSM) and

driver (H2-2206for XYZA-axis

Spindle motor

4.5KW*3 air cooling( HQD, China)

Spindle speed


Tools changing method

& changing ability

Air cylinder pneumatic  ATC, 3 pcs




AC 380/220V±10%, 50/60Hz, three phases

Maximum traveling speed


Maximum engraving speed


Machine accuracy


Control system

Weihong NcStudio V10 for air cylinder ATC(4 axis version)

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity


Vacuum pump

5.5kw air cooling

Dedusting device

Dust collector, 5.5kw

Lubrication system


Tool calibration
