ATC Rotated Head CNC Router
ATC Rotated Head CNC Router

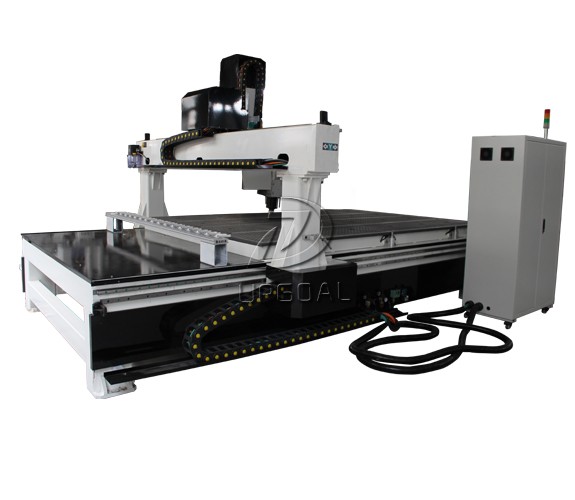

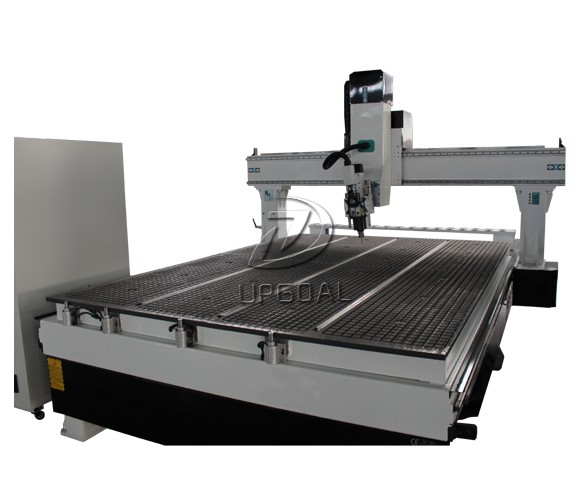

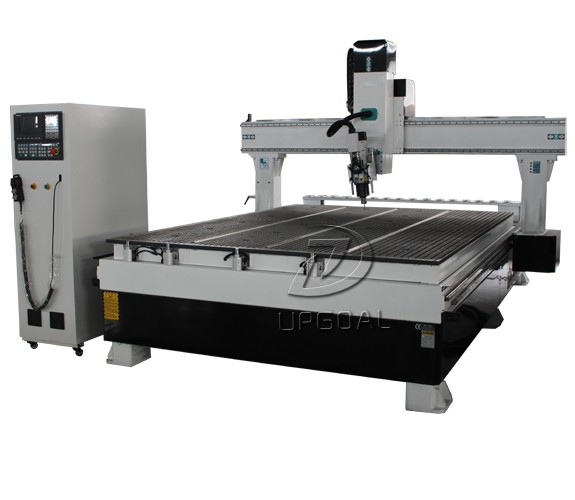

4 Axis Spindle Rotating 180 Degree ATC CNC Router Machine

Brief Introduction:

Model: UG-2030
2000*3000*500mm
Spindle 0-180 degree rotating
Linear ATC
9.0KW China ATC air cooling spindle

INQUIRY NOW

Application

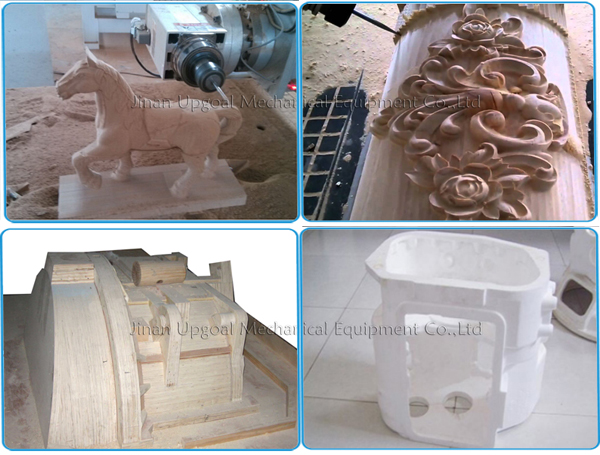

Such 0-180degree rotating spindle cnc router can make different surface carving, arc-surface milling, bending surface machining for 4D jobs,like special shaped arts, bend doors or cabinets, also can make horizontal milling,cutting and drilling works.

Also widely used for :carve  and cut on any kind of Foam (EPS) ,  do 2D  and  3D  dimension processing.



Applied in material like Solid wood, MDF, foam, plastic, stone, aluminium, copper, PVC and other hard and soft materials.


Features

1. Heavy lathe bed adopts strong square steel tube to avoid the distortion.

2. Spindle rotated 180 degree, you can make 2D/3D/4D carving on curved surface, arc-surface,bending surface, larger dimension mould, statues, sculptures, cylinders and so on...

3. 500mm Z-axis height for heavy and thick materials.

4. Japan Yaskawa 850W servo motor and driver for XYZ-axis, ensuring the processing speed & precision.

5. Japan Shimpo Reducer for servo motor, used for replace traditional rack and belt,to make machine more powerful and stable

6. 4 axis SYNTEC 6MB control system with industrial control system and handwheel, safe and reliable operation, efficient speed to read the code, and have the online analog functions, on-line monitoring function to ensure efficient and safe processing.

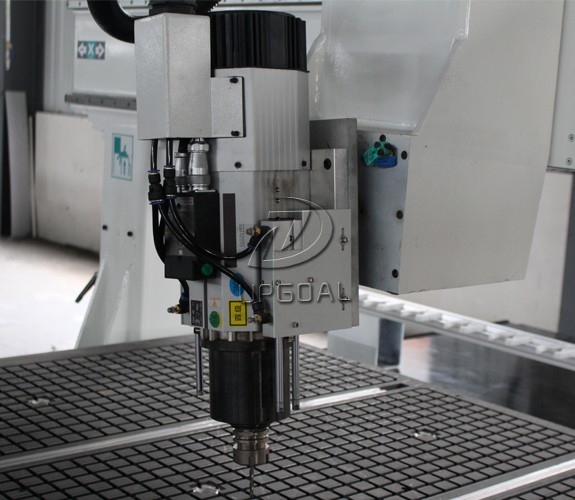

7. Powerful 9KW China HQD ATC air cooling spindle , can move 0-180 degree.

8. Vacuum adsorption and dust collection system: vacuum adsorption table, adopted bakelite table, high density, no deformation and high adsorption, can for different size materials adsorption, saving time compared the traditional mechanical plate fixing, the vacuum pump can choose oil-less vacuum pump to solve water cooling vacuum pump changing water issue in the frigid weather; Dust collector helps to suck the dust, milling dust, saw dust during processing, keeping the working table cleaning and ensuring the machine long time using.

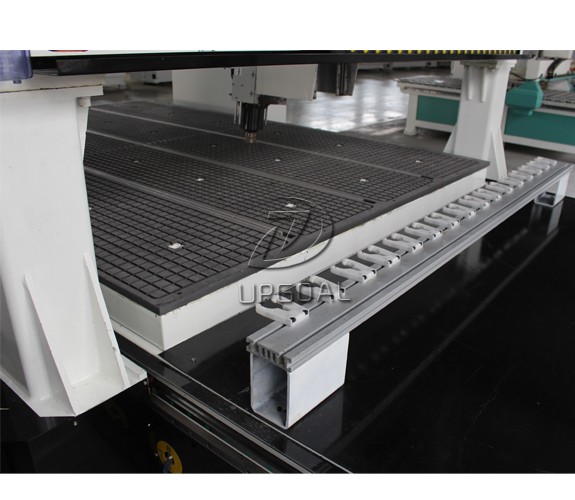

9. Adopted the advanced Linear ATC system which can change 6-16 pieces tools intelligently. Tools changing time is within 10 seconds greatly improved production efficiency.

10. Imported Hiwin Taiwan diameter25mm linear guide rail with Ball bearing slide block which ensure High Weight capacity,  high precision, smooth and steady running.

11.Advanced files pre-reading and verifying function. Mistakes in G code files can be corrected timely.

12. Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.

13. Advance prediction algorithm for three-dimension curve which ensured stable curvilinear motion with suitable speed and precision.

14. With the function of break-point memory ,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.





Effective working area

2000(X)mm*3000(Y)mm*500(Z)mm

Materials

More thick steel pipe welded machine holder bed, cast iron gantry

Working table

Vacuum table with aluminum T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan, diameter 25mm)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Japan Yaskawa 850W servo motor and driver with reducer( Shimpo, Japan)

Spindle motor

9.0KW China HQD ATC air cooling spindle

0-180degree rotating

Spindle speed

12000-24000rpm

Tools changing method&

changing ability

Linear auto tool changer (16 pcs)

Inverter

Delta

Voltage

AC 380V/220V± 10%, 50/60Hz, three phases

Maximum traveling speed

60000-800000mm/min

Maximum engraving speed

25000-40000mm/min

Machine accuracy

0.01mm

Control system

SYNTEC 6MB control system( Taiwan)

Hand wheel

SYNTEC HPG( hand pulse generator)

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Dedusting device

Dust collector

Lubrication system

Auto

Tool calibration

Auto

Certificate

CE
