Applications

Such 0-180degree rotating spindle cnc router can make different surface carving, arc-surface milling, bending surface machining for 4D jobs,like special shaped arts, bend doors or cabinets, also can make horizontal milling,cutting and drilling works.

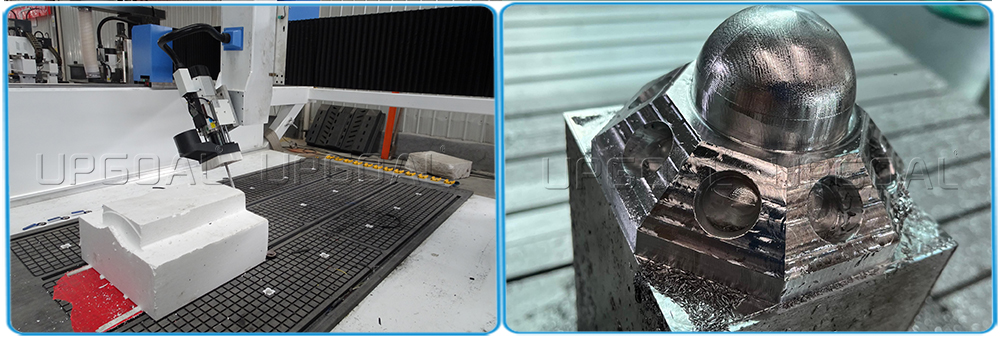

Also widely used for :carve  and cut on any kind of Foam (EPS) ,  do 2D  and  3D  dimension processing.

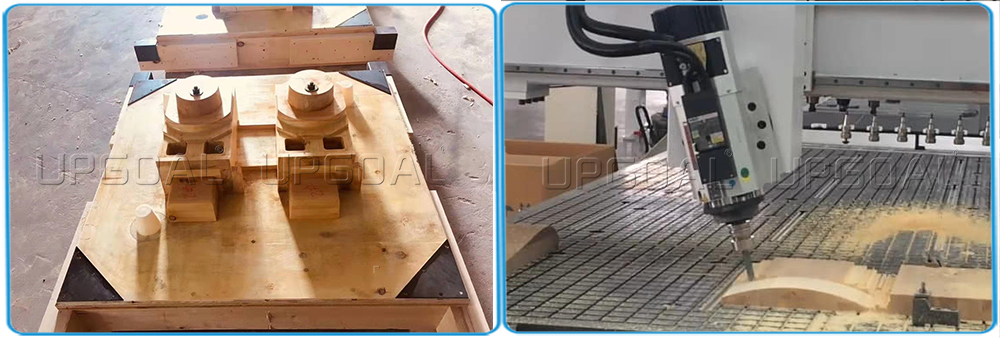

Applied in material like Solid wood, MDF, foam, plastic, stone, aluminium, copper, PVC and other hard and soft materials.

Features

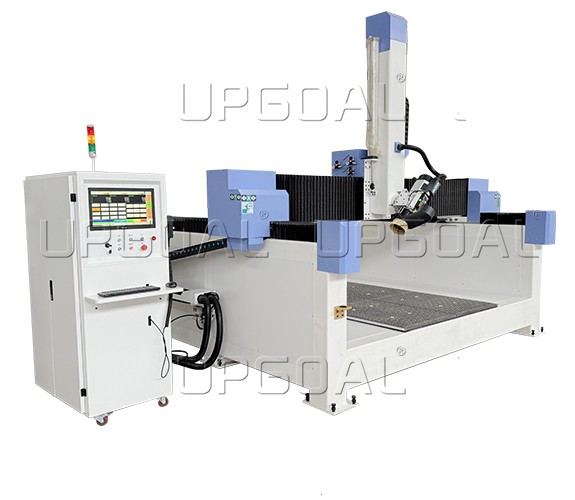

1. Welded strong square steel tube structure as a whole with vibration temper aging treatment ensures no deformation for long time.

2. Heavy lathe bed adopts strong square steel tube to avoid the distortion.

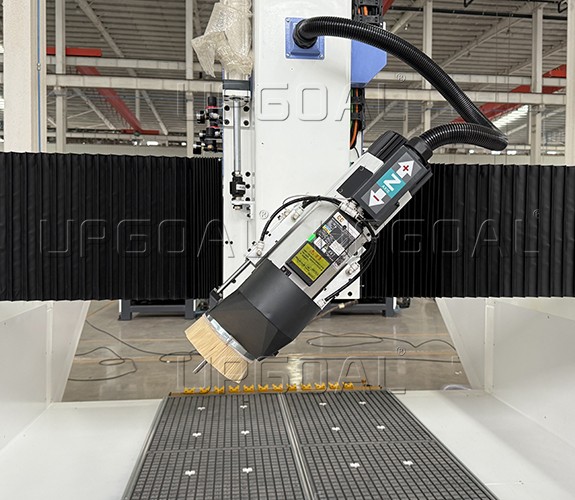

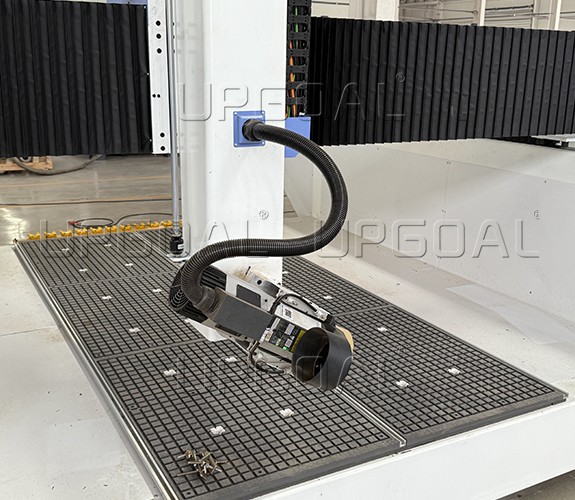

3. Spindle rotated 180 degree, you can make 2D/3D/4D carving on curved surface, arc-surface,bending surface, larger dimension mould, statues, sculptures, cylinders and so on...

4. 700mm Z-axis feeding height & effective travelling for heavy and thick materials.

5. Japan Yaskawa 850W servo motor and driver for XYZ-axis, ensuring the processing speed & precision.

6.Japan Shimpo Reducer for servo motor, used for replace traditional rack and belt,to make machine more powerful and stable

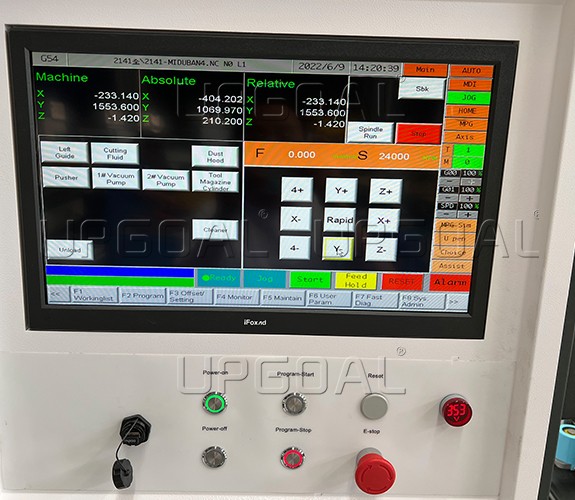

7. The latest SYNTEC Taiwan 60CB high performance industrial control system, intelligent controlling, has the protection function for beyond the working table, avoiding the mechanical collision due to the larger designed layout. Intelligent control the speed, can control the processing speed severally, truly improve the processing efficiency and lengthen the tools life time, increase the rate of finished products. Can do multi layer 3D processing, fast and smooth do three-dimensional processing, engraving and cutting.

8.Powerful 9.0KW China CC ATC air cooling spindle , high precision, low noise, high RPM, long life time , and stable moving.

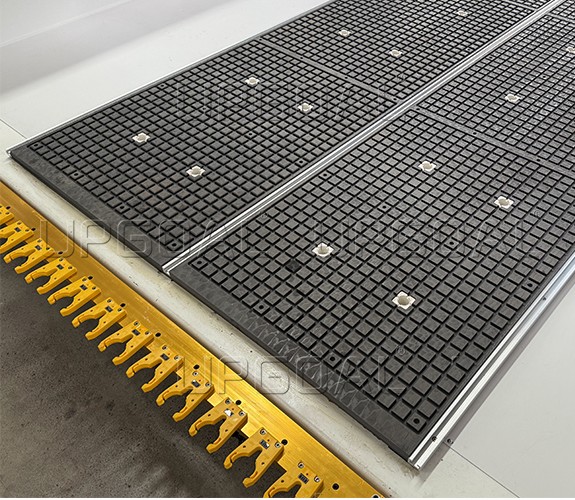

9.Vacuum adsorption system: vacuum adsorption table with aluminum alloy T slot & pilot pin & feeding wheels , adopted bakelite table, high density, no deformation and high adsorption, can for different size materials adsorption, saving time compared the traditional mechanical plate fixing, the vacuum pump is 2 sets 7.5kw air cooling type to solve water cooling vacuum pump changing water issue in the frigid weather.With feeding wheels on the back of machine, convenient for heavy materials loading.

10. Adopted the advanced Linear ATC system which can change 12 pieces tools intelligently. Tools changing time is within 10 seconds greatly improved production efficiency.

11. Imported Hiwin Taiwan diameter 30mm linear guide rail with Ball bearing slide block which ensure High Weight capacity,  high precision, smooth and steady running.

12.Advanced files pre-reading and verifying function. Mistakes in G code files can be corrected timely.

13. Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.

14. Advance prediction algorithm for three-dimension curve which ensured stable curvilinear motion with suitable speed and precision.

15. With the function of break-point memory ,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.
