Applications

Woodworking industry: three-dimensional waved plate, cabinet door, craft door, overlaid wood composite door, screen, solid wood door, craft casement window, etc, such furniture product milling and engraving, also for shoe-cleaning machine, game machine cabinet and panel, mahjong table, computer table and auxiliary processing of panel furniture,mainly used for cabinet door, solid wood furniture, also can for MDF cutting & processing.

Features

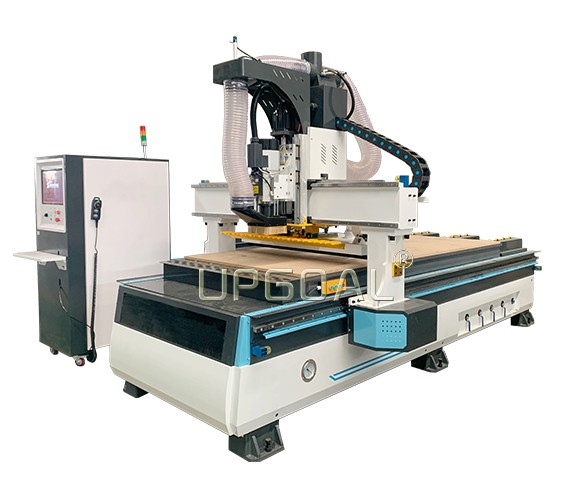

1.Whole machine is welded by strong steel structure, with tempering aging treatment, no distortion, long time using.

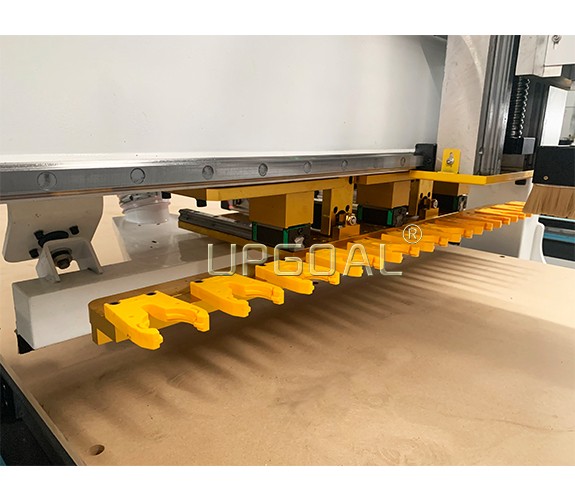

2. Linear type auto tool changer system, total 12pcs(or more) bits in the tool magazine, can change the needed bits intelligently, saving bits changing time, improving efficiency.

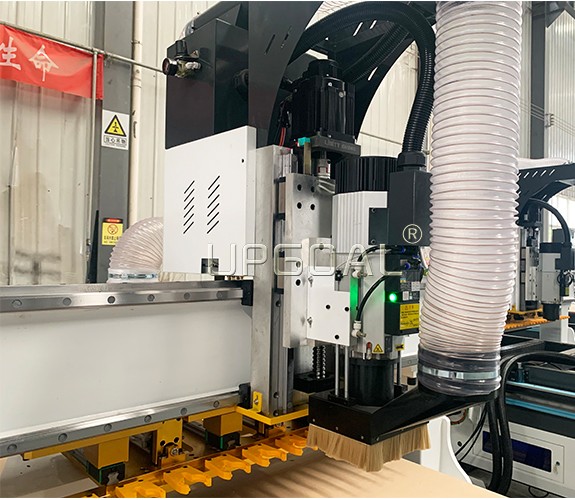

3.Adopted with  famous China HQD 9.0KW ATC air cooling spindle, high precision, low noise, high RPM, long life time , and stable moving.

4.Famouns Delta brand 11KW inverter, for spindle muti-speed adjusting.

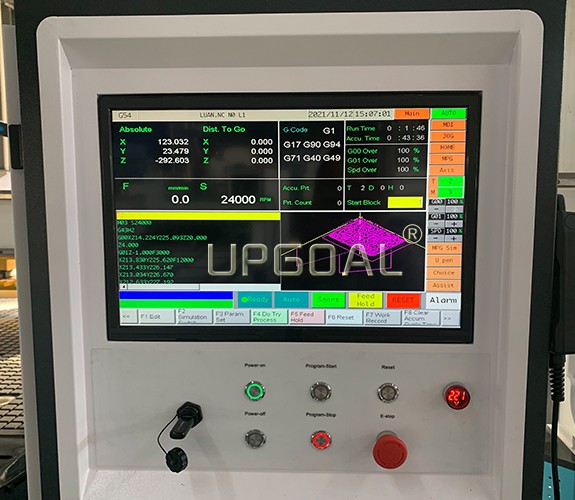

5.The latest SYNTEC Taiwan 60CA high performance industrial control system, intelligent controlling, has the protection function for beyond the working table, avoiding the mechanical collision due to the larger designed layout. Intelligent control the speed, can control the processing speed severally, truly improve the processing efficiency and lengthen the tools life time, increase the rate of finished products. Can do multi layer 3D processing, fast and smooth do three-dimensional processing, engraving and cutting.

6. Powerful China Leadshine 1.5KW servo motor and driver for XYZ-axis, suitable all kinds of heavy solid wood engraving and cutting, high precision and fast speed.

7. Japan Shimpo reducer for servo motor, used for replace traditional rack and belt,to make machine more powerful and stable.

8. Linear square guide rail, Hiwin, Taiwan, dia 30mm for XYZ-axis, double raw four columns, good weight capacity, stable moving and ensuring the precision. Germany WHM Heilon helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

9.Vacuum adsorption system: vacuum adsorption table with aluminum alloy T slot & pilot pin & feeding wheels , adopted bakelite table, high density, no deformation and high adsorption, can for different size materials adsorption, saving time compared the traditional mechanical plate fixing, the vacuum pump is 7.5kw air cooling type to solve water cooling vacuum pump changing water issue in the frigid weather.With feeding wheels on the back of machine, convenient for heavy materials loading.

10. 5.5kw double bags dust collector helps to suck the dust, milling dust, saw dust during processing, keeping the working table cleaning and ensuring the machine long time using.

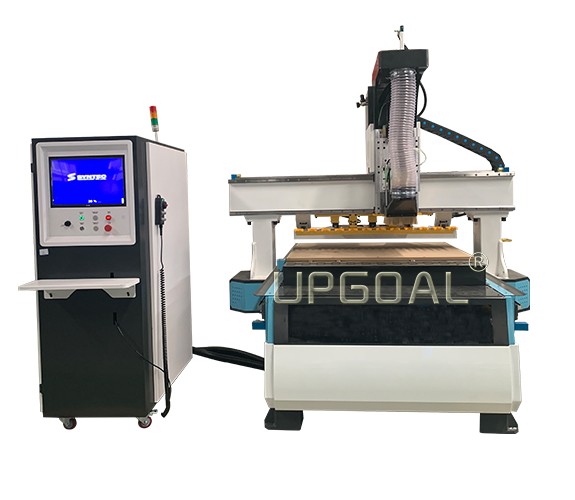

11. Indpendent SYNTEC control cabinet with famous brand electronic parts.

12. Has material pusher

13.Precisioin auto tool calibration, more convenient for each time Z-axis 0 point setting.

14.Auto lubrication system more convenient for maintenance.

15.Advanced file processing function, can timely correct faults, and good compatibility forType3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.

16. Memory function after power failure and break point, can auto back to zero point and correct the faults, ensuring the precision for long time working and saving materials.
