Brief Introduction:

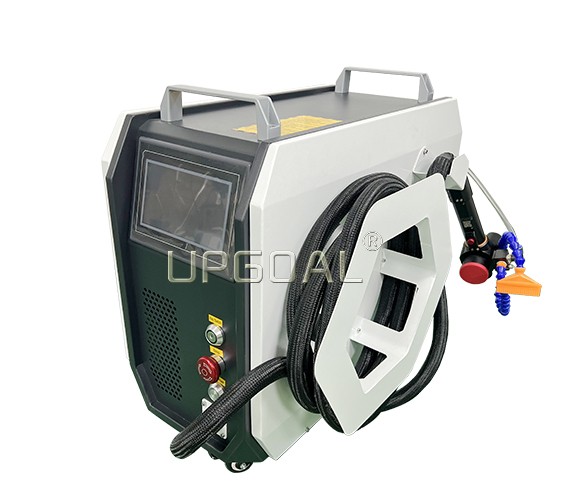

Model: UG-2000LC
Pulse fiber laser source 200W, JPT
Scanning width: 80*80/130*130/150*150mm
8 modes cleaning method

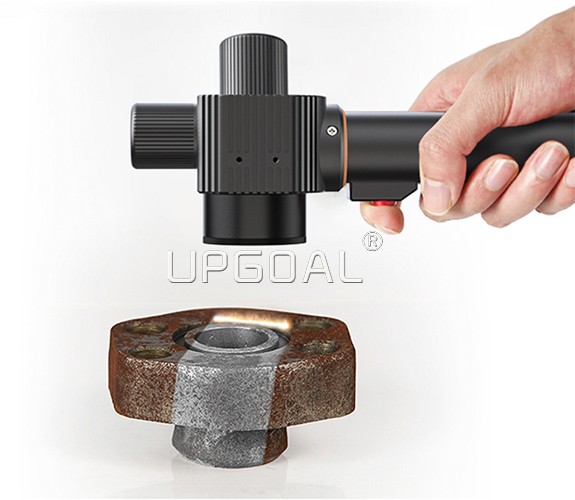

Cleaning gun weight: about 850g
Applications
Mainly used for product rust removal, paint removal and cleaning of high-value components. The powerful power will not damage the objects to be cleaned, nor will it pollute the environment.
Application scope includes: component combination, welding surface pretreatment, metal surface rust removal, paint removal (full surface rust removal, paint removal or designated area rust removal, paint removal) and cleaning of various industrial products or molds.
Application | |||
Rust Removal | Oxide Removal | Molding Cleaning | Surface Preparation |
Coatings Removal | Weld Pre-treatment | Gluing Pre-treatment | Removal of Oil and Grease |
Paint Removal | Surface Cleaning | Stain Removal | Surface Roughening |
Tool Cleaning | Historic Restoration | Selective Paint Removal | Precise Cleaning |
Features
1. Better cleaning effect

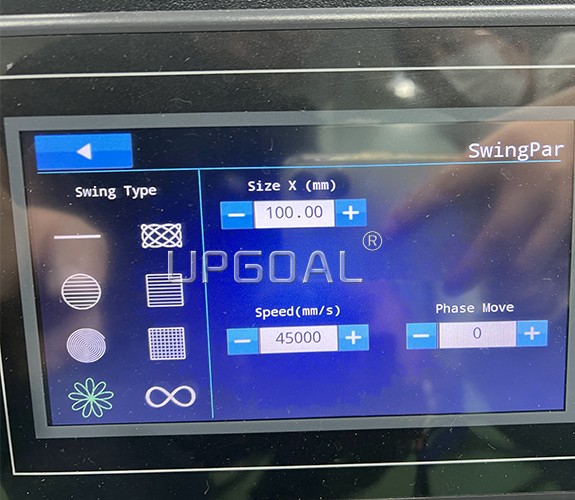

8 optional cleaning modeswhich can be applied to a variety of complex cleaning scenarios. Supports slow rise and fall of laser power, real-time
control, better cleaning effect, and no damage to the substrate.
2. Higher cleaning efficiency, cleaning width up to 150*150mm

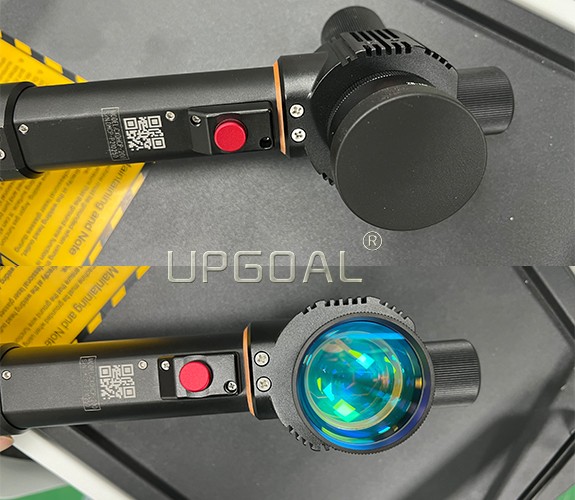

Imported quartz field mirror, can support higher laser power, better stability, and higher efficiency. Supports a variety of
field mirror specifications to adapt to more application scenarios.
3. Powerful software functions
10 safety alarm protection systems and stronger product stability. Supports 10\Modbus multiple communication methods,
richer control functions. At the same time, it supports LOGO, interface, and specific function customization.
4. Flexible and rich hardware configuration compatible with mainstream lasers in the market
Uses self-developed high-speed galvanometer motor, with more reasonable product structure design and higher stability.
Compatible with the mainstream lasers on the market (OCS output port), supports structure customization, and the cable
can support up to 50 meters.
5. Support 15 language switching
Supports 15 language switching, which can be used by users in more countries. Human-computer communication is
barrier-free.
Laser interface | QCS[17/20] |
Cleaning width | <150mm |
Cleaning length | <150mm |
Cleaning efficiency | 0.08~8m2/minutes |
Cleaning speed | <30000mm/s |
Cleaning method
| Straight line/rectangle/ellipse/wave) petal/spiral/grid/8-shaped |
Laser power | 200W Pulse( MAX brand) |
Temperature protection | 2 |
Water cooling water circuit | NO |
Lens protection gas path | NO |
Lens reflection wavelength | 1050~1090nm |
Power supply | ±15V/3A |
Working temperature | -15~65℃ |
Storage temperature | -10~60℃C |
Gun weight | About 850g |
Gun body size | 253*66*97mm(L*W*H) |
Voltage | AC220V/110V,50/60Hz, single phase |
