Laser Cleaning Machine
Laser Cleaning Machine
1500W/2000W/3000W Continuous Fiber Laser Cleaning Machine for Metal Rust

Brief Introduction:

Model: UG-3000LC
1500W/2000W/3000W continuous fiber
300mm cleaning width
RelFar single wobble laser cleaning system
10M/20m fiber cable length

INQUIRY NOW

Applications & Features

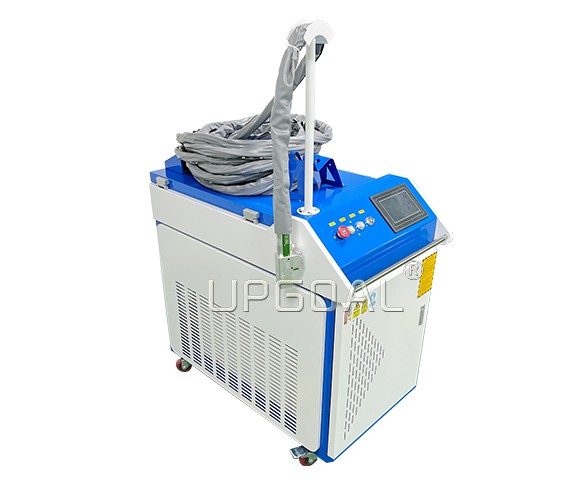

Handheld laser cleaning machine uses high-frequency and high-energy laser pulses to irradiate the surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes thesurface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.

aser cleaning machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser cleaning equipment, using handheld swing cleaning head, touch screen and button control, combined with the advanced integrated control system, the precision CNC fiber laser cleaning machine is assembled. It meets the cleaning requirements of complex shapes and fine positioning in the industrial processing field, and achieves higher cleanliness cleaning effects and lower overall cost production benefits.



new industrial laser cleaning machine is using surface decontamination capability of laser, using optical fiber transmission guide, so that cleaning can be in different position, the cleaning of different parts of an efficient, green, advanced cleaning technology, compared with chemical cleaning, without any chemicals and cleaning liquid; compared with mechanical cleaning, no grinding no stress, no supplies, minimum of matrix damage (artifacts and paintings, for a wide range of cleaning) (nuclear pipeline cleaning); the applicable object of the industrial laser cleaning machine is also more widely, to remove rust and paint, in addition to dirt, wafer surface treatment; And the cleaning degree of the handheld laser rust remover is high (to remove nano particles, the following pollution) technology has been applied in various fields (mold cleaning, cleaning and coating fighter)


Main Features

Accurate laser cleaning for exact position and precise size.
2. Widely applied in flat,curved and three-dimensional surface for work piece of elastic material and plastic with very small and deep holes.
3. Flexible operation for work pieces with complicated geometric construction can be realized by mechanized or hand-held laser cleaning head.
4. No maintenance and no consumables,dust-free,no chemicals,no pollution.
5. Non-contact cleaning and no damage for substrate Extremely.
6. Low cleaning cost and High cleaning efficiency.

Main Parts

Fiber Laser source: Adopting famous MAX 3000W/2000W/1500W ,the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.

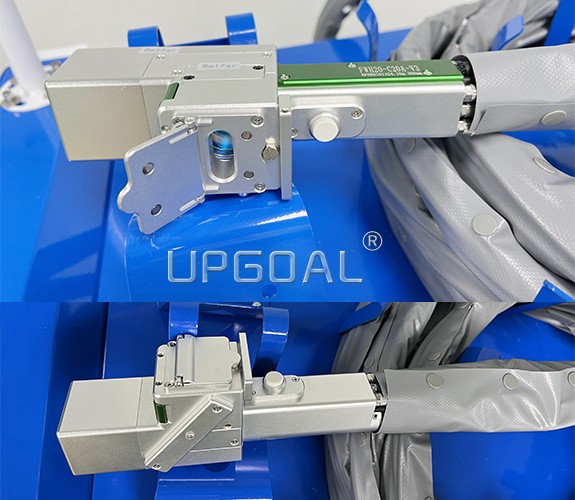

Portable single wobble handheld welding head ( RelFar brand, weight 0.78kg)
Light shape, economic deign, instead of fixed weling head, it offers so much welding convenience for welding big, or heavy or complex structure articles.

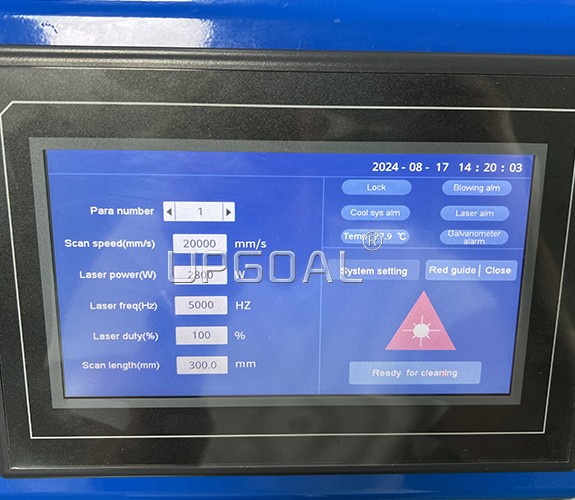

 Professional touch screen laser cleaning system( RelFar brand) withmaximum 300mm scanning width : it has variety of fiber interface and can be adapted to various lasers; fast and simple replacement of protective lenses; with the optimized optical design, built-in water cooling can work steadily for a long time under high power.

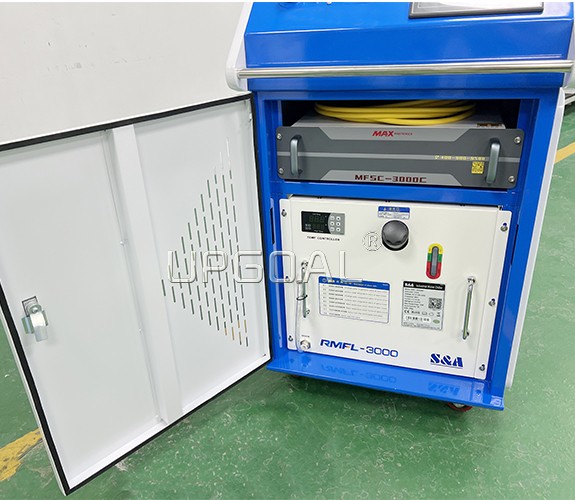

Industrial Water chiller( Teyu S&A RMFL-3000/2000/1500)One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.

600 900 透明水印-描边蓝色2.jpg

Laser Power

1500W/2000W/3000W

Fiber interface

QBH

Laser Wave Length

1070 NM±20nm

Laser Source

1500W/2000W/3000W

(MAX brand,MFSC-1500/20003000)

Fiber Length

Standard 10meter (or 20m customized)

Laser Pulse Frequency

1-20HZ

Pulse Width

0.1-20ms

Adjusted spot range

0.1-3mm

Collimating focal length

F50mm

Focus length

F00mm

Scanning width

0-300mm

Scanning speed

20000mm/s

Aluxiliary pressure

≥0.5-0.8Mpa

Spot adjustment range

05mm

Gas source

Argon or Nitrogen or dry clean compressed air

Effective clear aperture

Φ22

Working mode

Continuous

Cleaning head

Portable single wobble handheld welding cleaning head(RelFar brand, 0.78kg)

Cleaning system

RelFar brand, ,7”display screen and V2 mother board

Cooling system

Water cooling, industrial water chiller,Teyu S& A brand, RMFL

Working environment temperature

15~35 ℃

Humidity range of working environment

< 70%No condensation

Working Voltage

AC380V, 50Hz, three phases

AC380V, 50Hz, single phase

Total power

10,000W/12,000W/15,000W
