Brief Introduction:

Model: UG-3030

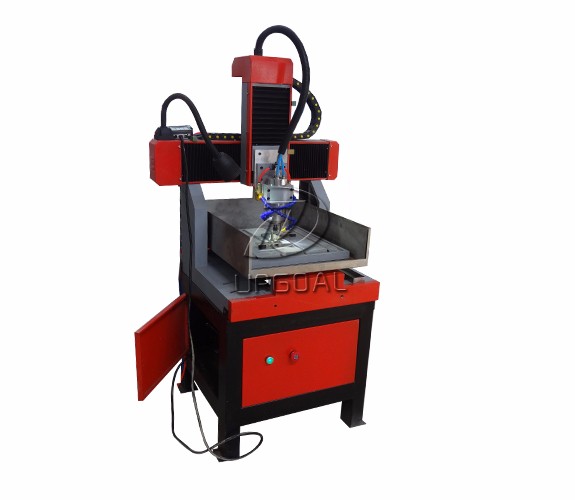

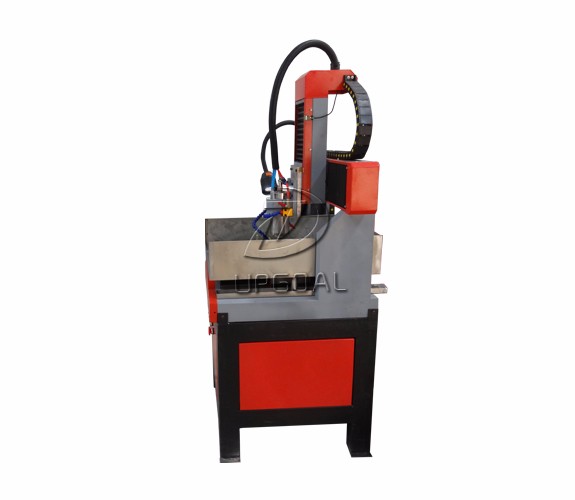

Jade cnc router cnc engraving machine
300*300mm working area
Stainless steel water slot cooling system
Cast iron structure
DSP offline control

INQUIRY NOW

Applications

Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.

Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.



Features

1.Whole cast iron materials, with good rigidity and stable.

2.With platform moving type, stable and durable for long time using. Ensure high positioning accuracy.

3.XYZ three axis are with Hiwin Linear square  guide rail and block. Ballscrews transimission for all axis. Durable running with Higher accuracy.

4.Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate, iron plate engraving but also for wood working. It can cut 20-30mm thickness acrylic by one time cutting. The fine engraving is more smoothy and clear by large power spindle.

5. Dust-Proof desgin for XZ-axis, protect the guide rail and gears pinon racks from the Dust&Dirt, help to ensure machien working performance.

6. Stainless steel water slot cooling system, ensuring the processing hard metal & stone.

7. DSP offline system, when working no need use computer, just use DSP control cnc router working, easy to operate and more convenient.

8. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adpot high quality electornic parts, minimizig fault rate, Adopt high flexiable cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

9.With the function of Break-point memory ,power failure resuming and automatic home/origin correction function. The Working can be resumed afer unexpected situations or next day.effectively ensure long time working precision.

10. Working pause, speed adjust, working depth adjust at any time while working. Preview the 2D&3D working result With simulation fucntion. Variable Speed is suitable for varisou materials and industry.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection fucntion which can stop the mechanical collision due to unproper size given to the design.


Effective working area

300(X)mm*300(Y)mm*150(Z)mm

Materials

Whole cast iron materials

Cooling system

Stainless steel water slot cooling system

Working table

Aluminum alloy T Slot with PVC protection layer

Moving type

Platform moving

Guide rail

Linear square guide rail, Hiwin, Taiwan

Transmission

Lead ball screw for XYZ-axis

Driving mode

Stepper motor and driver for XYZ-axis

Spindle motor

2.2kw water cooling

Spindle speed

0-24000rpm

Inverter

Sunfar

Voltage

AC 220V±10%, 50/60Hz, single phase or

AC 380V±10%, 50/60Hz, three phases

Traveling speed

>8000mm/min

Engraving speed

>6000mm/min

Machine accuracy

0.03mm

Control system

DSP offline

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Tool calibration

Auto

Certificate

CE
