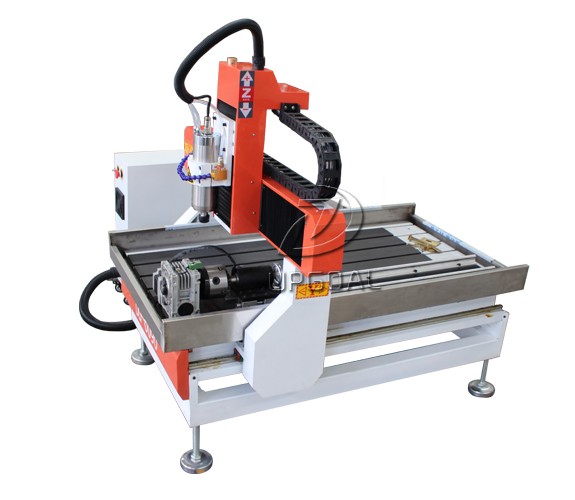

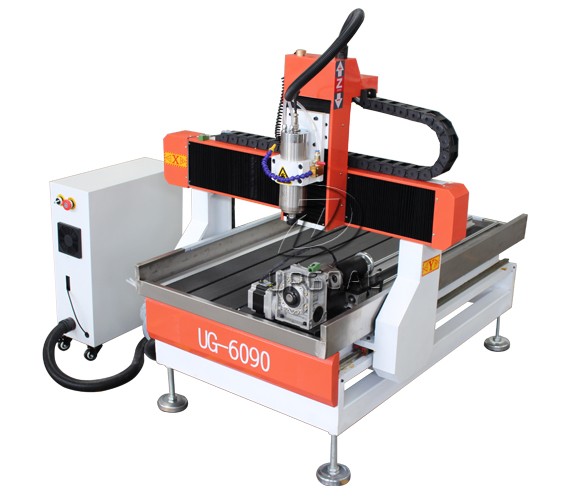

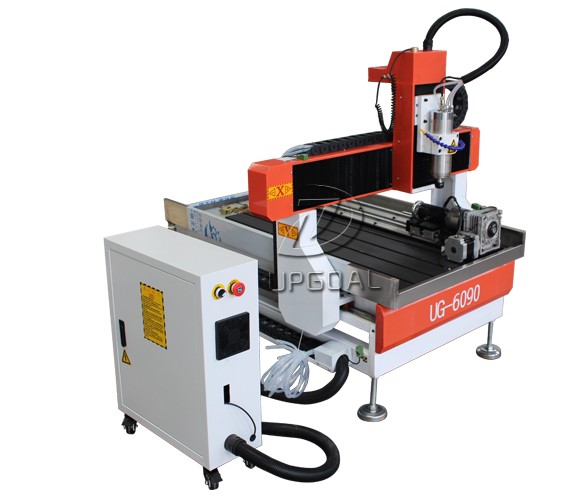

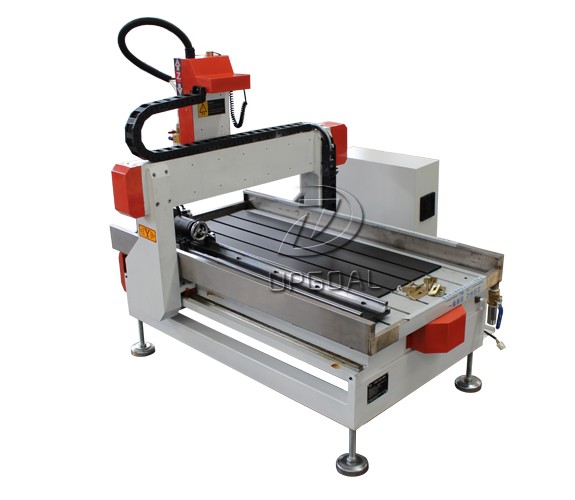

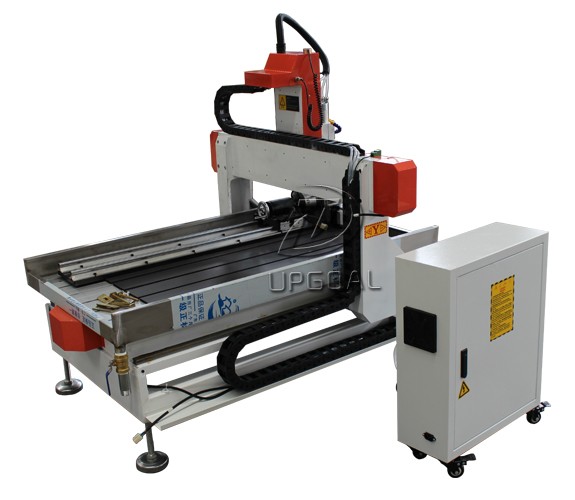

Mini 4 Axis 6090 CNC Engraving Cutting Machine with Mach3 Control System

Brief Introduction:

Model: UG-6090
Mini desktop type
2.2kw water cooling spindle
Mach3 4 axis control system
Rotary axis diameter 100mm
Stainless steel water slot cooling

INQUIRY NOW

Applications

Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.

Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.


Features

1.Cast iron lathe bed. Stable Running with less vibration.

2.With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.

3.Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate, iron plate engraving but also for wood working. It can cut 20-30mm thickness acrylic by one time cutting. The fine engraving is more smoothly and clear by large power spindle.

4.XYZ three axis are with linear square guide rail, Hiwin, Taiwan. Ball screws transmission for all axis. Durable running with Higher accuracy.

5.4th axis rotary axis diameter 80mm, length 600mm, reduction gear transmission.

6.Stainless steel water slot cooling system, ensuring the processing hard metal & stone.

7.Dust-Proof design for XZ-axis, protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.

8. Mach3 4 axis control system, with USB port for desktop or laptop computer, supporting XYZA-axis moving together, showing the processing path , more convenient.

9.Wireless hand wheel and wireless auto tool calibration, more convenient for operation.

10. China famous Chuangwei brand steppermotor and Leadshine stepper driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

11.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate, Adopt high flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

12. Auto tools calibration for Z-axis.

13.With the function of break-point memory,power failure resuming and automatic home/origin correction function.The Working can be resumed after unexpected situations or next day.effectively ensure long time working precision.

14.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

15. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

Effective working area

600(X)mm*900Y)mm*200(Z)mm

4th axis rotary axis Diameter 100mm, working length 600mm, reduction gear transmission

Materials

Square steel tube machine holder, cast iron machine bed, cast aluminum gantry

Cooling system

Stainless steel water slot cooling system

Working table

Aluminum alloy T Slot with PVC protection layer

Moving type

Gantry moving

Guide rail

Linear square guide rail, Hiwin, Taiwan, diameter 20mm

Transmission

Lead ball screw for XYZ-axis

Driving mode

Stepper motor and driver for XYZ-axis

Spindle motor

2.2kw water cooling

Spindle speed

0-24000rpm

Inverter

Sunfar

Voltage

AC 220V±10%, 50/60Hz, single phase

Traveling speed

>8000mm/min

Engraving speed

>6000mm/min

Machine accuracy

0.03mm

Control system

MACH3 4 axis control system with USB port

Handwheel Wireless, for Mach3

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ºC

Relative humidity

30%-75%

Tool calibration

Auto

Certificate

CE
