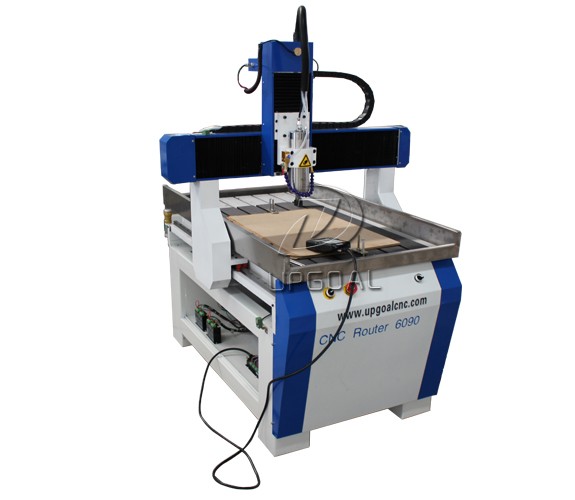

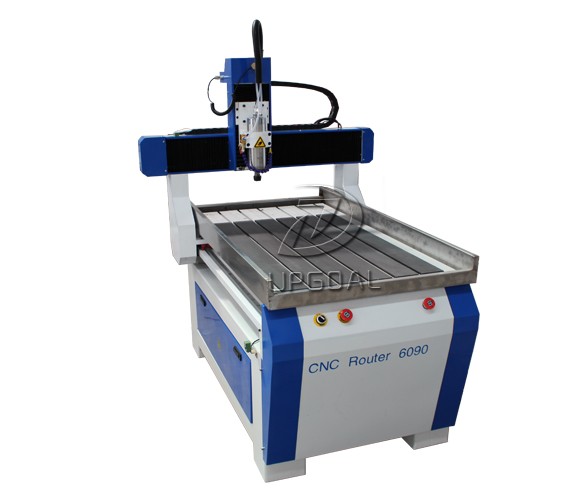

6090 Model 4 Axis Wood Metal Stone CNC Router Machine with DSP Offline Control

Brief Introduction:

Model: UG-6090
2.2kw water cooling spindle
600*900*150mm working area
DSP A11E offline control
Stainless steel water slot cooling system
4th axis rotary axis diameter 80mm

INQUIRY NOW

Applications

Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.

Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.


Features

1.Cast iron lathe bed. Stable Running with less Vibration.

2.With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.

3.XYZ three axis are with linear square guide rail, Hiwin, Taiwan. Ball screws transmission for all axis. Durable running with Higher accuracy.

4.Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate, iron plate engraving but also for wood working. It can cut 20-30mm thickness acrylic by one time cutting. The fine engraving is more smoothly and clear by large power spindle.

5.Dust-Proof design for XZ-axis, protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.

6.Stainless steel water slot cooling system, ensuring the processing hard metal & stone.

7.DSP offline control system with USB interface which is completely off from Computer. More Humanized desgin with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.

8. China powerful 86BYGH450A stepper motor and Leadshine stepper driver for XYZ-axis, faster speed and high precision working, and not easy to loss steps.

9.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate, Adopt high flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

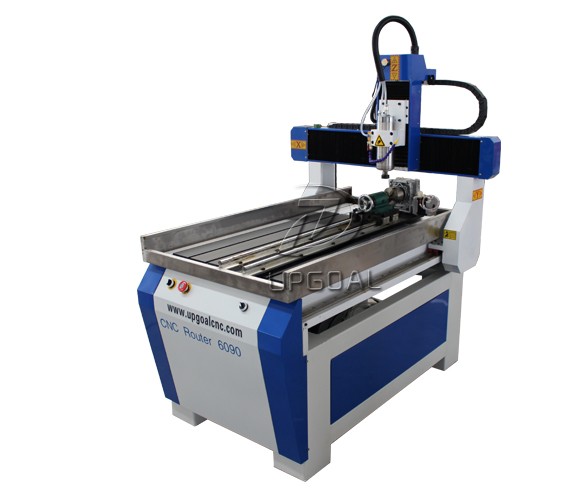

10.4th axis rotary axis, diameter 80mm, length 600mm, deduction gear type,  for cylinder engraving

11. Auto tools calibration for Z-axis

12.With the function of break-point memory,power failure resuming and automatic home/origin correction function.The Working can be resumed after unexpected situations or next day.effectively ensure long time working precision.

13.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

14. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.


Effective working area

600(X)mm*900Y)mm*150(Z)mm

Materials

Square steel tube machine holder, cast iron machine bed, cast aluminum gantry

4th axis Rotary axis

Diameter 80mm, length 600mm, reduction gear transmission

Cooling system

Stainless steel water slot cooling system

Working table

Aluminum alloy T Slot with PVC protection layer

Moving type

Gantry moving

Guide rail

Linear square guide rail, Hiwin, Taiwan, diameter 20mm for XYZ-axis

Transmission

Lead ball screw for XYZ-axis

Driving mode

Stepper motor and driver for XYZ-axis

Spindle motor

2.2kw water cooling

Spindle speed

0-24000rpm

Inverter

Sunfar

Voltage

AC 220V±10%, 50/60Hz, sinle phase

Traveling speed

>8000mm/min

Engraving speed

>6000mm/min

Machine accuracy

0.03mm

Control system

DSP offline control system, A11E, RichAuto

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Tool calibration

Auto

Certificate

CE
