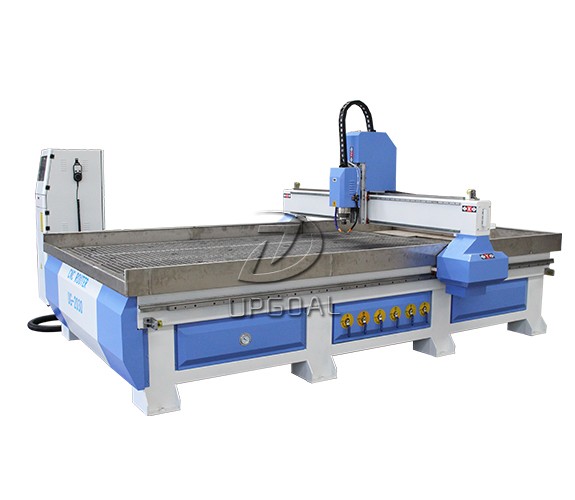

Large Size 2000*3000mm Woodworking Metal Foam CNC Carving Cutting Machine

Brief Introduction:

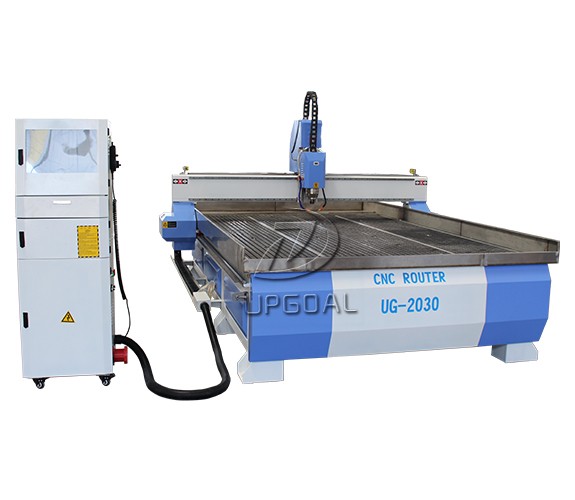

Model: UG-2030
2000*3000mm working area
5.5kw water cooling spindle
Vacuum table
Stainless steel water slot cooling
Weihong PCI NcStudio controlg

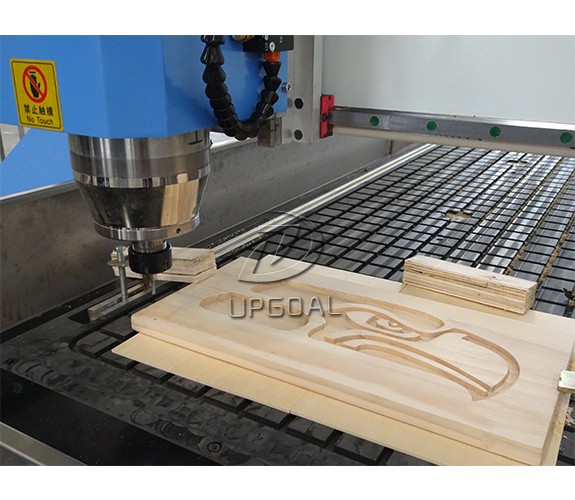

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.


1.Strong welded square steel tube structure as a whole with  vibration temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. Large power 5.5kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

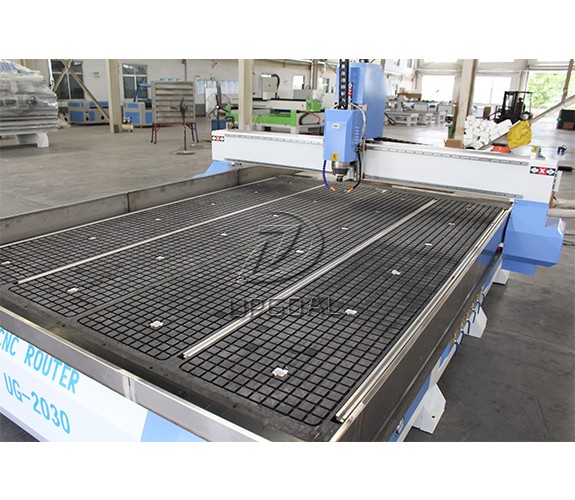

3. Vacuum adsorption system with 7.5kw air cooling vacuum pump,  vacuum table which is divided into 6 zones,also with aluminum alloy T slot, can adsorb different size materiel from small to big, , saving materials load-unloaded time.

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

6. China Leadshine hybrid servo motor 863HSM80H-E1 and driver H2-2206 for XYZ-axis,  high precision, fast speed and more stable.

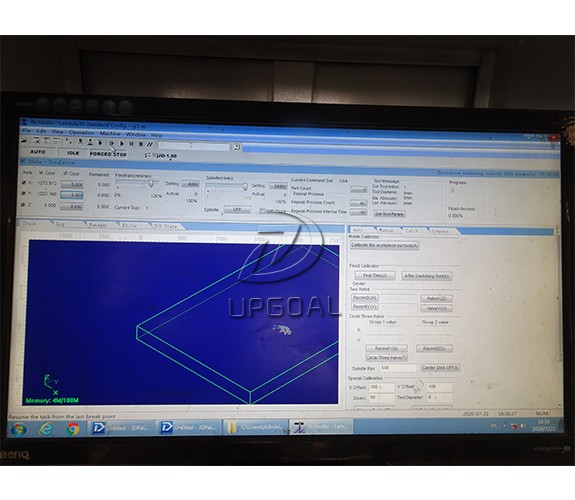

7. Original Weihong PCI NcStudio controller with handhwheel, working with desktop computer, showing the processing path and estimate the processing time, compared with the copy PCI NcStudio has the feastures of high positioning/process precsion, can adjust spindle speed in any RPM, no error after break points/power failure back to work, and lower working noise.

8. Stainless steel water slot cooling system with water mist cooling, ensuring the cooling for the metal & hard materials.

9.Auto lubrication system more convenient for maintenance.

10 .Auto tool calibration, more convenient for each time Z-axis 0 point setting.

11. Dust collector 5.5kw double bags, sucking the dust, saw dust, milling dust, keeping the machine clearning.

12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

13. With the function of break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.

Effective working area



Strong welded square steel tube structure

Working table

6 zones vacuum adsorption table with aluminum

T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)


Helical rack &pinion for X Y -axis, Lead ball screw

for Z-axis

Driving mode

Leadshine hybrid servo motor 863HSM80H-E1 and driver H2-2206

Spindle motor

5.5kw water cooling, HQD, China

Spindle speed


Collets type





AC 380V, 50/60Hz, three phases or

AC 220V, 50/60Hz, single phase

Traveling speed


Engraving speed


Machine accuracy


Repositioning accuracy


Diagonal error


Control system

Weihong PCI NcStudio with handwheel

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity


Cooling system

Stainless steel water slot

Lubrication system


Tool calibration


Dust collector

5.5kw double bags
