Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

1.Welded stonger T type steel tube structure as a whole with vibration temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

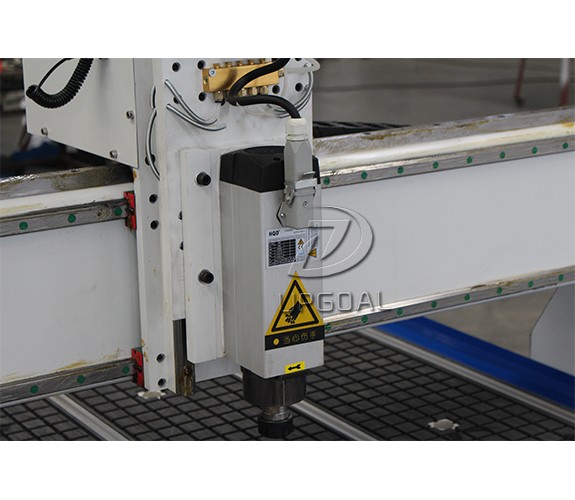

2. Large power China famous HQD brand 3.5kw air cooling spindle which is with stable performance, powerful and high torque, matched with high-performance frequency inverter.

3. Vacuum adsorption system with 5.5kw air cooling vacuum pump,  vacuum table which is divided into 6 zones,also with aluminum alloy T slot, can adsorb different size materiel from small to big, , saving materials load-unloaded time.

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

6. China famous 86BYGH450B stepper motor and stepper driver 860 for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

7. Original Weihong PCI NcStudio controller, working with desktop computer, showing the processing path and estimate the processing time, compared with the copy PCI NcStudio has the feastures of high positioning/process precsion, can adjust spindle speed in any RPM, no error after break points/power failure back to work, and lower working noise.

8. Dust collector, 3.0kw, double bags, sucking dust, milling dust, keep machine cleaning.

9. Semi-auto lubrication system more convenient for maintenance.

10 .Auto tool calibration, more convenient for each time Z-axis 0 point setting.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.
