CCD CNC Edge Cutting Machine
CCD CNC Edge Cutting Machine

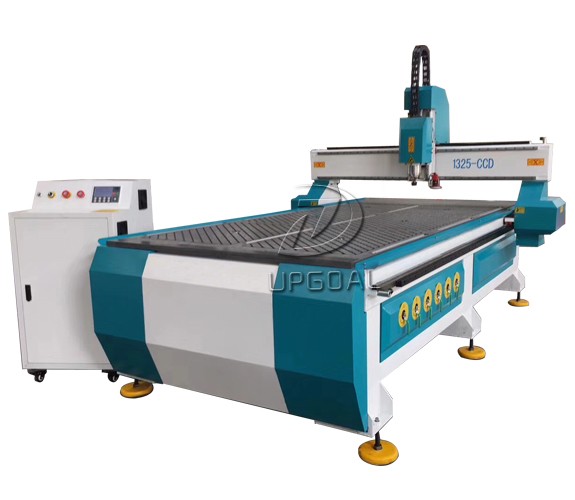

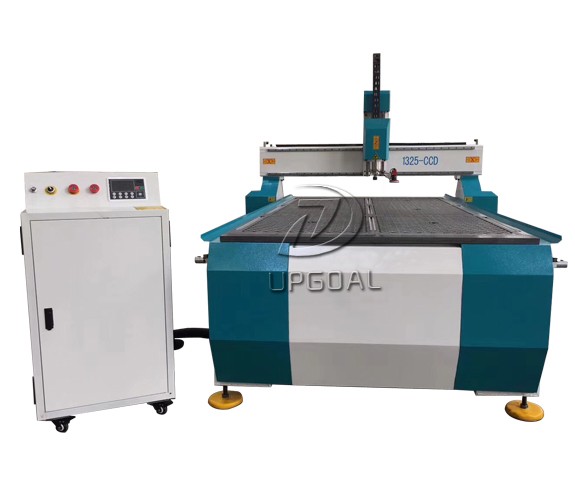

Automatic CCD CNC Edge Cutting Machine

Brief Introduction:

Model: UG-1325-CCD
1300*2500*200mm
Vacuum table
Computar CCD camera
Double control system

INQUIRY NOW

Application & feature:

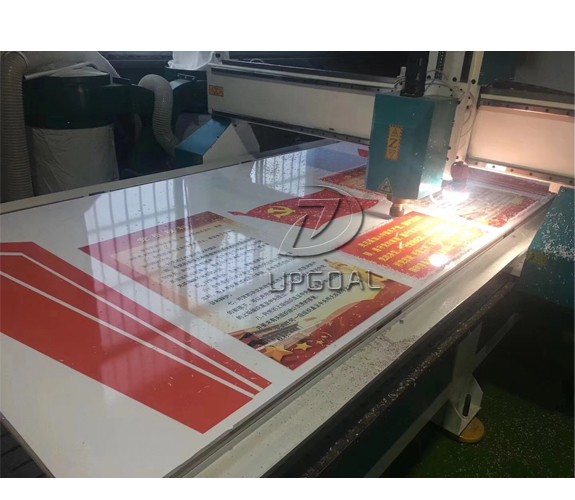

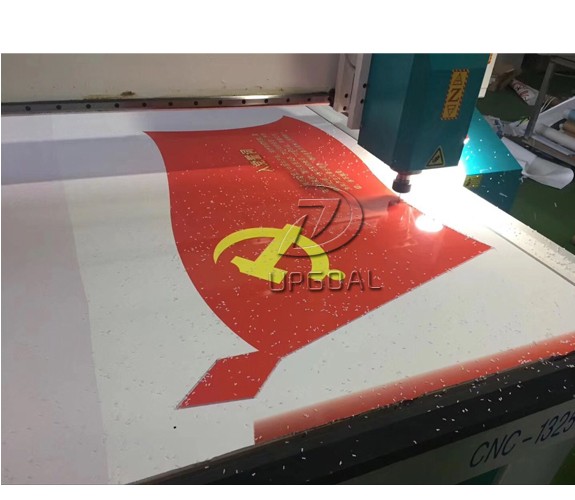

Suitable for special shape cutting of UV printing, for large scale rough shape cutting, cropping, engraving of printing advertisement, decoration, architect, template, etc.

Suitable Materials:

PVC, acrylic, polyethylene, organic glass, plastic, etc.

Features:

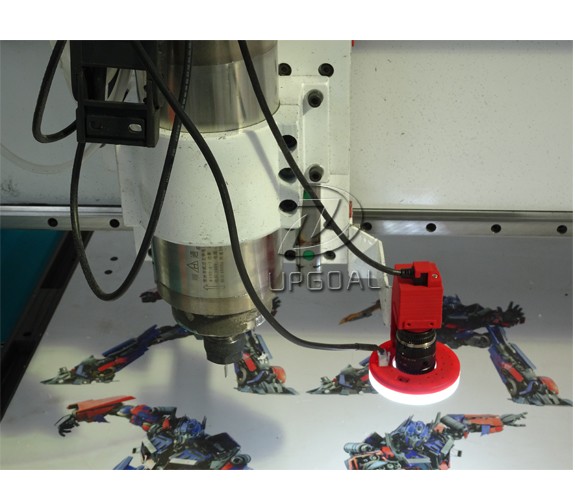

1.Adopt high definition camera to set fixed point, automatically locating to do pattern edge cutting, no need drawing layout, realize high efficiency automatically cutting.

2.Adopt high speed dual servo motor and driver, get the high speed cutting effect.

3.Vacuum adsorption table with aluminum alloy T slot working table, save time and labor.

4.Dual control system, not only do automatically edge cutting, also can do independent engraving and cutting, one machine has multi-functions, the best solution for advertising industry.





Effective working area

1300(X)mm*2500(Y)mm*200(Z)mm

Max.thickness of the materials

≤200mm(the distance between Z-axis and the bottom of the working station)

CCD camera

computar brand

Materials

Steel pipe welded machine holder bed and gantry

Working table

Vacuum table with aluminium alloy T slot

Guide rail

Linear square guide rail ( Hiwin, Taiwan, diameter 20mm)

Transmission

Helical rack &pinion for X Y -axis,

Lead ball screw(TBI,#2505) for Z-axis

Driving mode

Stepper motor ( XY Z-axis: 86BYGH450B, 5.5N.M) and

Stepper driver( Leadshine, DMA860H)

Spindle motor

3.2kw water cooling(Qiancheng, China)

Spindle collets type

ER 20

Suitable tools diameter

3.175mm, 4mm, 6mm, 8mm, 10mm, 12.7mm

Inverter

Sunfar, 3.7KW

Voltage

AC 220V+10%, 50/60Hz ,single phase or

AC 380V+10%, 50/60Hz, three phases

Spindle speed

0-24000rpm/min

Empty traveling speed

0-25000mm/min

Engraving speed

0-12000mm/min

Machine accuracy

0.03mm

Diagonal error

0.3mm

Resetting accuracy

0.03mm

Control system

PCI NcStudio control system( for desktop comuter, windows XP/7, copy version)



Online version laser cut ( Shenzhen Zhiyuan)

Motor wire

High soft specially for Numerical Control

Spindle wire

Shielding high soft

Suitable software

Artcam, Type3, Ucancam V9,etc

Software when delivery

Artcam 2008( 2D&3D, copy version)

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45

Relative humidity

30%-75%

Vacuum pump

5.5kw air cooling

Lubrication system

Semi-auto

Auto tool calibration

For Z-axis

Tools

2 sets

Accessories

Water pump(1), tools(2 sets), power line, USB line, fixtures(6), user manual, software CDs, collets(6),limit sensor(3), spanners(2), brush(1), water tank(1), etc.
