Hot Sale 1390 Model CCD Co2 Laser Cutting Engraving Machine for Embroidery Woven Label/Printed Label

Brief Introduction:

Model: UG-1390L-CCD
RuiD CCD camera
Visual positioning cutting, outline cutting,mark point cutting
RDV6445G coontroller
Leadshine hybrid servo motor driver



Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Widely applied in the field of advertising industry, decoration, furniture, model manufacturing, and handcraft industry for the fine engraving, cutting and hollowing out on almost all non- metallic materials with all kinds of characters, graphs, images, trademarks and so on.

Materials Can work with: Organic glass, acrylic board (the paulownia,  lightwood), wood products, bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.


CCD Camera

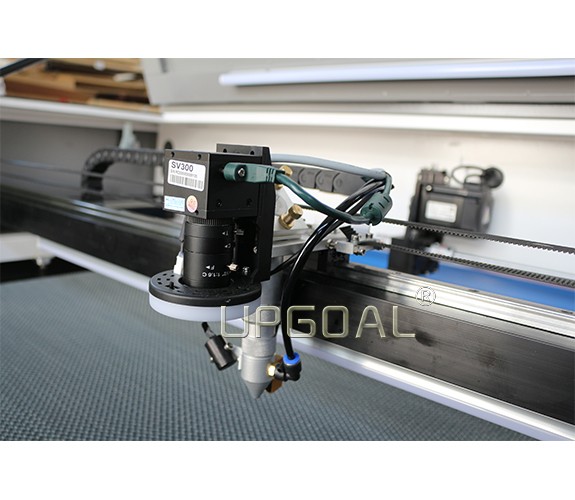

Machine with RUIDA CCD Camera auto positioning, can do visual positioning, trademark cutting, image analysis. support feature recognition position positioning and MARK point auxiliary position positioning function,  improves the working efficiency.

Multi-graphic positioning and cutting at any angle, automatic identification of defective products, can achieve the effect of cutting along the edge, no yellow, no black, no burn, multiple graphics positioning and cutting at the same time

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci W4 100W  Co2 laser tube,  long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thick materials & rotary axis:Maximum Loading 50kgs with 200mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Taiwan CSKlinear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Driving system

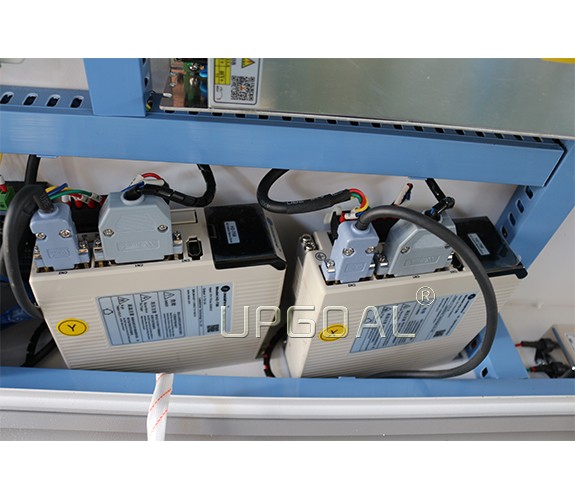

Adopted China Leadshine hybrid servo motor and driver H2-758,  high precision, fast speed and more stable.

Operation System

Advanced USB port RuiDaRDV6445G small vision laser cutting engraving control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5200(Teyu S&A), ensuring the laser tube long time continuous working

Air filtration system

Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.

Rotary axis

Both chuck & roller type for all kinds of cylinder engraving.

Effective working area


Laser Type

Co2 sealed-off laser tube

Laser tube power

100W, Reci W4 model

Working table

Honey comb and knife strip working table

Lifting table

Automatically up and down 200mm



Driver mode

Leadshine hybrid servo motor driver H2-758

Guide rail

Linear square guide rail ( CSK,Taiwan)


Belt transmission

Control panel


Laser output control

1-100% software setting

Engraving speed


Cutting speed


Control system

RuiDa RDV6445G small vision laser cutting engraving control system

CCD camera

RuIDa SV300, USB port

Design software when delivery


Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy


Type of cooling

Industrial chiller CW-5200 cooling

Water protection system



Auto focus

Blow-off system

Air pump and air blower

Air filter

With, 5 layers filtration

Rotary axis


Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format



AC 220V/110V, 50/60Hz, single phase
