CNC Wood Lathe
CNC Wood Lathe

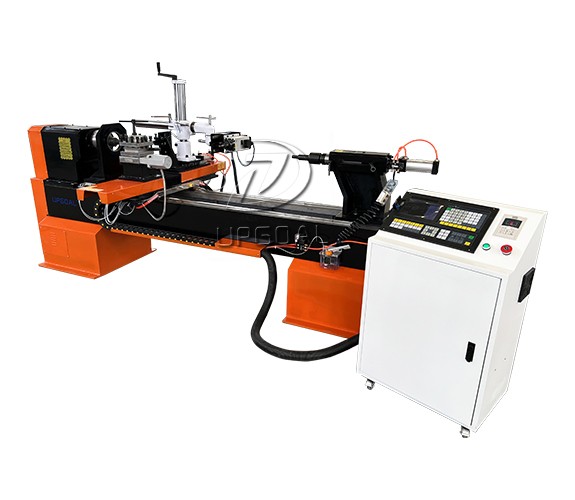

Auto Tools Changing 4 Axis CNC Wood Lathe Machine with Spindle/Servo Motor for Wood Bowl/Vase/Stair Post

Brief Introduction:

Model: UG-1530WL
Chuck diamerter 160mm,turning length 1500mm
Total 4 pcs Auto tools changing,
4Axis spindle with gymbal for egnraving broaching,
Single axis two blade,
GXK 1000TA controller with handwheel
4kw pure servo motor driver

INQUIRY NOW

Applications

Suitable for handrail, vase,table leg, European style furniture, Roman pillar, wooden clothes hanger & washbasin, kingpost, aisle column, waist drum, solid wood furniture, solid wood stairs, home decoration,wooden decoration, wooden artware,columniform conical, arc-shaped, sphere,ect all kinds of solid of revolution wooden product or semi-finished wooden products.

Materials can be processed: all kinds of wooden materials, such as beech, oak, ailanthus birch,teak, sapele, fraxinus mandshurica, merbau, sandalwood,bubinga, ect.


Features

High efficiency,high surface finish,big diameter turning broaching engraving wood lathe machine

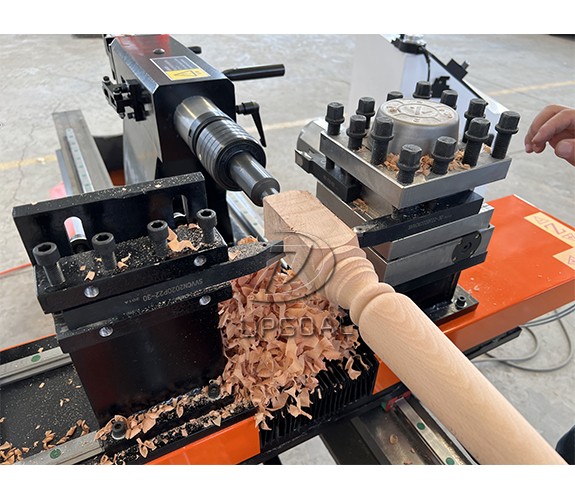

With automatic tools changer, total for 4 pcs bits changing, can realize dig hole, cut off, etc function.

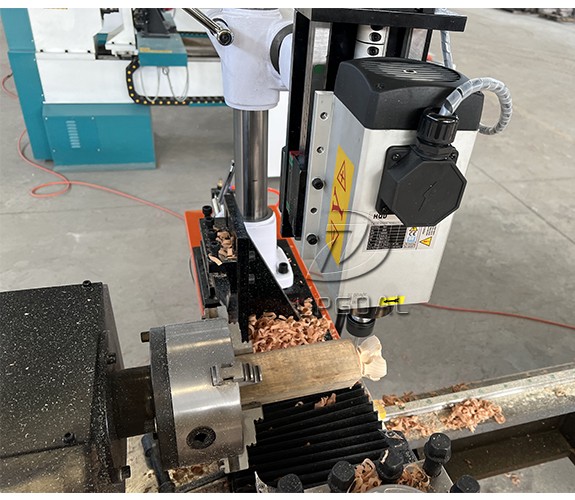

Top independent 4 axis spindle(air cooling 3.5KW) for engraving/broaching, with the universal bracket, it can be adjusted freely to increase the flexibility of milling.


Adopts double blades, one is front, the other is back, 10mm distance between 2 blades in the axis direction, improve the working efficiency. Finish one wood cylinder turning broaching engraving just needs 90s at least.

One time setting multi functional processing, auto switching for turning, broaching, milling spiral surface, curve surface, flat engraving, suitable for complicated beautiful workpiece processing.

Auto changing turning & engraving angle, meet the requirements of big diameter wood cylinder processing

Can adjust each blades turning proportion at random according to processed materials, reducing the workpiece bounce and vibration, increasing the turning wood finish.

Numerical control frequency conversion, energy-saving power, adjusting speed timely, multistage safe protection

Adopting high performance inverter, frequency conversion, step-less speed change, adjusting turning speed timely according to workpiece's diameter, saving power.

Multistage safe protection, protect motor and machine effectively, ensuring machine working under the normal loading.

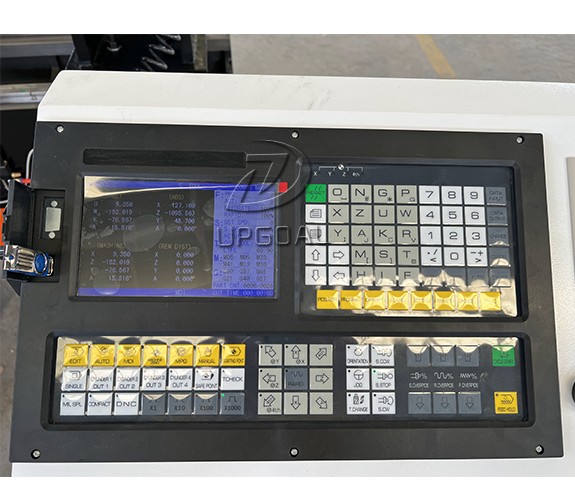

Adporting famous GXK controller with handhweel USB connection, supports 4 axis working and automatic tools chaning,  easily to change the pattern, no need programming at site, system can upgrade

Easy drawing,just draw the easy pattern, then can process, no need complicated programming.

System can upgrade with USB disk file, realizing remote redact and local operation.


Supporting single blade, double blades one time process, no need complicated program to finish multiple different turning, meets with different workpiece requirement, easy and fast.

Pause and memory function, more convenient for inspect workpiece processed quality( precision and finish), timely adjusting.

Specialized CNC control high precision control system, easy to operate, short leaning, no need specialized knowledge, fast processing speed and good uniformity of finished products.

Heavy duty Cast iron machine bed, less deformation and stable transmission

Machine bed's design & processing is standard according to processing machine norm, adopting one time casting, aging treatment, less deformation, increasing machine using stability.

Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running.

X Y with precision ball screw, Z-axis with helical rack pinion transmission, high precision and more durable.

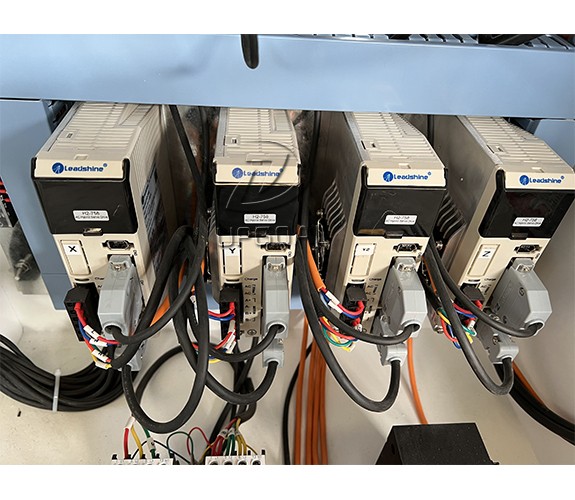

The maxin motor adorpting 4.0kw pure servo motor driver  XYZ-axis with hybrid servo motor driver,  high precision, fast speed and more stable.


Air cooled independent electronic control cabinet, lowering the temperature of control cabinet effectively, long time all electronic component life time.


With large diameter proetction sheath, adoviding wood shading during processing, and has the air cylinder clamping materials at the back tailstck., convenient and stable working




Maximum processing length

1500mm

Maximum turning diameter

300mm(chuck diameter 160mm)

Structure

Single axis two blades

Material

Heavy duty cast iron machine bed

Air pressure

0.6-0.8Mpa

Maximum processing speed

2000mm/min

Minimum processing unit

0.001mm

Transmission

X, Y-axis : lead ball screw transmission diameter 25mm,Z-axis with helical rack and pinion transmission

Guide rail

Linear square guide rail, Hiwin, Taiwan, diameter 25mm

Spindle turning speed

0-2800rpm

Main motor power

4kw, pure servo motor driver( intellmotor, China)

Control system

GXK 1000TA controller with handhweel, supports auto tools changing and 4axis

Motor and driver

Hybrid servo motor driver( Leadshine, China)

Inverter

BEST, China, install the adjusting panel on the control cabinet, can do 0-2800rpm adjusting at random

Drawing Software

AutoCAD

Hand controller recognize file

*.dxf

Rotate top & Tailshaft

Rotate top Mohs # 5, # 70 Tailshaft

Material clamping method

Air cylinder clamping

Blades material

Superhard alloy

Voltage

AC 380V ±10%, 50/60Hz, three phases or

AC 220V ±10%, 50/60Hz, single phase

Lubrication system

Semi-auto

Oil-water separator

Has

Machine size

2900*1300*1400mm

N.W

1400kg

G.W

1600kg
