Oscillating Knife CNC Cutting Machine
Oscillating Knife CNC Cutting Machine

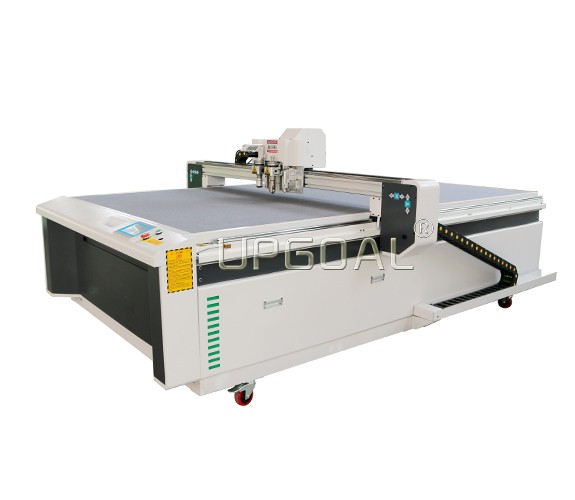

Carton Box/Cardboard Box CNC Oscillating Knife Cutting Creasing Marking Machine 1600*2500mm

Brief Introduction:

Model: UG-1625V
1600*2500mm working area

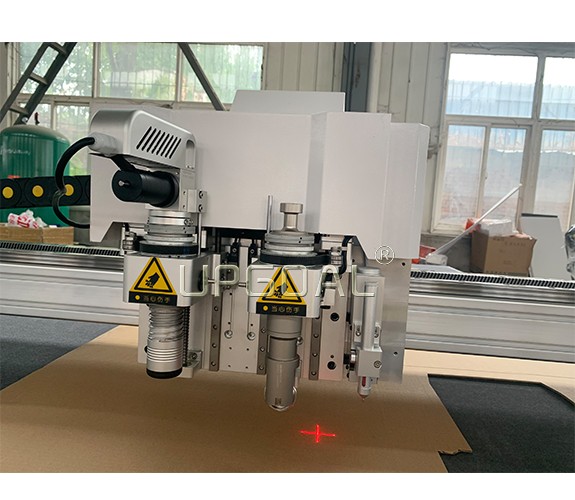

Oscillating knife cutting & creasing wheel & mark pen
RuIDa RDD6584G touch screen controller
Cast aluminum vacuum table with adsorption felt

INQUIRY NOW

Applications

UPGOAL cnc vibration knife cutting machine is widely used in cutting paper materials, automotive interior processing industry, used in the cutting processing of car seat covers, seat cushions, steering wheel grips, leather processing industry, leather cutting and punching, household fabrics, cutting of new technology materials and other industries.


Cutting materials

Cardboard, corrugated paper, honeycomb paper, leather, glass fiber, carbon fiber, fabric, self-adhesive, film, foam board, acrylic board, rubber, gasket material, clothing cloth, footwear material, luggage material, non-woven fabric, carpet, Sponge, KT board, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composite materials.


Features

1. The ultra-high frequency vibration knife cutting technology eliminates the irregularities of manual cutting, the limitation of the accuracy of the punching machine, and the scorching odor of the laser cutting machine. High efficiency and fast speed make leather and PU cutting become artistic enjoyment.

2. Imported PMI, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt WMH brand, Herion Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, and more durable.

3. Adopted famous RuiDa RDD6584G touch screen control system supports both USB and Ethernet connection, has a knife cutting controller with tool direction following control function. It integrates the processing of tools such as vibrating cutters, round cutters, milling cutters, and pressing wheels. It also integrates feeding, circular punching, and V-shaped special punching. Hole, pen processing, red light positioning and a series of functions.

4. Equipped with vibration knife cutting+ creasing wheel+ mark pen, suitable for carbon box marking, creasing and cutting.

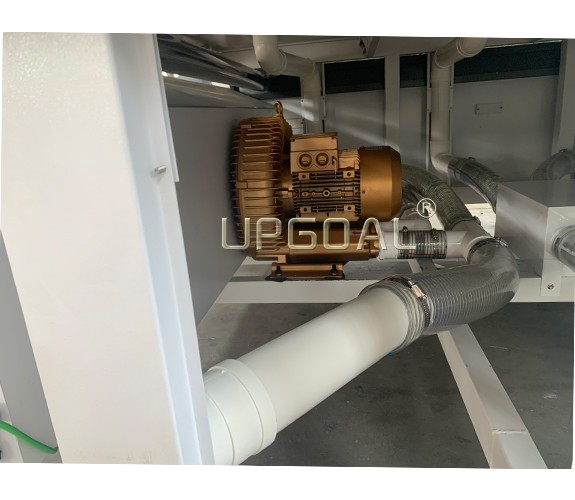

5. Whole cast aluminum vacuum table with adsorption felt, ensuring the machine stablity. And, equipped with 2 sets 7.5KW+2.2KW high pressure air cooling turbofan, high adsorption ability.

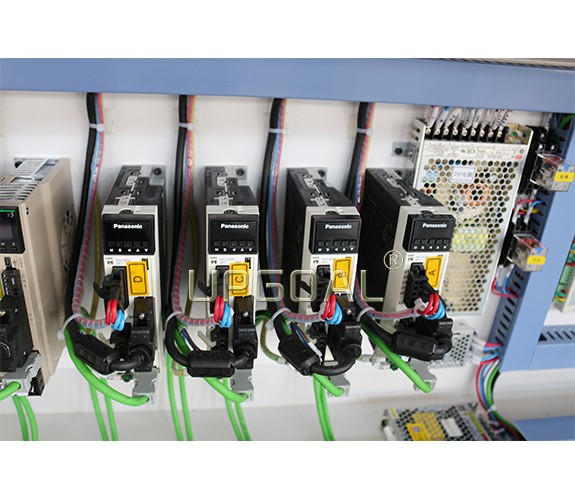

6. China HCFA 750W servo motor  driver for XYZ-axis and Panasonic Japan servo motor driver for DCBA axis, ensuring the processing speed & precision.

7. The cutting efficiency is high, the surface is smooth and flat, which greatly saves costs.

8. A variety of tool heads(Vibrating knife, high-power round knife, punching knife, pneumatic knife, multi-layer knife, drag knife, half cutter, bevel cutter, milling cutter, etc.), quick replacement to adapt to different materials

9. Convenient output, high-speed cutting, rapid prototyping, intelligent typesetting, saving materials

7.Supports multiple formats such as DXF, PLT, HPGl, etc., without cutting tools, saving manpower and material resources, and simplifying the work process.

10.Improve the cutting speed and efficiency, and provide strong support for high-speed cutting of the electric vibrating knife with a frequency of up to 25,000 times/min, up to 1000mm/s.

11. Smooth operation, fine and smooth incision, powerful function, can effectively solve various problems such as proofing.

12. Semi-auto lubrication system more convenient for maintenance.

13. Anti-collisiion device, ensuring the safe operation.


Model

UG-1625V

Effective cutting area

1600*2500mm

Working table

Fixed aluminum adsorption vacuum working table

with adsorption felt

Material fixed method

Vacuum suction system

Cutting head

Vibration knife with creasing wheel and mercury pen

Control system

RuiDa RDD6584G(EC) touch screen control system

Cutting software

RuiDa VcutWorks( supports WLAN cable & USB cable)

Cutting speed

0-1,500mm/s(according to different cutting materials)

Cutting thickness

≤40mm

Cutting accuracy

≤0.1mm

Drive system

China HCFA 750W servo motor  driver for XYZ-axis and Panasonic Japan servo motor driver for DCBA axis

Guide rail

PMI, Taiwan, linear square guide rail

Transmission system

Helical rack and pinion transmission (WMH brand, Herion )

Vacuum pump

Air cooling, 2 sets, 7.5KW+2.2KW

Safety device

Anti-collision system

Graphic format supported



PLT, DXF, AI, etc.

Compatible

CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc.

Voltage

AC220V ±10%,50/60Hz, single phase or

AC380V ±10%,50/60Hz, three phases

Machine size

3400*2340*1350mm

Net weight

800kgs

Gross weight

900kgs
