Application

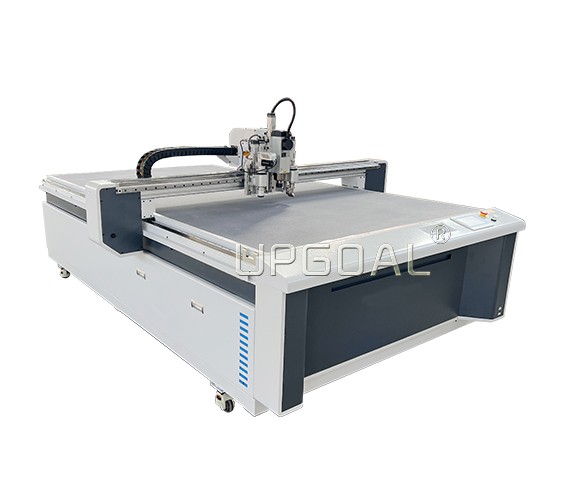

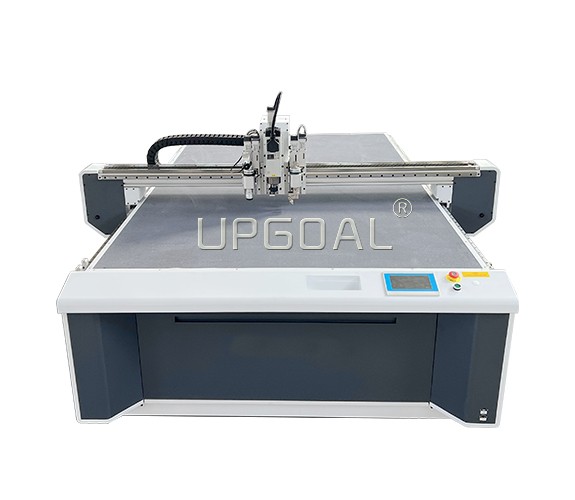

UPGOAL cnc knife cutting machine is widely used in cutting paper materials, automotive interior processing industry, used in the cutting processing of car seat covers, seat cushions, steering wheel grips, leather processing industry, leather cutting and punching, household fabrics, cutting of new technology materials and other industries.

Cutting materials

Cardboard, corrugated paper, honeycomb paper, leather, glass fiber, carbon fiber, fabric, self-adhesive, film, foam board, acrylic board, rubber, gasket material, clothing cloth, footwear material, luggage material, non-woven fabric, carpet, Sponge, KT board, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composite materials.

Features

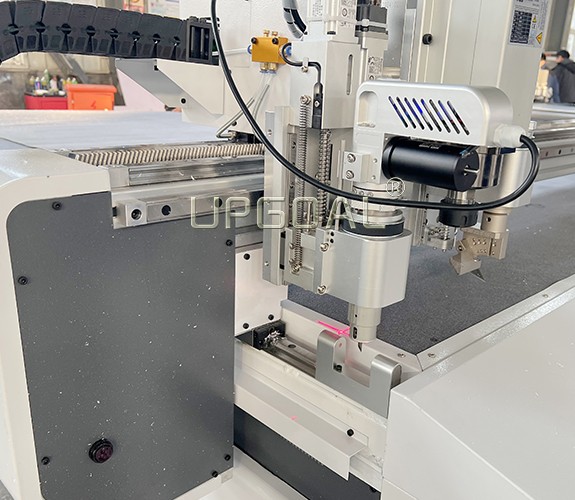

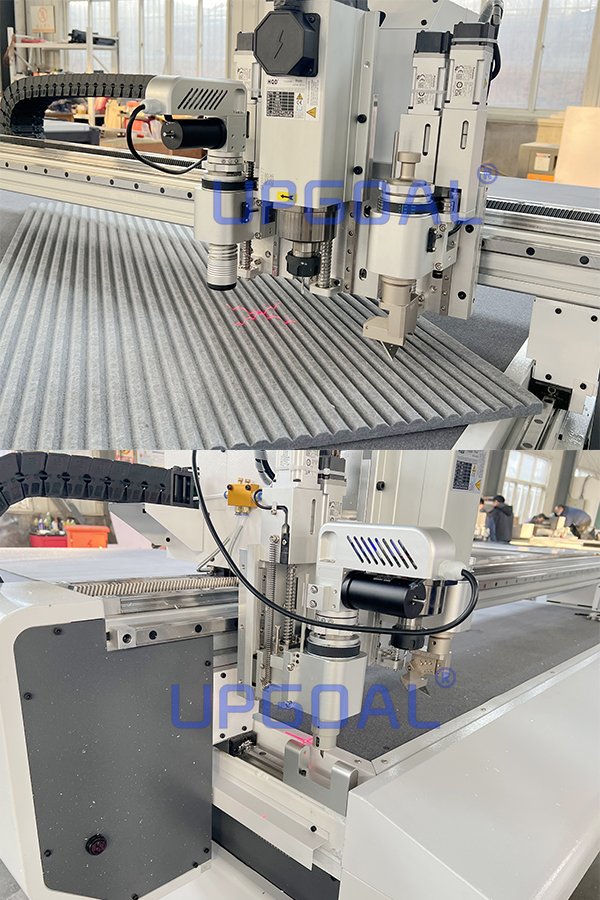

1. With 3 kinds of cutting tools : oscillating knife/V cut knife/ milling cutter

2.The ultra-high frequency CLT oscillating knife cutting technology eliminates the irregularities of manual cutting, the limitation of the accuracy of the punching machine, and the scorching odor of the laser cutting machine. High efficiency and fast speed make leather and PU cutting become artistic enjoyment.

3. V-knife (bevel cutter) can process V-shaped grooves and bevels of different specifications by changing the installation angle of the blade (0°, 15°, 22.5°, 30°, 45°). It can process soft glass, PVC, honeycomb board, KT board, corrugated paper, vertical corrugated board, gray cardboard, etc

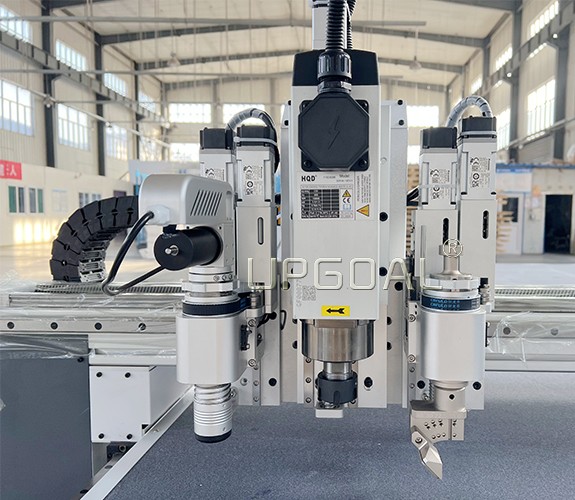

4. With a  China HQD 3.5kw air cooling milling knife tool: with high speed rotary tool,  makes the cutting edge of material be smoother, in addition to processing for hard materials,  can also process for foam material. Application: acrylic, wood, PVC foam sheet, PVC expansion sheet and other industries

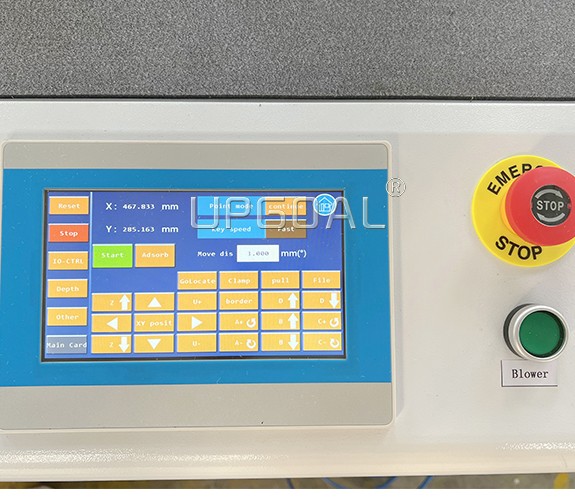

5 Adopted famous RuiDa RDD6584G touch screen control system supports both USB and Ethernet connection, has a knife cutting controller with tool direction following control function. It integrates the processing of tools such as vibrating cutters, round cutters, milling cutters, and pressing wheels. It also integrates feeding, circular punching, and V-shaped special punching. Hole, pen processing, red light positioning and a series of functions.

6. Whole cast aluminum vacuum table with imported felt, ensuring the machine stablity.and vacuum adsorption, good for small pcs material adsorption, ensuring the machine cutting precision and stablity.

7. Equipped with 9.0KW high pressure air cooling vacuum pump with silencer, built-in design, high adsorption ability.

8.China 750W servo motor  driver for XYZ-axis and  Panasonic Japan servo motor driver for ABCDZ-axis, ensuring the processing speed & precision.

9. Imported original PMI, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt WMH brand, Herion helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, and more durable.

10. With automatic tools calibation

11. With anti-collision safety switch 4 sets

12. Semi-auto lubrication

13. The cutting efficiency is high, the surface is smooth and flat, which greatly saves costs

14. A variety of tool heads(Vibrating knife, high-power round knife, punching knife, pneumatic knife, multi-layer knife, drag knife, half cutter, bevel cutter, milling cutter, etc. all can be installed), quick replacement to adapt to different materials

15. Convenient output, high-speed cutting, rapid prototyping, intelligent typesetting, saving materials

16. Supports multiple formats such as DXF, PLT, HPGl, etc., without cutting tools, saving manpower and material resources, and simplifying the work process.

17. Improve the cutting speed and efficiency, and provide strong support for high-speed cutting of the electric vibrating knife with a frequency of up to 25,000 times/min, up to 1000mm/s.

18. Smooth operation, fine and smooth incision, powerful function, can effectively solve various problems such as proofing.
