Applications

Suitable material

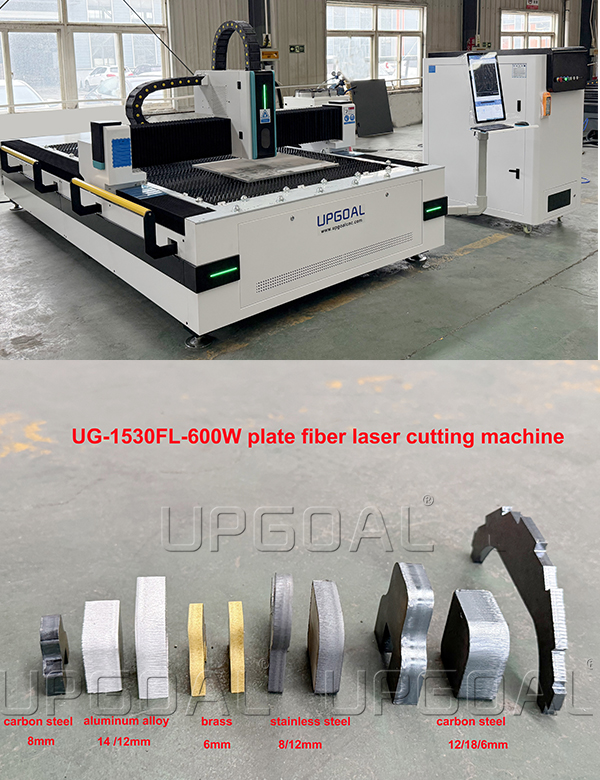

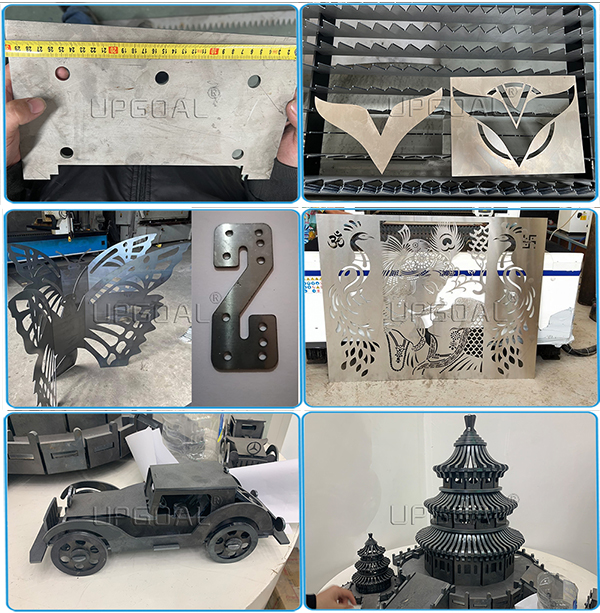

Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy paltes, rare metal and other materials cutting.

Application industry

Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

Features

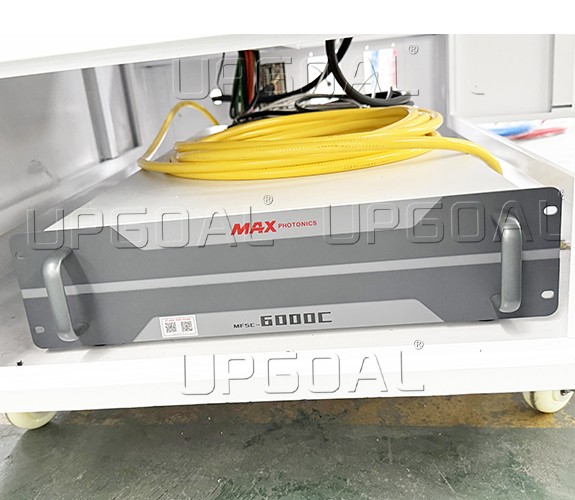

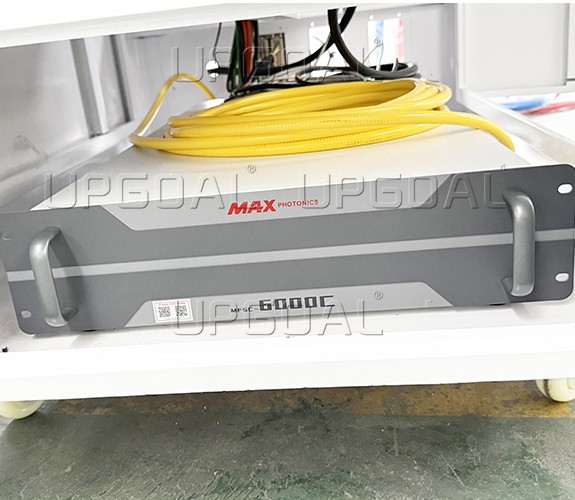

1. Adopted stable MAX(RAYCUS) 6000W fiber laser resonator, photoelectric conversion rate is high, high beam quality. It can meet

the requirements of precision processing.

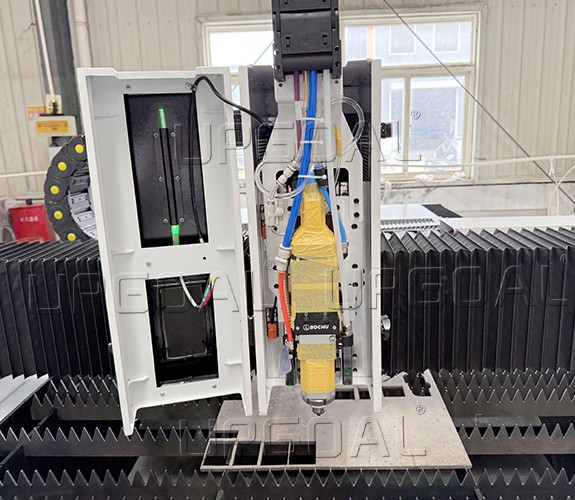

2.The famous BOCI BLT 421 auto focusing fiber laser cutting head for high power, with optimized optical configuration and smooth

 and efficient airflow design significantly improve cutting quality and efficiency.

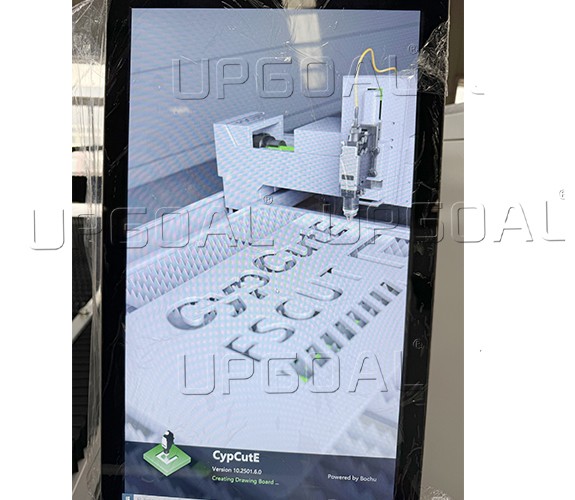

3. The FSCUT 4000E bus control control system is embedded with a rich memory of laser cutting setting references, flexible layout

designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination,

automatic identification of exterior and interior modes and so on, compatible. Easy to use, rich in functions, stable and reliable.

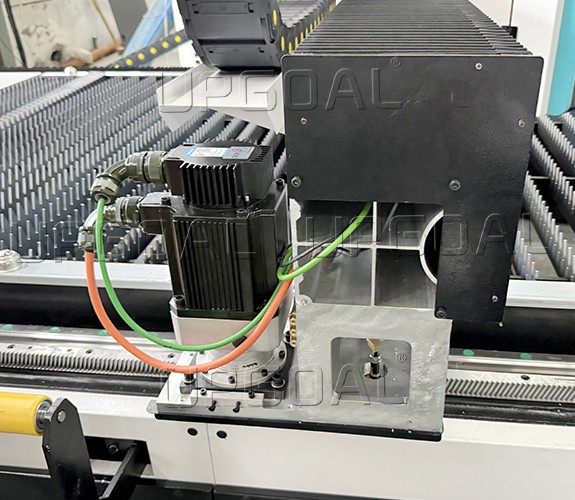

4. Adopted FUJI Japan 1300W bus control servo motor and driver, and with SHIMPO reducer,  more accurate, It realizes

closed-loop control of position, rotating speed is more faster. With high strong anti-overload capability, and smooth operation at low

speed, no stepping operation similar to stepper motor when running at low speed.

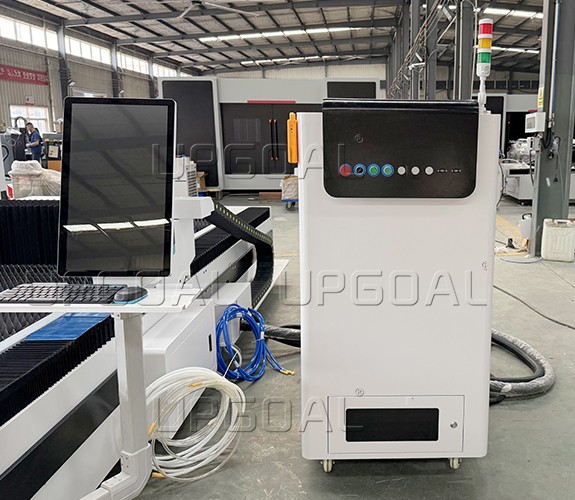

5. Industrial CPU with  with moving bracelet, one fixed on the back of machine, convenient for observation during machine cutting

6. Stable S&A Teyu Industrial chiller CWFL-6000, ensuring fiber laser and laser head can be cooled quickly to ensure that the laser

machine has stable power even working at high temperature, high efficient and fast operation.

7. With voltage stabilizer, for stable cutting precision.

8. With independent control cabinet.

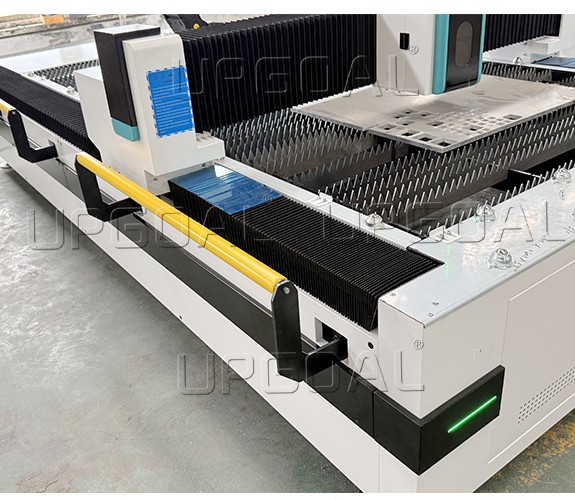

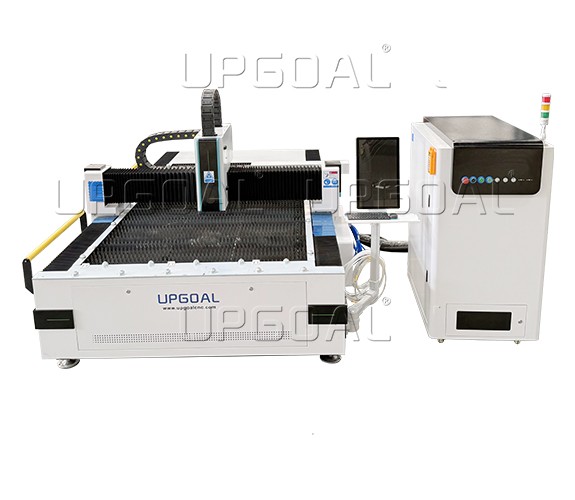

9.Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure

weight capacity,  high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the

production efficiency.

10.High-rigidity heavy chassis, high strength, not easily deformed, good stability and strong tensile strength.reducing the vibration

generatedduring high-speed cutting greatly.

11. High-performance  aero space standards vaiation aluminium crossbeam with high hardness. Has the features like good toughness, lightweight, corrosion resistance, oxidation resistance and lowdensity, which greatly improve the processing speed.

12. Auto lubrication system

13.  Adopted SMC Japan proportional valve, improve cutting accuracy & speed.

14.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

15. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is

no mechanical deformation.

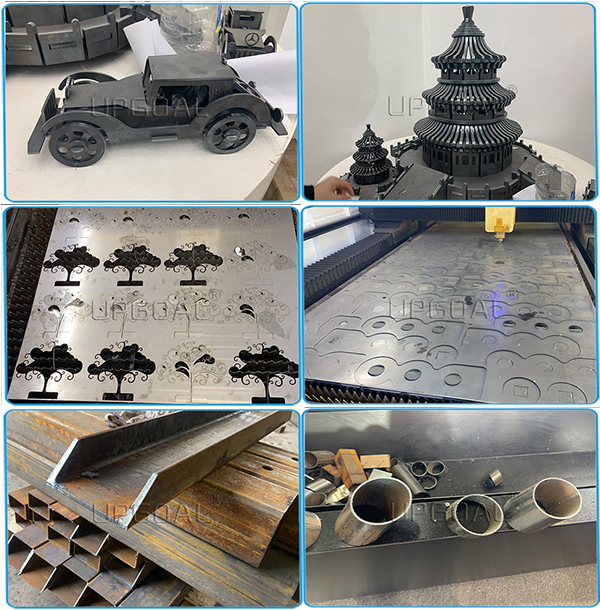

16.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
