Combined Tube Plate Fiber Cutting
Combined Tube Plate Fiber Cutting

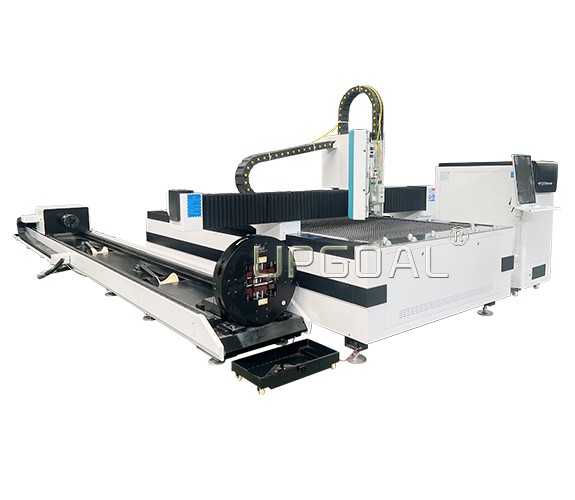

Hot Sale 2000W Metal Tube & Plate Fiber Laser Cutting Machine with Rotary Axis 3015 Model

Brief Introduction:

Model: UG-1500FL-R
Flat cutting area 3000*1500mm
Rotary axis: diameter 220mm, length 6000mm
MAX 2000W fiber laser source
RayTools BMH110 Auto focusing laser head
CypCUT 3000 software

INQUIRY NOW

Applications

UG-3015FL-R metal plate tube fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

Suitable material

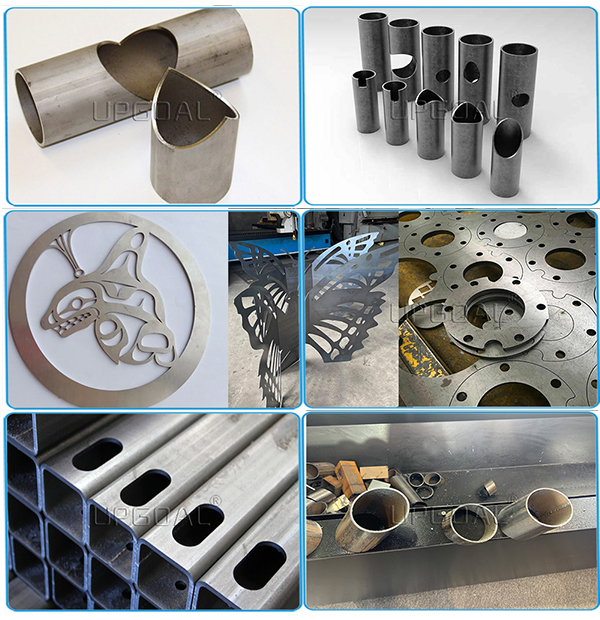

Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy paltes, rare metal and other materials cutting.


Application industry

Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

Features

1.High-rigidity heavy chassis,reducing the vibration generatedduring high-speed cutting greatly. High-performance  vaiation aluminium crossbeam,after finite element analysis,realizes highly accelerated circular arc cutting speed.

2.Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the production efficiency.

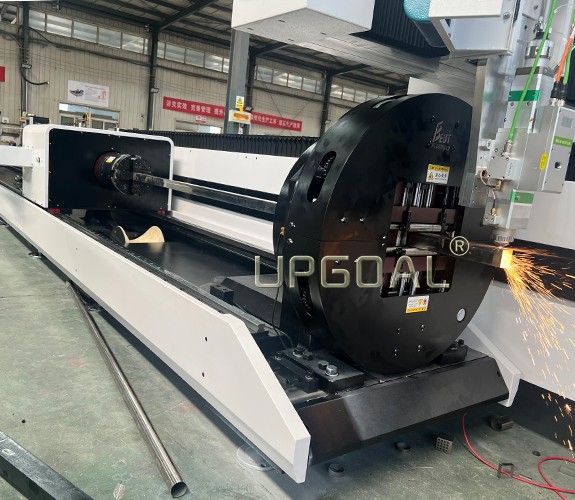

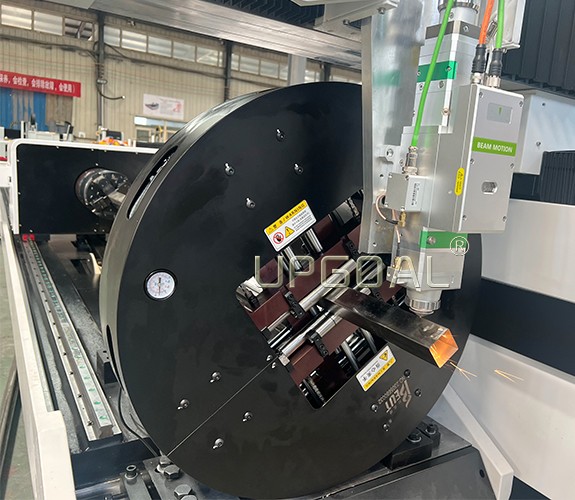

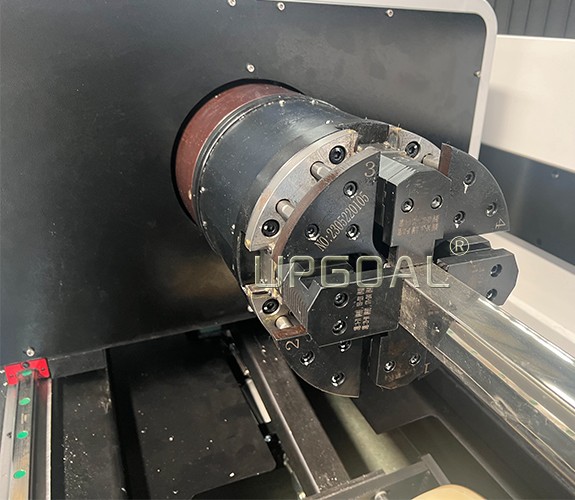

3.Rotary axis with cutting length 6000mm, It adopts an automatic pneumatically clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm. It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

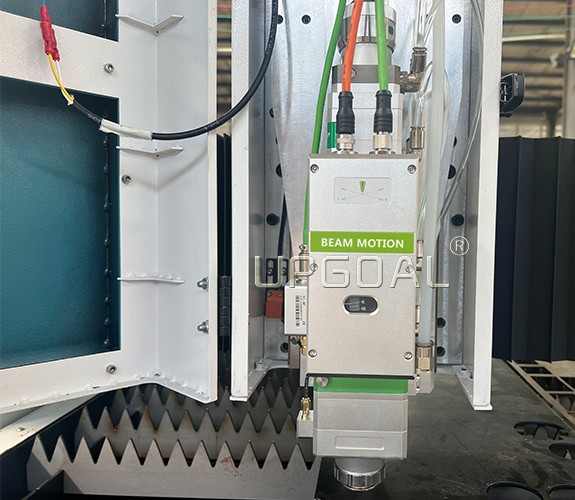

4.The famous RAYTools BMH110 auto focusing laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.

5. Adopted stable MAX brand  2000W fiber laser source, photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs..

6.  With strong tooth type cutting blade table, can stand more thickness sheet , and ensure cutting performance, equipped with feeding wheels is convenient to load materials.

7. The FSCUT3000 control system is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination, automatic identification of exterior and interior modes and so on, compatible, with laser source brands such as IPG, SPI, JK, Raycus, etc.

8. Adopted Fuji Japan 850W servo motor and driver for XY axis, rotary axis with 1.8KW/1.3KW.850W, the servo motor with SHIMPO reducer,  more accurate, It realizes closed-loop control of position, rotating speed is more faster, general rated speed can reach 2000~3000 rpm; With high strong anti-overload capability, and smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.

9. Independent control cabibnet  and with moving bracelet PC displayervery convenient to operate

10. S&A Teyu Industrial chiller CWUL-2000, ensuring fiber laser and laser head can be cooled quickly to ensure that the laser machine has stable power even working at high temperature, high efficient and fast operation.

11.  Adopted SMC Japan proportional valve, improve cutting accuracy.

12. Open worktable, simple operation and small space eccupation.

13.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

14. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

15.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

16. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.



Model

UG-1530FL-R

Effect cutting size for panel

1500*3000mm

Rotary axis for tube cutting

Diammeter 240mm, length 6000mm

Automatic pneumatically clamp design on both sides

Laser working medium

Fiber

Laser wavelength

1060-1080nm

Rated output power

2000W(MAX/RAYCUS brand)

Laser cutting system

FSCUT3000

Driving system

High speed Fuji Japn servo motor driver( XY:850W, Z:400W, rotary axis: 1.8KW & 1.3KW& 850W)

Reduction gear

SHIMPO, Japan

Guide rail

Linear square guide rail, Hiwin, Taiwan

Tranmission system

Helical rack and pinion transmission, YYC, Taiwan

Proportional valve

SMC, Japan

PositionaI accuracy

0.03mm/m

Repeated positioning accuracy

±0.02mm/m

Maximum travelling speed

100m/min

Power supply

AC380V, 50/60Hz, three phases

Graphic format supported

CAD,DXF, etc

Lubrication system

Automatic

Working environment

Temp:0-40℃,humidity:≤80%,No condensation
