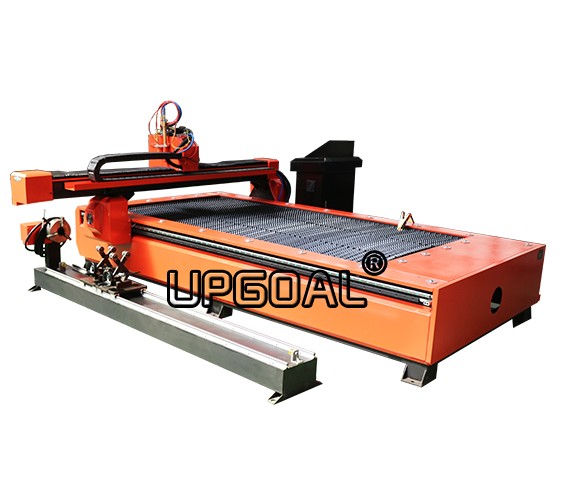

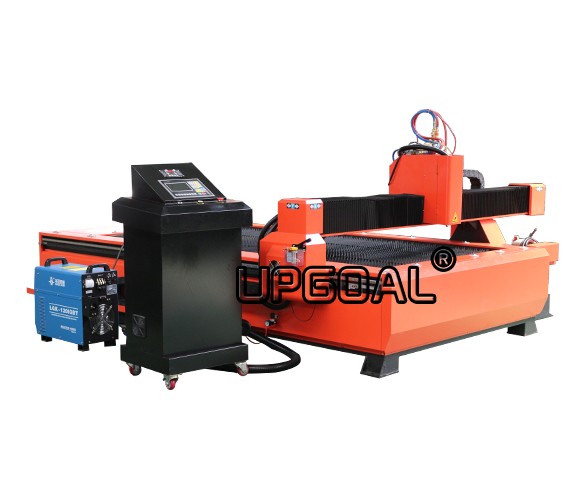

Industrial CNC Flame Plasma Cutting Machine with Rotary Axis 120A 1500*3000mm

Brief Introduction:

Model: UG-1530P
1500*3000mm working area
Dual plasma & flame cutting
Rotary axis dia 200mm for tube cutting
Huayuan LGK-120IGBT 120A plasma power supply
Water table
STARFIRE flat& tube cutting controller



Suitable for nonferrous metal sheet, stainless steel plate, carbon plate,  aluminum plate, galvanized plate, white steel plate, titanium plate, etc materials automatic cutting.

Application: Metal processing, machine manufacturing, auto spare parts, ventilate environment protection, steel structure shipbuilding electrical product’s shell processing, advertisements and signs, decoration, iron art garden, auto making, ship’s electrical parts& plates cutting.


Industrial plasma flame cnc cutting machine is one kind of high precision mechanical drive and thermal cutting combined high efficiency, high precision, high reliable cnc cutting equipment. Good man-machine interface lets the operating more easy, and cut all kinds of complicated shaped plate rapidly & accurately, especially suitable for middle & thin thickness nonferrous metal plate, stainless steel and carbon steel auto cutting. It adopts integrated modularization design, quickly install, convenient to move.

CNC Control system ( STARFIRE, Beijing, China, Supports both plate and tube cutting )

1. LCD, English display. Has the notes of each operation button on the bottom of displayer in time, so just needs short training, then the buyer can do independent operation, more convenient and easy to use.

2. Powerful anti-interference ability, moving stable and convenient.

3. With cutting compensation function, setting the required workpiece size in computer, nesting and output, can adjust the slotting size in the control system according to needs, easy and efficient operation.

4. Memory function after power failure and break point, no matter power failure or arc breaking during cutting, all can continue go forwarder or back-off following the cutting track.

THC( Torch Height Controller)

1. With high sensitivity THC, auto adjusting the best cutting distance, ensuring the workpiece accurately cutting.
2. The torch has auto torch height controller, during cutting, the torch always keeps the same distance with the plate, extend the nozzle’s life time, and get the high quality cutting effect.

      3. Good anti jamming capability, stable performance

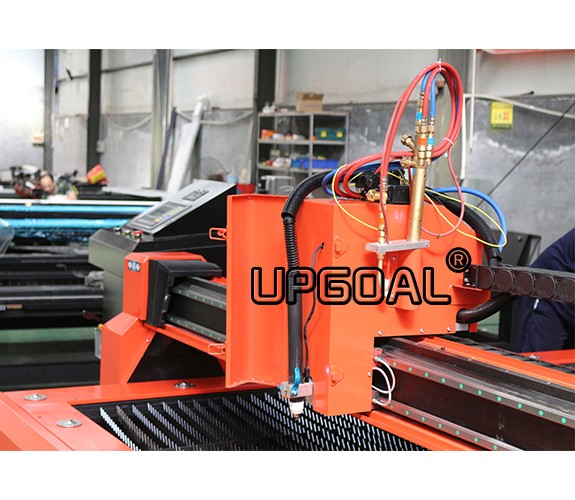

Z-axis plasma & flame dual cutting head(With anti-collision system and infrared positioning system for Z-axis)

1. Z-axis is lead ball screw transmission type, high speed, convenient maintenance,suitable for all kinds  thickness of plates.

2. Can auto adjust the cutting distance for uneven plate, ensuring the same distance between the torch with plate, ensuring the cutting quality.

3. Special torch height controller can prevent the torch crash the plates effectively, protect the torch and long time using.

4. With anti-collision device, during the cutting, if torch crash accidentally, the machine will stop immediately, avoiding breaking the machine and thin plates is whiled away due to the cocking.

Motor & Drive ( China ChuangWei stepper motor 86BYGH450A and stepper driver Yako 2608)

1. Adopting China famous Chuangwei brand stepper motor and Yako stepper driver, stable performance, high response speed, good anti jamming capability.

2. All the machine’s signal wire is high flexible shielded wire, heat resistant, low temperature resistant, bend resistant.

3. Control signal uses 24V voltage, with famous brand switch power supply.

Machine bed part

1. The whole machine bed adopts heavy duty welded steel structure and then precision-machined, whole tempering, fully eliminate welding stress, stable and reliable performance. Gantry and end beam adopts cast aluminum and then precision-machined, moving performance is good.

2. Dual driving for Y-axis, XY-axis adopts high precision linear square guide rail, Hiwin, Taiwan, good oriented, high precision. Transmission is high precision helical rack and pinion, customized by the specialized manufacturer, surface carburizing quench, stable moving and high precision.

3. Dust proof system on the gantry, effectively prevent the dust going into guide rail and rack during cutting, extend the machine life time, also make machine more beauty,

4. Water table structure( cutting on the front of water), remove the smoke, create a good working environment.

Nesting Software

1. Austria FastCAM automatic programming and nesting software

      2. Auto programming, parts generated and nesting softare professionally drawing and cutting control

With the post processor for graphic transformation and nesting.

3. Realizing the edge-shared nested during cutting, saving time and materials.

Plasma Power Supply

China Yuayuan LGK-120IGBT(120A, cutting ability 0-20mm)

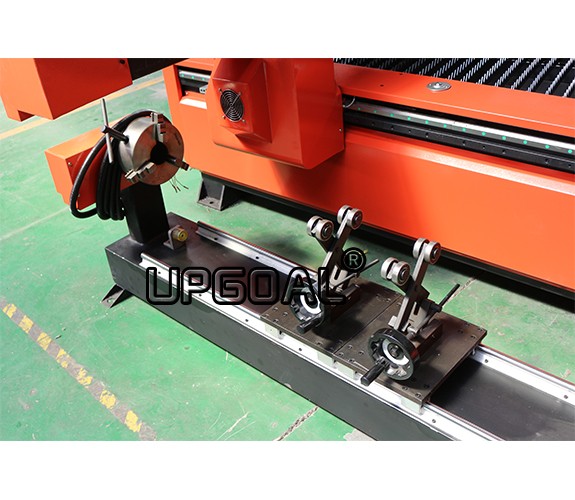

Rotary axis for tube cutting: diameter 200mm, length 3000mm, reduction gear transmission

Cutting width


Cutting length


Rotary axis

diameter 200mm, length 3000mm, reduction gear



Heavy duty strong welded square steel tube structure for whole machine

Control system

STARFIRE( for both plate and tube cutting)

THC( torch height controller)

THC( HYD, China)

Plasma power supply

China Huayuan LGK-120IGBT(120A)

Cutting thickness


Cutting head

Plasma & flame double torch

Traveling speed


Cutting speed

Adjusted according to material’s thickness

Working table

Thickness tooth type cutting blade with water table

Guide rails

Linear square guide rail ( Hiwin, Taiwan, diameter 20mm)


Helical rack and pinion transmission for XY-axis, lead ball screw transmission for Z-axis

Driving system

Stepper motor(86BYGH450A, CW) and

Stepper driver (Yako 2608)

Lubrication system


Positioning system


Anti-collision system


Power supply

AC 380V, 50/60Hz, three phases
