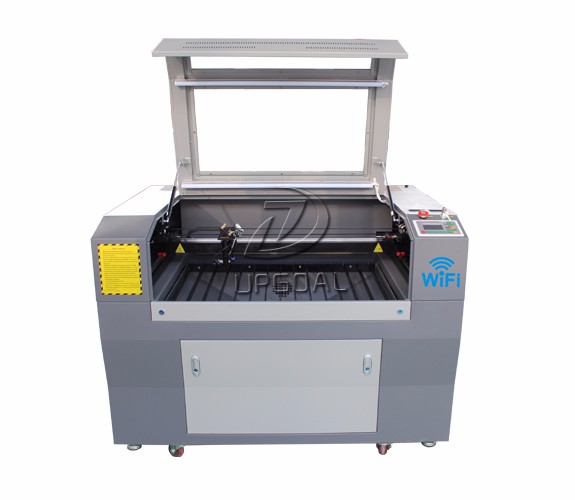

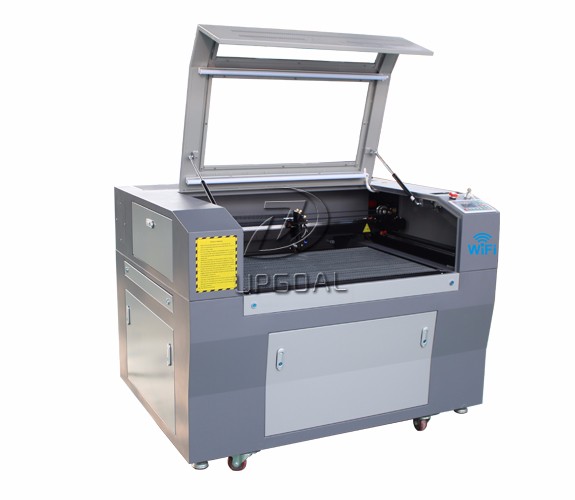

Stone Glass Photo Co2 Laser Machine
Stone Glass Photo Co2 Laser Machine
Glass Photo Engraving CO2 Laser Engraving Machine

Brief Introduction:

Model: UG-9060L
Maximum working area: 900*600mm
For glass photo engraving, surface engraving
RuiDa control system
Supporting WIFI connection

INQUIRY NOW

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc.

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.


Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci S2 ( rated power 90W, maximum power 100W) Co2 laser tube,  long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port RuiDa RDC 6442S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With WIFI connection function, no need to use USB cable, convenient and improving working efficiency.

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5000, ensuring the laser tube long time continues working.


    Effective working area

    900*600mm

    Laser Type

    Co2 sealed-off laser tube

    Laser tube power

    Reci S2( rated power 90W, maximum power 100W)

    Working table

    Honey comb with less knife trip

    Lifting table

    Automatic up and down, 300mm

    Driver mode

    3 phases stepper motor and Driver, Yako brand

    Guide rail

    Linear square guide rail ( Hiwin,Taiwan)

    Transmission

    Belt transmission

    Control panel

    English

    Laser output control

    1-100% software setting

    Engraving speed

    0-60000mm/min

    Cutting speed

    0-10000mm/min

    Control system

    RuiDa RDC6442S

    Control software

    RDWorks V8( no need softdog)

    WIFI connection function

    Design software when delivery

    CorelDraw

    Control panel

    DSP offline

    Resolution accuracy

    < 0.01mm

    Location precision

    < 0.01mm

    Highest scanning accuracy

    2500DPI

    Type of cooling

    Industrial chiller CW-5000 cooling

    Water protection system

    Yes

    Focus

    Auto focus

    Blow-off system

    Air pump for the laser head

    Air blower for the machine

    Working temperature

    0-45 °C

    Operating humidity

    5-95% (without condensed water)

    Supporting picture format

    PLT、DST、DXF、BMP, DWG、AI、LAS,etc

    Voltage

    AC220V +10% 50/60Hz, single phase

    or AC 110V+10% 50/60Hz, single phase

    Certificate

    CE/FDA
