Diameter 3-28mm Tools Universal Sharpener Machine

Brief Introduction:

Model: UG-5C
Universal tools sharpener
For 3-28mm tools sharpenering

INQUIRY NOW

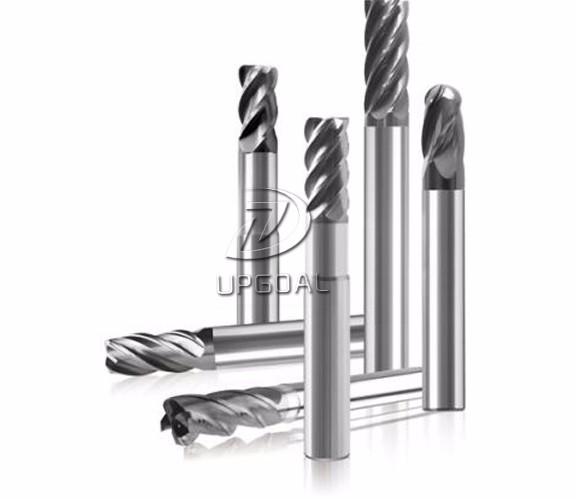

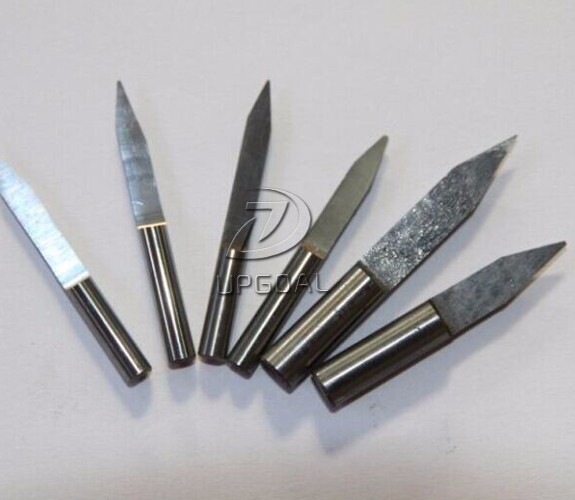

UG serials Universal Tools Sharpener, with development of the carved industry,  precisely designed by engineers. It is made up by main unit, wheel, spindle, drives, micro-feed and the grinding wheel dresser,  knife the composition, structure, novel, modeling beautiful, high precision, good performance, easy to use, easy maintenance, applicable: computer engraving machine, machine engraving machine, engraving machine and high-speed rotary die knife cone head, edge grinding, and milling cutter blade cutting edge, grinding angles accurately. Universal Grinder is equipped with more advanced type of sharpener, my company is quality first, service-oriented for the purpose, sincerely for the majority of mold engraving machine, computer engraving User Services.


    Art.Name

    Specification and TDR

    Wheel

    φ100×φ20×50

    speed of spinde

    5200r/min

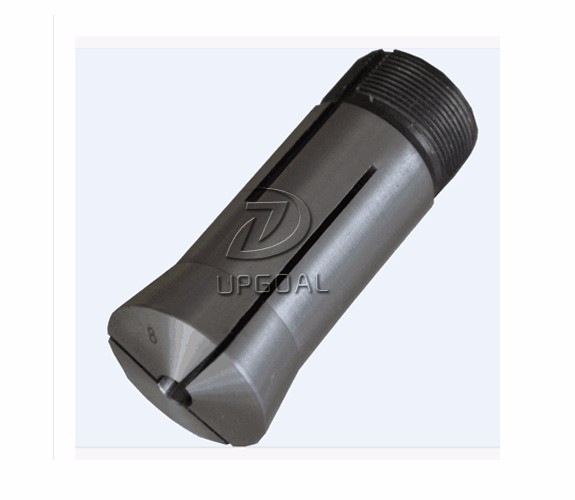

    Max.Collect Dia.

    φ3mm-28mm

    Longitudinal travel of cutter index

    140mm

    Cross travel of cutter index

    18mm

    Longitudinal travel of Spindle

    6mm

    Grinding cone angle range

    0°-180°

    Grinding negative angle range

    0°-52°

    Grinding back angle range

    0°-44°

    Motor

    0.375KW,   AC 220V, 50/60Hz, single phase

    Or  0.25KW,  AC380V, 50/60Hz, three phases


tools sharpener.jpg
