CNC Knife CNC Cutting Machine
CNC Knife CNC Cutting Machine

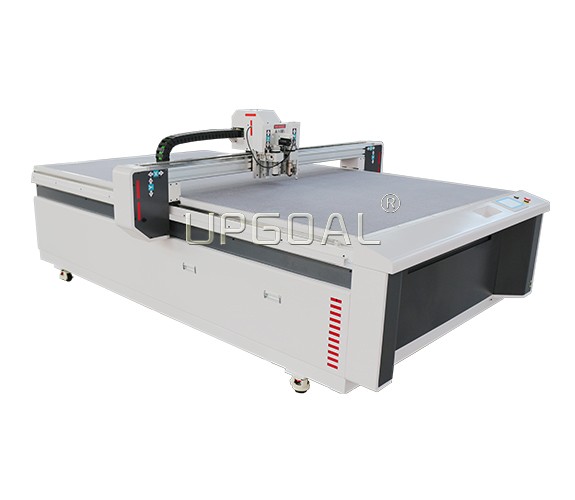

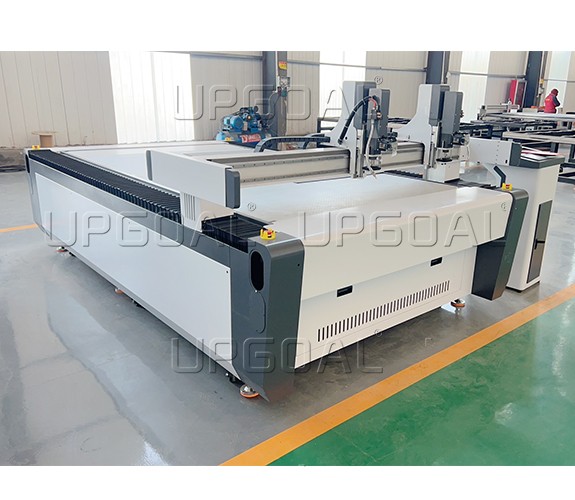

200W PVC Foam Cardboard Oscillating Knife Cutting Machine with Creasing Wheels Mark Pen 1600*2500mm

Brief Introduction:

Model: UG-1625V
1600*250mm
Dual apron

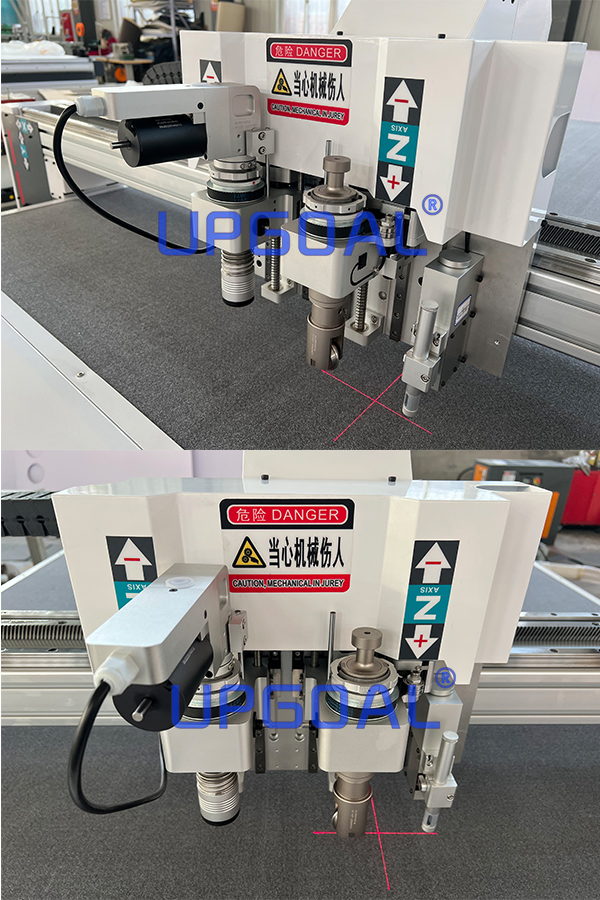

200W oscilalting knife with creasing wheels mark pen
Cast aluminum vacuum table with adsorption felt
RuIDa RDD6584G touch screen controller

INQUIRY NOW

Application

UPGOAL cnc vibration knife cutting machine is widely used in cutting paper materials, automotive interior processing industry, used in the cutting processing of car seat covers, seat cushions, steering wheel grips, leather processing industry, leather cutting and punching, household fabrics, cutting of new technology materials and other industries.

Cutting materials

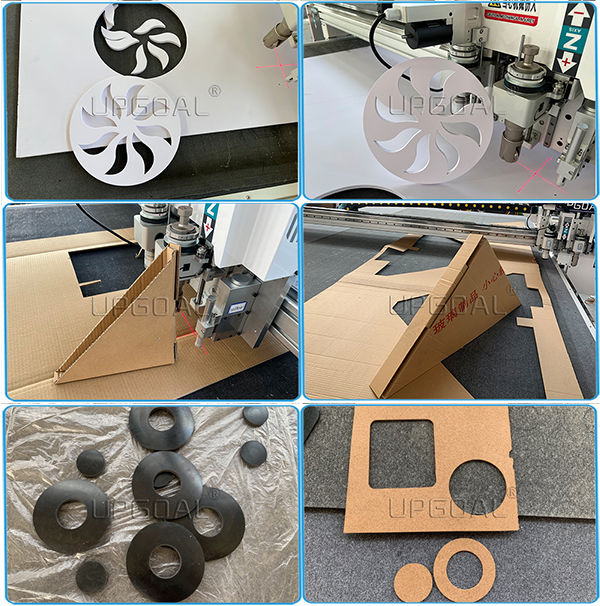

Cardboard, corrugated paper, honeycomb paper, leather, glass fiber, carbon fiber, fabric, self-adhesive, film, foam board, acrylic board, rubber, gasket material, clothing cloth, footwear material, luggage material, non-woven fabric, carpet, Sponge, KT board, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composite materials.


Features

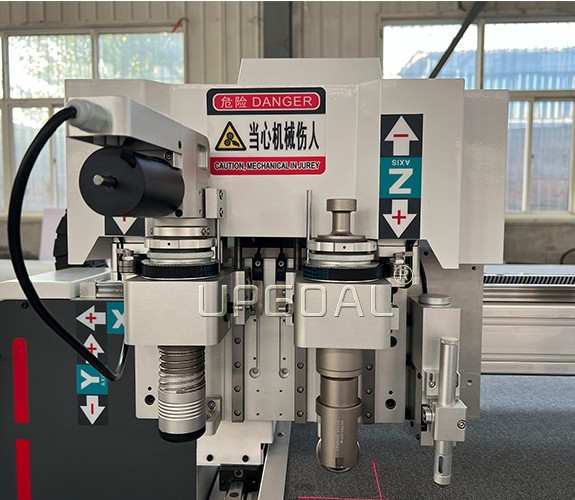

1. With Dual tools apron and 3 knifes: oscillating knife & creasing wheels & mark pen

2. The ultra-high frequency 200W vibration knife cutting technology eliminates the irregularities of manual cutting, the limitation of the accuracy of the punching machine, and the scorching odor of the laser cutting machine. High efficiency and fast speed make leather and PU cutting become artistic enjoyment.

3. With Creasing wheels,rolling over the material by a circular wheel creates an indentation effect on the material,and with wheels of different specifications, different indentation effects can be achieved. Advantage: can change the wheels fast.

4. With Mark pen: The system drives the pen tool to move, which can mark, write text and draw graphics on the material. Markable Materials: Most Materials.

5. Imported original PMI, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt WMH brand, Herion helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, and more durable.

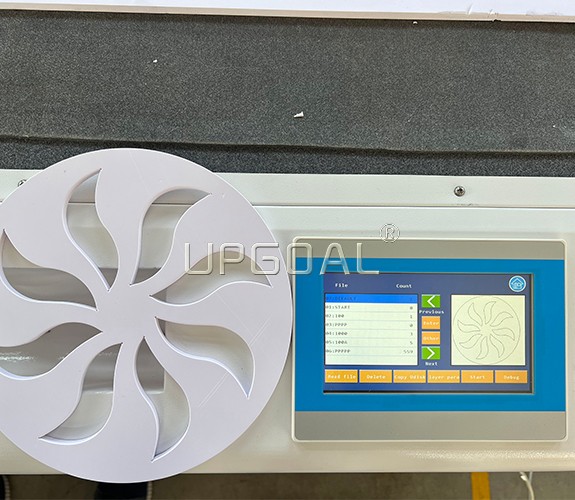

6. Adopted famous RuiDa RDD6584G touch screen control system supports both USB and Ethernet connection, has a knife cutting controller with tool direction following control function. It integrates the processing of tools such as vibrating cutters, round cutters, milling cutters, and pressing wheels. It also integrates feeding, circular punching, and V-shaped special punching. Hole, pen processing, red light positioning and a series of functions.

7. Whole cast aluminum vacuum table with imported felt, ensuring the machine stablity.

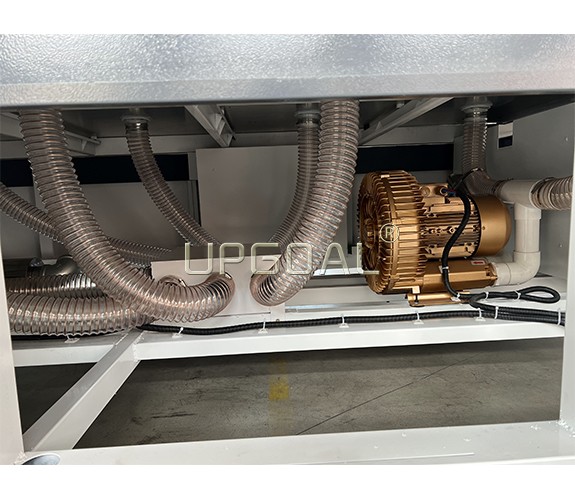

8. Equipped with 2 sets 7.5KW+3.0KW high pressure air cooling turbofan, high adsorption ability.

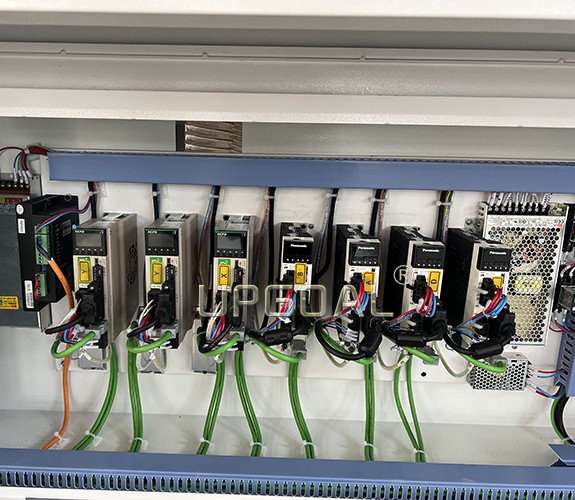

9.China HCFA 750W servo motor  driver for XYZ-axis and  400W 100W Panasonic Japan servo motor driver for BADC-axis,, ensuring the processing speed & precision.

10. Buil-in control cabinet, save space.

11. Anti-collisiion device, ensuring the safe operation.

12. Semi-auto lubrication system more convenient for maintenance.

13.The cutting efficiency is high, the surface is smooth and flat, which greatly saves costs

14. A variety of tool heads(Vibrating knife, high-power round knife, punching knife, pneumatic knife, multi-layer knife, drag knife, half cutter, bevel cutter, milling cutter, etc. all can be installed), quick replacement to adapt to different materials

15.Convenient output, high-speed cutting, rapid prototyping, intelligent typesetting, saving materials

16.Supports multiple formats such as DXF, PLT, HPGl, etc., without cutting tools, saving manpower and material resources, and simplifying the work process.

17. Improve the cutting speed and efficiency, and provide strong support for high-speed cutting of the electric vibrating knife with a frequency of up to 25,000 times/min, up to 1000mm/s.

18. Smooth operation, fine and smooth incision, powerful function, can effectively solve various problems such as proofing.


Model

UG-1625V

Effective cutting area

1600*2500mm

Working table

Fixed aluminum adsorption vacuum working table with adsorption felt

Material fixed method

Vacuum suction system

Tools apronDual

Cutting head

Vibration knife 200W and creasing wheels & mark pen

Control system

RuiDa RDD6584G(EC) touch screen control system

Cutting software

RuiDa VcutWorks( supports WLAN cable & USB cable)

Cutting speed

0-1,500mm/s(according to different cutting materials)

Cutting thickness

≤40mm

Cutting accuracy

≤0.1mm

Drive system

China HCFA 750W servo motor  driver for XYZ-axis and

400W 100W Panasonic Japan servo motor driver for DC- axis

Guide rail

PMI, Taiwan, linear square guide rail

Transmission system

Helical rack and pinion transmission (WMH brand, Herion)

Vacuum pump

Air cooling, 2 sets, 7.5KW+3.0KW

Safety device

Anti-collision system

Graphic format supported

PLT, DXF, AI, etc.

Compatible

CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc.

Voltage

AC220V ±10%,50/60Hz, single phase or

AC380V ±10%,50/60Hz, three phases

Machine size

3400*2340*1350mm

Net weight

800kgs

Gross weight

900kgs
